AP-RRU1ATX308S62 300W IEC 62368-1 Compliance Certified 1U Redundant with Active PFC, Hot-Swap Power Supply
Limited time offer, ends 01/10 By ACPC
- Max. output 300W combined.
- Active PFC.
- Hot-Swap function.
- Operation Temperature range: -5°C ~ +50°C @ full load.
- Power Supply Management Controller (PSMC) for Smart Monitoring and control of the power supply.
- i2c-Bus compliant communication bus (SDA, SCL) at 100kHz.
- Protections: OCP, OVP, OPP, UVP, OTP, SCP, FFP.
- 62368-1 Safety Compliance: BSMI, CB, CE, CCC, cUL, UL, TÜV.
- Environmental Compliance: ROHS, WEEE, REACH.
- Power supply efficiency meets 80 Plus standard.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

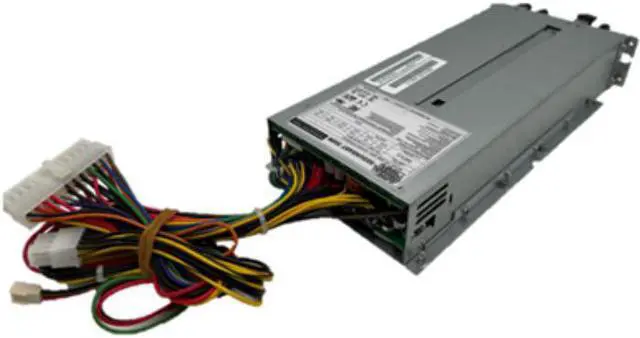

AP-RRU1ATX308S62 is a 300W AC-DC switching power supply.
It shall be able to operate with a single power supply module, or in a N+1 parallel hot-plug able operation with active load sharing
in a N+1 redundant configuration.
Max. output 300W combined.
Meet class B EMI compliance in chassis.
Traditional and green redundant support.
Hot-Swap function support for the power modules.
Passive cooled with PWM FAN of power modules.
Operation Temperature range: -5°C ~ 50°C @ full load.
Power Supply Management Controller (PSMC) for Smart Monitoring and control of the power supply.
EEPROM for FRU information.
i2c-Bus compliant communication bus (SDA, SCL) at 100kHz.
PS_Alert# , PWOK#, Buzzer signaling.
Protections: OCP, OVP, OPP, UVP, OTP, SCP, FFP.
+5V and +3.3V Power reach to 103W Max.
62368-1 Safety Compliance: BSMI, CB, CE, CCC, cUL, UL, TÜV.
Environmental Compliance: ROHS, WEEE, REACH.

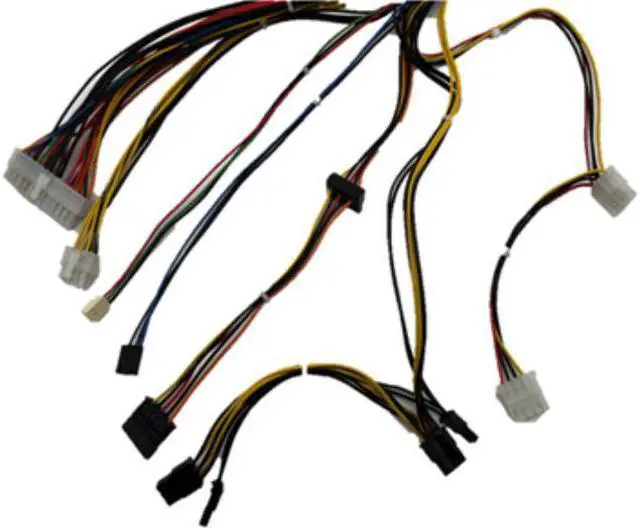

Connectors:
ATX Connector 24 (20+4) Pin x 1
EPS 12V 8 Pin x 1
PCIE 6+2 Pin x 2
SATA 15 Pin x 2
Molex 4 Pin x 2
It shall be able to operate with a single power supply module, or in a N+1 parallel hot-plug able operation with active load sharing
in a N+1 redundant configuration.
Max. output 300W combined.
Meet class B EMI compliance in chassis.
Traditional and green redundant support.
Hot-Swap function support for the power modules.
Passive cooled with PWM FAN of power modules.
Operation Temperature range: -5°C ~ 50°C @ full load.
Power Supply Management Controller (PSMC) for Smart Monitoring and control of the power supply.
EEPROM for FRU information.
i2c-Bus compliant communication bus (SDA, SCL) at 100kHz.
PS_Alert# , PWOK#, Buzzer signaling.
Protections: OCP, OVP, OPP, UVP, OTP, SCP, FFP.
+5V and +3.3V Power reach to 103W Max.
62368-1 Safety Compliance: BSMI, CB, CE, CCC, cUL, UL, TÜV.
Environmental Compliance: ROHS, WEEE, REACH.
Connectors:
ATX Connector 24 (20+4) Pin x 1
EPS 12V 8 Pin x 1
PCIE 6+2 Pin x 2
SATA 15 Pin x 2
Molex 4 Pin x 2
