Question 1

does this power supply have a 8-pin supplemental motherboard plug or 4-pin? i already know about the 24-pin but please do answer thanks

Accepted Answer

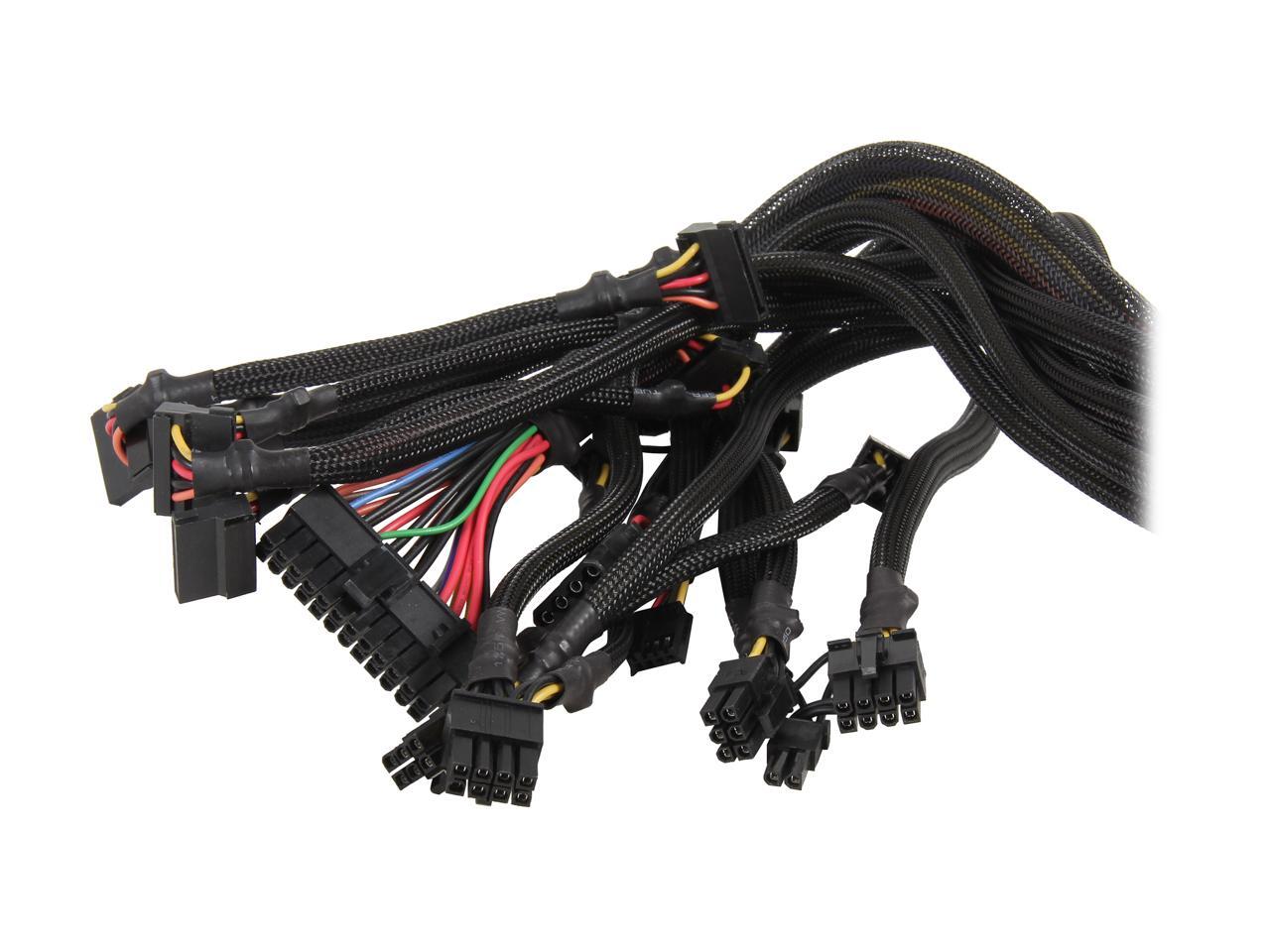

Hi it's john Sandra is my wife's name anyhow the main connector is a 20 pin the 4 pin is snapped on  it I can be snapped off for a seperate 4 pin connector there are additional connectors  such as the another 4 pin as well as an 8 pin here is a list of:
ATX Connector    24 (20+4) Pin
P4-12V                  4 Pin
EPS 12V               8 Pin (P4 x 2)
PCIE                     6 Pin
PCIE                     6+2 Pin
SATA                   15 Pin
Molex                    4 Pin
Floppy                   4 Pin

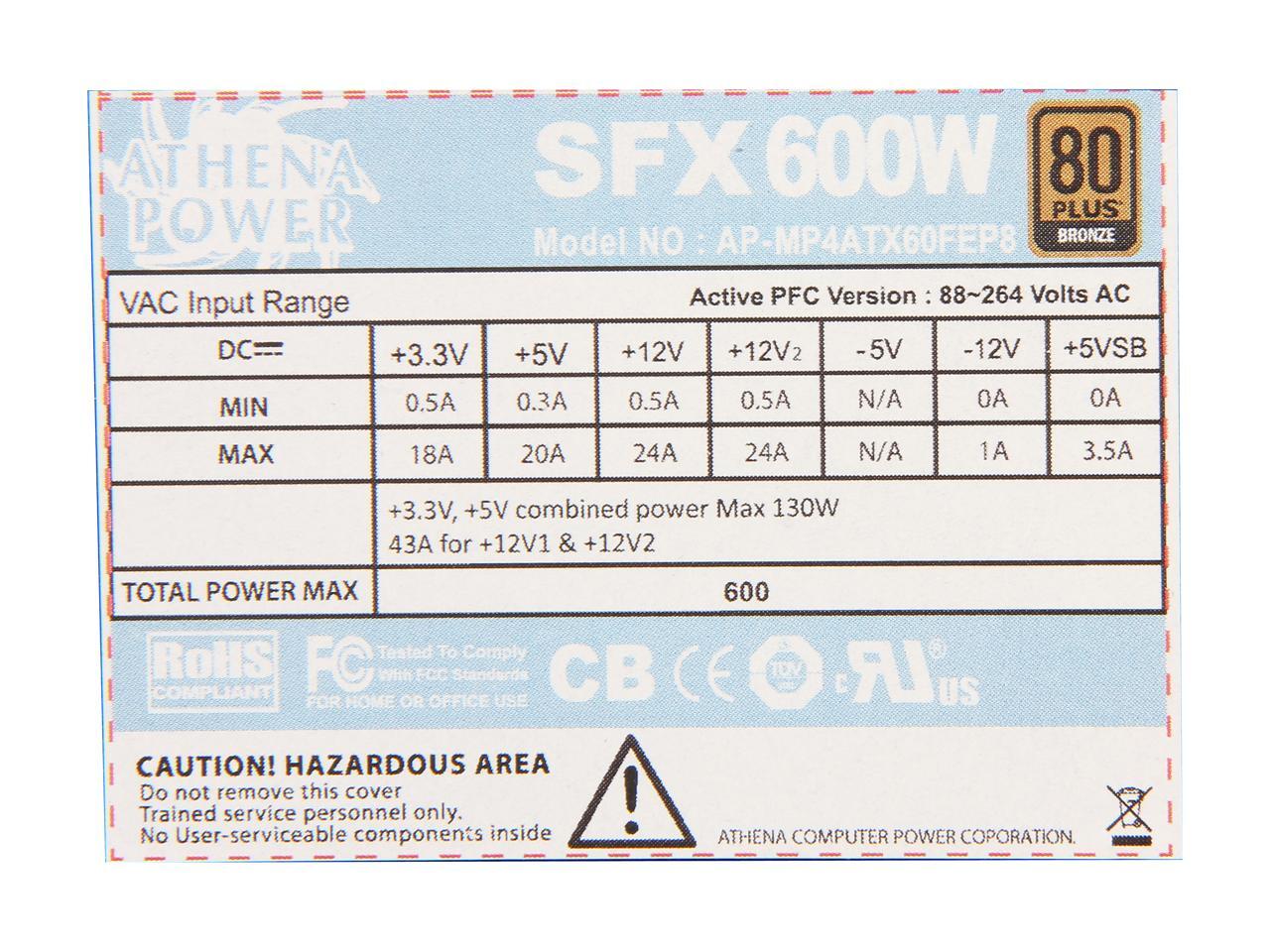

Hope that helps by the way here are the specifications for the power supply from the manufacture /product/power-supply/micro-sfx/ap-mp4atx60fep8?quicktabs_1=1#quicktabs-1

Sorry if the link does not work sending from my iPhone just put http:/ then Athena power in front of the link then it should take you right to it newegg will not allow a link to be posted to other websites for whatever reason

Question 2

Does this fit into Standard ATX PSU mounting points? Bracket included?

Accepted Answer

i am pretty sure the answer is no.  the unit is only 3 inches high.

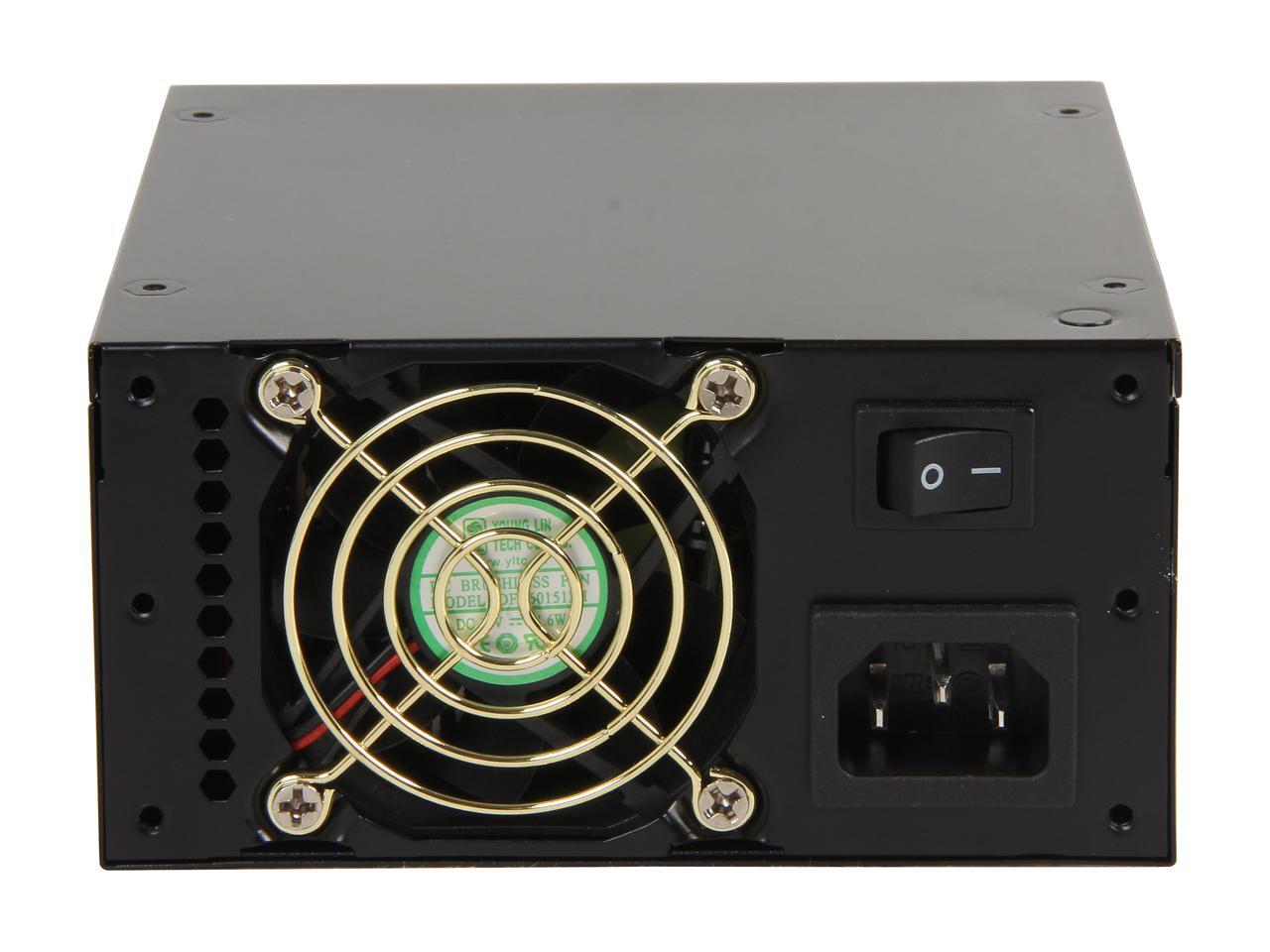

most psu's secure from screws into the back of the unit near the fan and the height is 1.5 inches shorter than most.   That is the reason I bought it for my custom built case

Question 3

will this fit in the SilverStone RAVEN Series RVZ01B?

Accepted Answer

I have not tested it myself but the RVZ01B is advertised as supporting micro SFX supplies. If I were to make an assumption from the specifications listed then I would say yes it would fit.

Question 4

Can this be used to replace the psu inside of the asrock m8 z87 case?

Accepted Answer

I would guess, probably not, but it would be worth asking ASRock. The fact that they include the pwr supply w/the case and it is a miniITX case at that would make me suspicious about it fitting.

Sorry I couldn't be more help.

Question 5

Hello, I was wondering if this PSU is Haswell ready/compliant/certified or if anyone knows?  I hope so, I already bought it from newegg and come to find out later that Haswell CPUs have to have supported power supplies.  Help please!

Accepted Answer

Yes,
I'm using it with a MSI Z87I Mini-ITX MB with a i5-4670K processor.
Works fine..

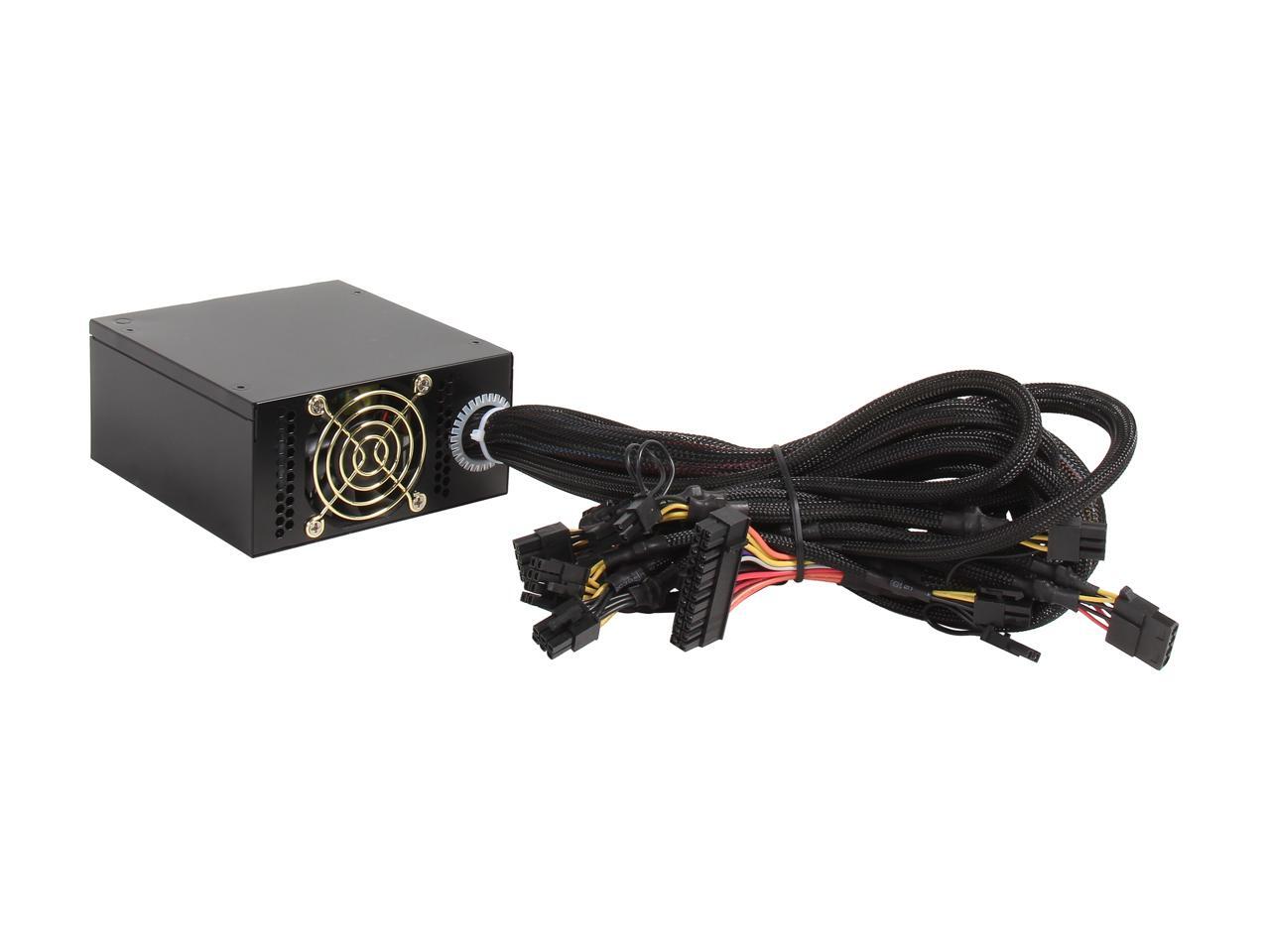

My only beef would be that this power supplies cables are way too long! If someone's buying a small form-factory power supply one would think they are putting in a small form-factor case. So why have cables that are approx. 18" in length?

Question 6

Hey, I've purchased the SST-SG05BB-450 from Newegg and want to upgrade the PS to add R9 290 card, but I'm wondering if the dimensions of this power supply will fit into my SUGO case?

Accepted Answer

I have the Sugo SG06 and tried this PSU in it (I believe most of the Sugos have the same chasis but different front panels so your experience should match mine).  It *could* work but it will be very cramped inside.  The mounting holes line up fine but this unit is longer than the one that comes with the Silverstone case, so you will not be able to use the bracket that houses the optical disk/hard drive with this PSU installed.  You could just place your hard drive on the bottom of the case by the motherboard and skip using an optical drive altogether but the trade-off wasn't worth it to me.  Also, the cables run very long so cable management could be an issue.  Good luck!
