Athena Power Zippy M1K2-5A00V4H 1000W 1U Redundant IPC/Server Power Supply - OEM
- 1000W Redundant

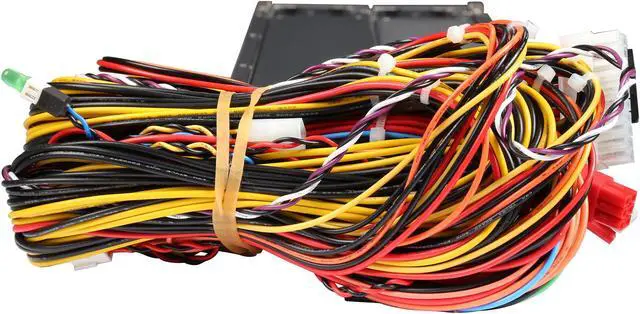

- ATX Connector 24 (20+4) pin x 1 P4-12V 4 Pin x 1 EPS 12V 8 Pin x 2 PCIE 6+2 Pin x 2 SATA 15 Pin x 3 Molex 4 Pin x 3
+
+
Learn more about the Athena Power M1K2-5A00V4H
| Brand | Athena Power |
|---|---|
| Model | M1K2-5A00V4H |
| Single/Redundant | Redundant |
|---|---|
| Form Factor | 1U Rackmount / Redundant PSU |
| Maximum Power | 1000W |
| Main Connector | ATX Connector 24 (20+4) pin x 1 P4-12V 4 Pin x 1 EPS 12V 8 Pin x 2 PCIE 6+2 Pin x 2 SATA 15 Pin x 3 Molex 4 Pin x 3 |
| Output Current | +3.3V@22A, +5V@22A,+12V@83A, +5Vsb@3A, [email protected] |
| Input Voltage | 88 - 264 V |
| Input Frequency Range | 47 - 63 Hz |
| MTBF | 100,000 Hours on Maximum Load at +25 degree C |
| Hold-up Time | 10 ms Minimum at Nominal Input Voltage |
| Features | Rise time: Less than 20 ms |
|---|
| Dimensions | 1.63" x 4.17" x 15.75" |
|---|---|
| Weight | 10.00 lbs. |
| Temperature | Operating: 0 degree C ~ +50 degree C on Full Load; Storage & Shipping: -20 degree C ~ +80 degree C |
|---|
| First Listed on Newegg | September 28, 2015 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Return Policies
- Return for refund until: January 31, 2027
- Return for replacement until: January 31, 2027
- This item is covered by Newegg.com's Extended Holiday Return Policy.
- Read full return policy for details.
We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 626-810-5008 x 106
- Support Email: service@athenapower.us
- Support Website
- View other products from Athena Power
LOADING...
LOADING...

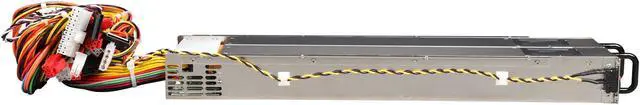

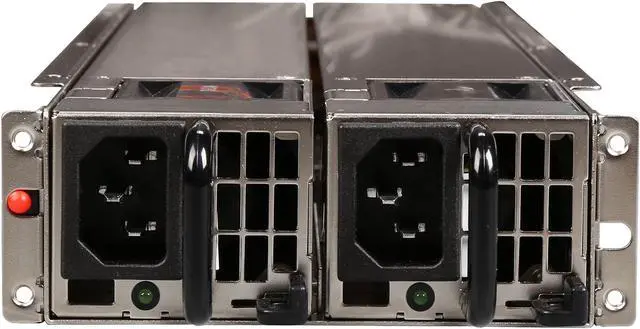

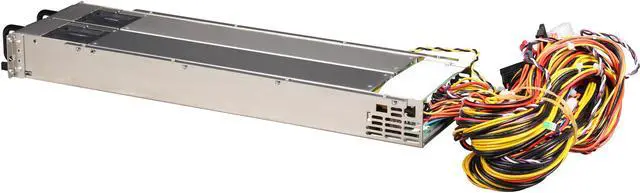

The Athena Power Zippy M1K2-5A00V4H is a 1000W redundant 1U rackmount power supply for IPC and server systems designed for a compatible redundant PSU. It provides ATX, dual EPS 8-pin, PCIe 6+2-pin, SATA, and Molex connections.
Recommended For
- Operators building a 1U rack server or IPC system who need a 1+1 redundant power system and have a chassis designed for this PSU’s matching frame and modules.
- Server, storage, or workstation integrators fitting a 1000W redundant supply into a compatible 1U rack system, where space and power continuity matter more than standard desktop-PSU convenience.
- IT administrators whose compatible server platform can use PMBus 1.2 features for power-supply monitoring or management.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | 1U rackmount server and IPC systems requiring a redundant 1000W power supply |
| Power Output | 1000W maximum, with +3.3V at 22A, +5V at 22A, +12V at 83A, +5Vsb at 3A, and -12V at 0.5A |
| Input Power | 88–264V input with a 47–63Hz frequency range |
| Connectors | 24-pin ATX (20+4) ×1, 4-pin P4-12V ×1, 8-pin EPS 12V ×2, 6+2-pin PCIe ×2, 15-pin SATA ×3, and 4-pin Molex ×3 |
| Operating And Storage Temperatures | Full-load operation from 0°C to +50°C; storage and shipping from -20°C to +80°C |
| Reliability And Timing | 100,000-hour MTBF at maximum load and +25°C; minimum 10ms hold-up time at nominal input voltage; rise time under 20ms |
| Dimensions And Weight | 1.63 × 4.17 × 15.75 inches; 10 lb |
| Model Identifiers | Athena Power M1K2-5A00V4H |
