Athena Power Zippy P2G-5650V 650W Single 2U Server Power Supply - OEM
- 650W Single
- One 60 mm DC Fan Fans
+
+
Overview
Specs
Reviews
See all Q & A
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Unleash the power of the ancient Greeks with the Athena Power 650W power supply. This 2U single unit pulls out all the power you need. It is the best solution for servers, workstations, storage systems and IPC. (The power-supply is for chassis-assembly only and is not allowed to be operated as stand-alone component. Final assembly has to comply with corresponding emc- and safety-regulations.)
Unleash the power of the ancient Greeks with the Athena Power 650W power supply. This 2U single unit pulls out all the power you need. It is the best solution for servers, workstations, storage systems and IPC. (The power-supply is for chassis-assembly only and is not allowed to be operated as stand-alone component. Final assembly has to comply with corresponding emc- and safety-regulations.)
650W PowerA maximum power of 650W, including +12V at max 50A, delivers safe, reliable output for server systems.
Highly EfficientDelivering over 80-84% efficiency typical at 115v, full load, the Athena Power Zippy P2G-5650V power supply saves energy and may even reduce your electric bill!
Versatile ProtectionThe Athena Power Zippy P2G-5650V features over power protection, over voltage protection and short circuit protection.
650W PowerA maximum power of 650W, including +12V at max 50A, delivers safe, reliable output for server systems.
Highly EfficientDelivering over 80-84% efficiency typical at 115v, full load, the Athena Power Zippy P2G-5650V power supply saves energy and may even reduce your electric bill!
Versatile ProtectionThe Athena Power Zippy P2G-5650V features over power protection, over voltage protection and short circuit protection.Warranty & Returns
Warranty, Returns, And Additional Information
Return Policies
- Return for refund until: January 31, 2027
- Return for replacement until: January 31, 2027
- This item is covered by Newegg.com's Extended Holiday Return Policy.
- Read full return policy for details.
We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 626-810-5008 x 106
- Support Email: service@athenapower.us
- Support Website
- View other products from Athena Power
LOADING...
LOADING...
The Athena Power Zippy P2G-5650V is a 650W single power supply for 2U rackmount servers, suited to systems designed for a single PSU and needing up to 50A on the +12V rail.
Recommended For
- Builders assembling a compatible 2U rack server who need a single 650W power supply for the system.
- System integrators building 2U workstations, storage systems, or industrial PCs in a compatible chassis.
- Homelab and small-server builders who want a rack-installed 2U supply and do not require redundant power.
- Repair or upgrade technicians replacing a failed 2U single PSU, provided the chassis fit, connectors, and power requirements match.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Single 2U rackmount power supply for server systems |

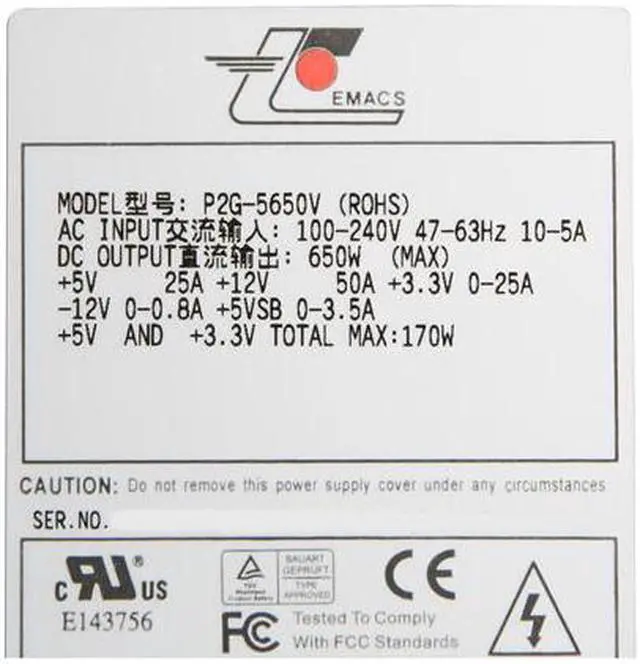

| Power Output And Rails | 650W maximum output with +5V at 25A, +12V at 50A, +3.3V at 25A, -12V at 0.8A, and +5VSB at 3.5A |

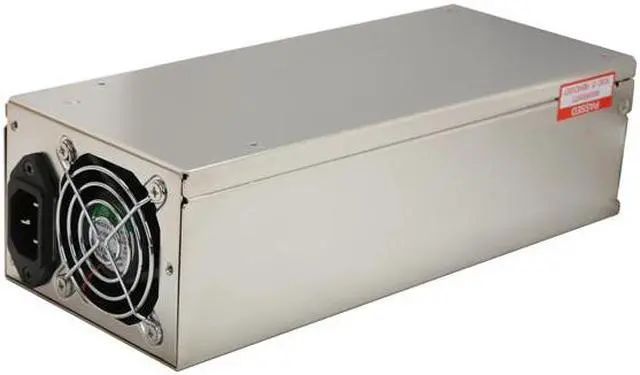

| Form Factor And Cooling | Single 2U rackmount design with one 60 mm DC fan |
| Input And Efficiency | Accepts 90–264V AC at 47–63 Hz; typical efficiency is 80–84% at 115V and full load, with a minimum 16 ms hold-up time at full load and normal input voltage |
| Protection And Operating Conditions | Over-power, over-voltage, and short-circuit protection; operating temperature range of 0–50°C |
| Dimensions | 9.45 × 3.94 × 2.76 in |
| Model Identifiers | Athena Power Zippy P2G-5650V |
