Athena Power Zippy P2H-5400V 400W 2U Single IPC/Server Power Supply - 80Plus Standard - OEM
- 400W Single
- ATX Connector 24 (20+4) pin x 1 P4-12V 4 Pin x 1 EPS 12V 8 Pin x 2 SATA 15 Pin x 3 Molex 4 Pin x 3 Floppy 4Pin x 2
+
+
Learn more about the Athena Power P2H-5400V
| Brand | Athena Power |
|---|---|
| Model | P2H-5400V |
| Single/Redundant | Single |
|---|---|
| Form Factor | 2U Rackmount |
| Maximum Power | 400W |
| Energy-Efficient | 80 PLUS Certified |
| Main Connector | ATX Connector 24 (20+4) pin x 1 P4-12V 4 Pin x 1 EPS 12V 8 Pin x 2 SATA 15 Pin x 3 Molex 4 Pin x 3 Floppy 4Pin x 2 |
| Output Current | +3.3V@22A, +5V@22A,+12V@32A, [email protected], [email protected] |
| Input Voltage | 88 - 264 V |
| Input Frequency Range | 47 - 63 Hz |
| MTBF | 100,000 Hours on Maximum Load at +25 degree C |
| Hold-up Time | 17 ms Minimum at Nominal Input Voltage |
| Features | Rise time: Less than 20 ms |
|---|

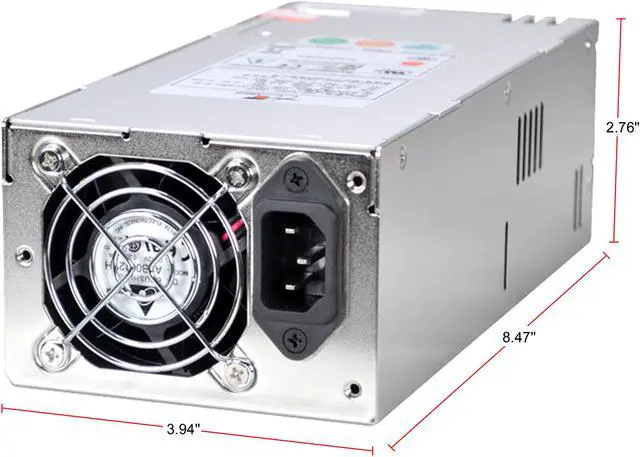

| Dimensions | 2.76" x 3.94" x 8.47" |
|---|---|
| Weight | 5.00 lbs. |
| Temperature | Operating: 0 degree C ~ +50 degree C on Full Load; Storage & Shipping: -20 degree C ~ +80 degree C |
|---|
| First Listed on Newegg | September 03, 2015 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Return Policies
- Return for refund until: January 31, 2027
- Return for replacement until: January 31, 2027
- This item is covered by Newegg.com's Extended Holiday Return Policy.
- Read full return policy for details.
We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 626-810-5008 x 106
- Support Email: service@athenapower.us
- Support Website
- View other products from Athena Power
LOADING...
LOADING...
The Athena Power Zippy P2H-5400V is a 400W, single 2U rackmount power supply for compact IPC and server builds that need standard ATX, EPS, SATA, Molex, and floppy power connections.
Recommended For
- Builders replacing a failed supply in a compatible 2U rackmount server or IPC chassis; the P2H-5400V is a 2U single-supply model.
- Server or appliance builders whose compatible system needs up to 400W from one PSU, rather than a redundant power-supply setup.
- System integrators using server motherboards that need EPS 12V connections; the Newegg listing specifies two 8-pin EPS connectors.
- Industrial or server builders who need an AC-input supply for equipment operating across a broad input-voltage range; Athena Power lists 88–264V AC.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Single 400W power supply for 2U rackmount IPC and server builds |
| Power And Efficiency | 400W maximum output with 80 PLUS certification |
| Configuration And Form Factor | Single, 2U rackmount design |
| Power Connectors | ATX 24-pin (20+4) ×1, P4-12V 4-pin ×1, EPS 12V 8-pin ×2, SATA 15-pin ×3, Molex 4-pin ×3, and floppy 4-pin ×2 |
| Electrical Input, Output And Timing | Input: 88–264 V at 47–63 Hz; output rails: +3.3V@22A, +5V@22A, +12V@32A, [email protected], and −[email protected]; minimum 17 ms hold-up at nominal input and rise time under 20 ms |
| Reliability And Operating Conditions | MTBF of 100,000 hours at maximum load and +25°C; full-load operating range 0°C to +50°C; storage and shipping range −20°C to +80°C |
| Dimensions And Weight | 2.76 × 3.94 × 8.47 in; 5.00 lb |
| Model Identifiers | Athena Power P2H-5400V |
