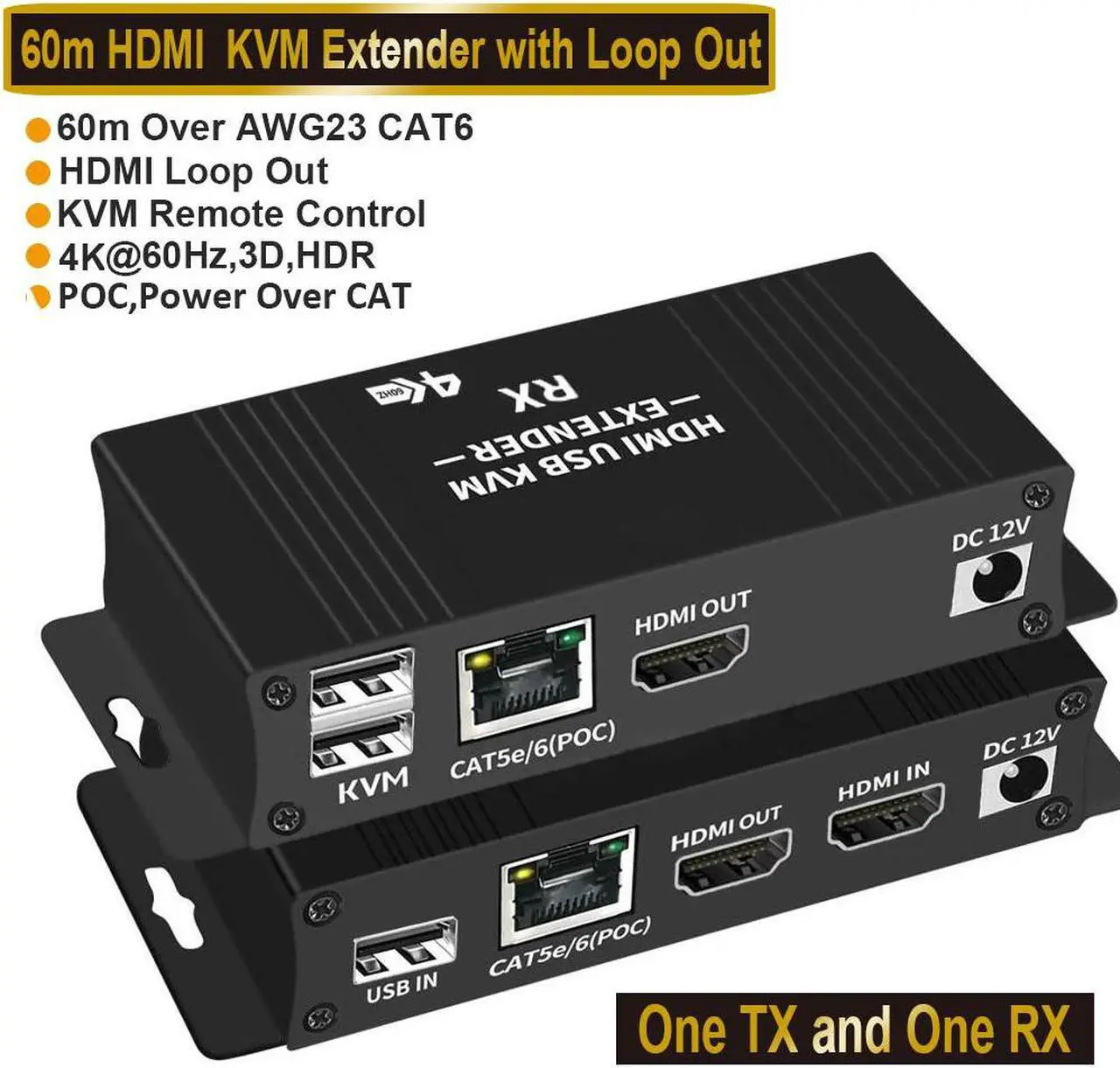

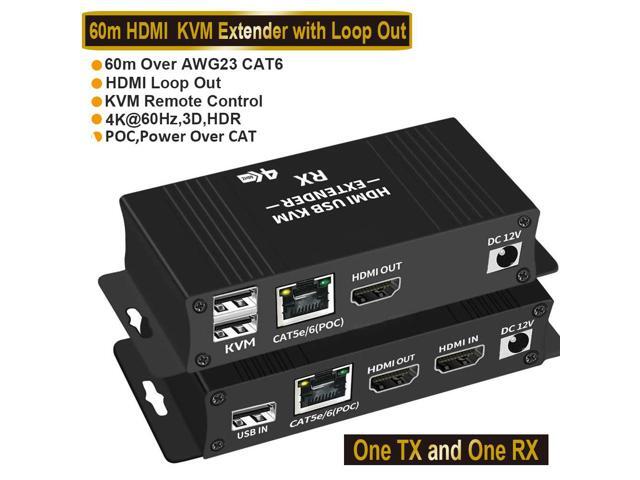

4K 60Hz HDMI KVM Extender RJ45 HDMI USB Extender
Description:
4K@60Hz HDMI KVM extender provides extension of HDMI signals long distances over a single CAT5e/6 cable, it supports high resolution up to 3840x2160@60Hz, POC,HDMI loop out and KVM Remote control. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Package:

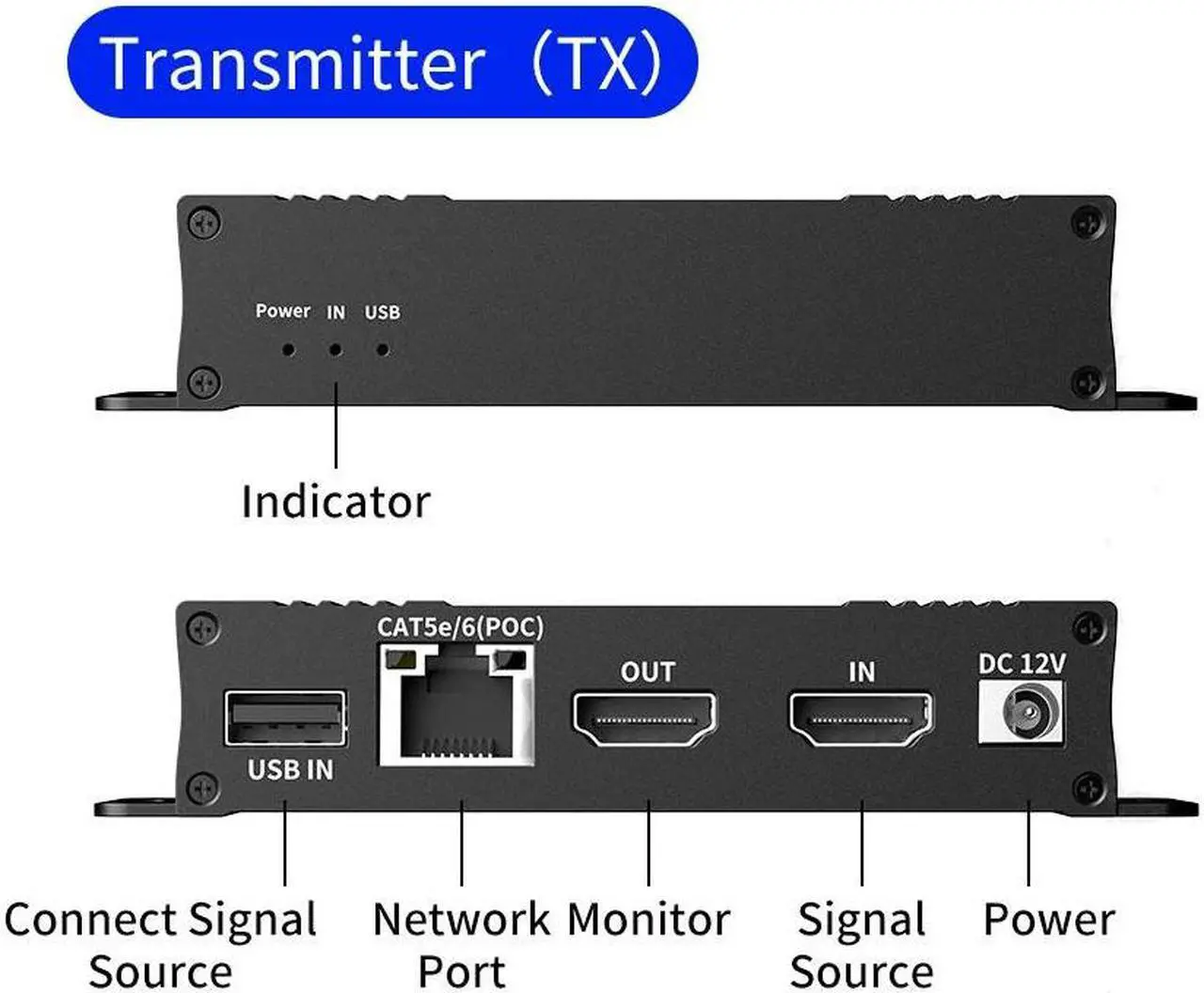

- 4K HDMI KVM extender transmitter: 1 pcs

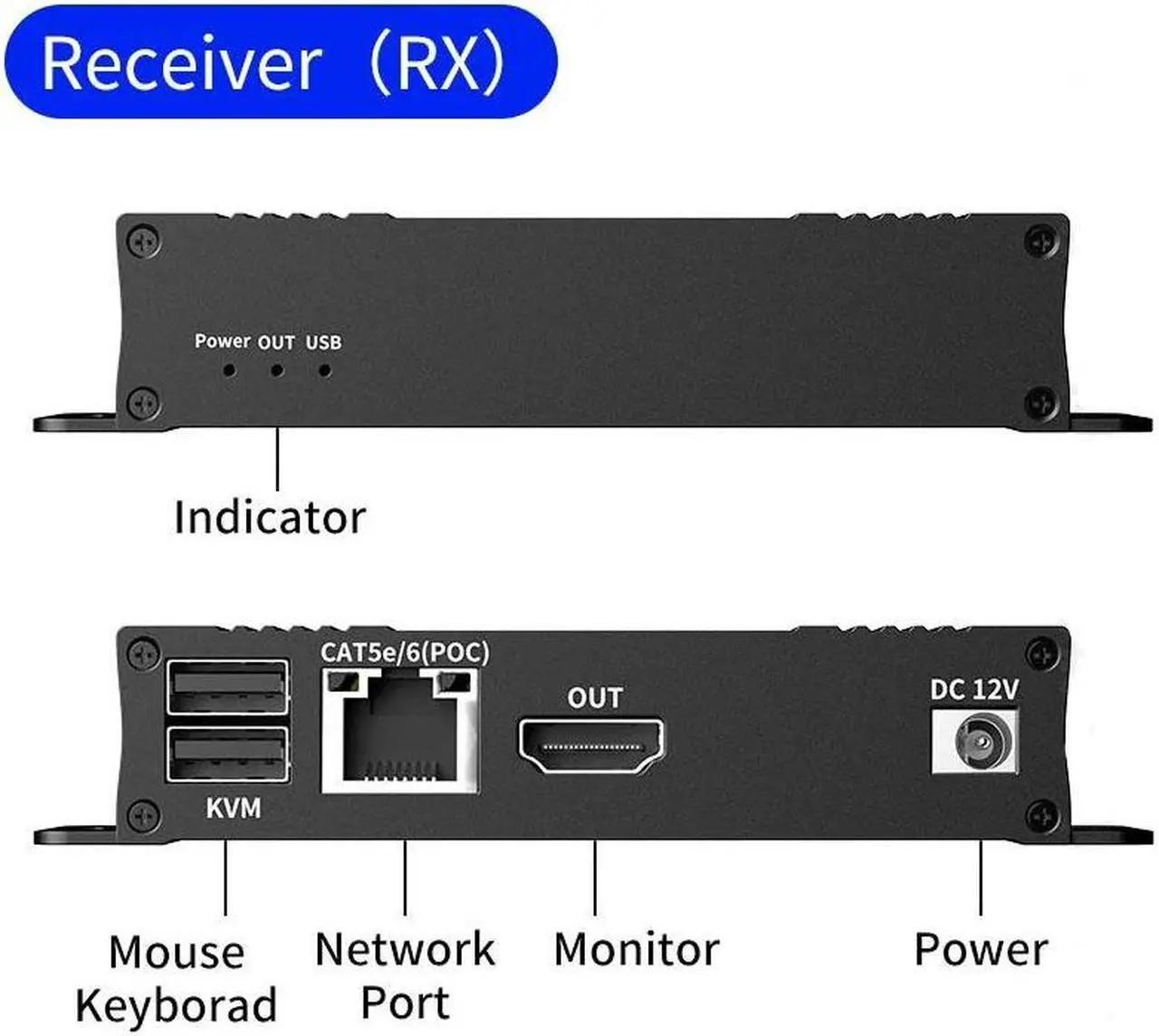

- 4K HDMI KVM extender receiver: 1 pcs
- Power adapter: 1pcs
- User manual: 1 pcs
Features:
- Long range transmission:up to 60m/196ft over a single AWG23 CAT6 cable;
- Video resolution:Up to 576P,720P,1920x1080P@60Hz,3840x2160@60Hz;
- HDR 10+,3D,Dolby Vision,Dolby ATMOS,Deep Color:8/10/12/24 Bit;
- Audio format:LPCM2/5.1/7.1,Dolby Digital,DTS 5.1,Dolby Digital+ ;

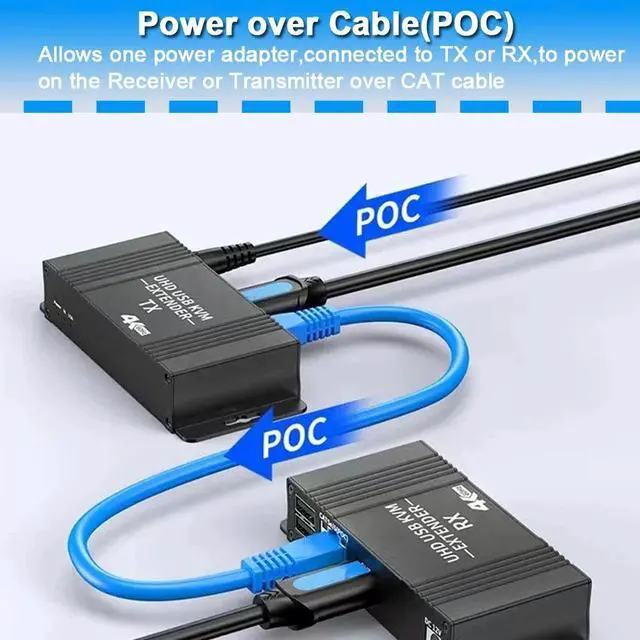

- POC function:Power over CAT cable,only need one power adapter;

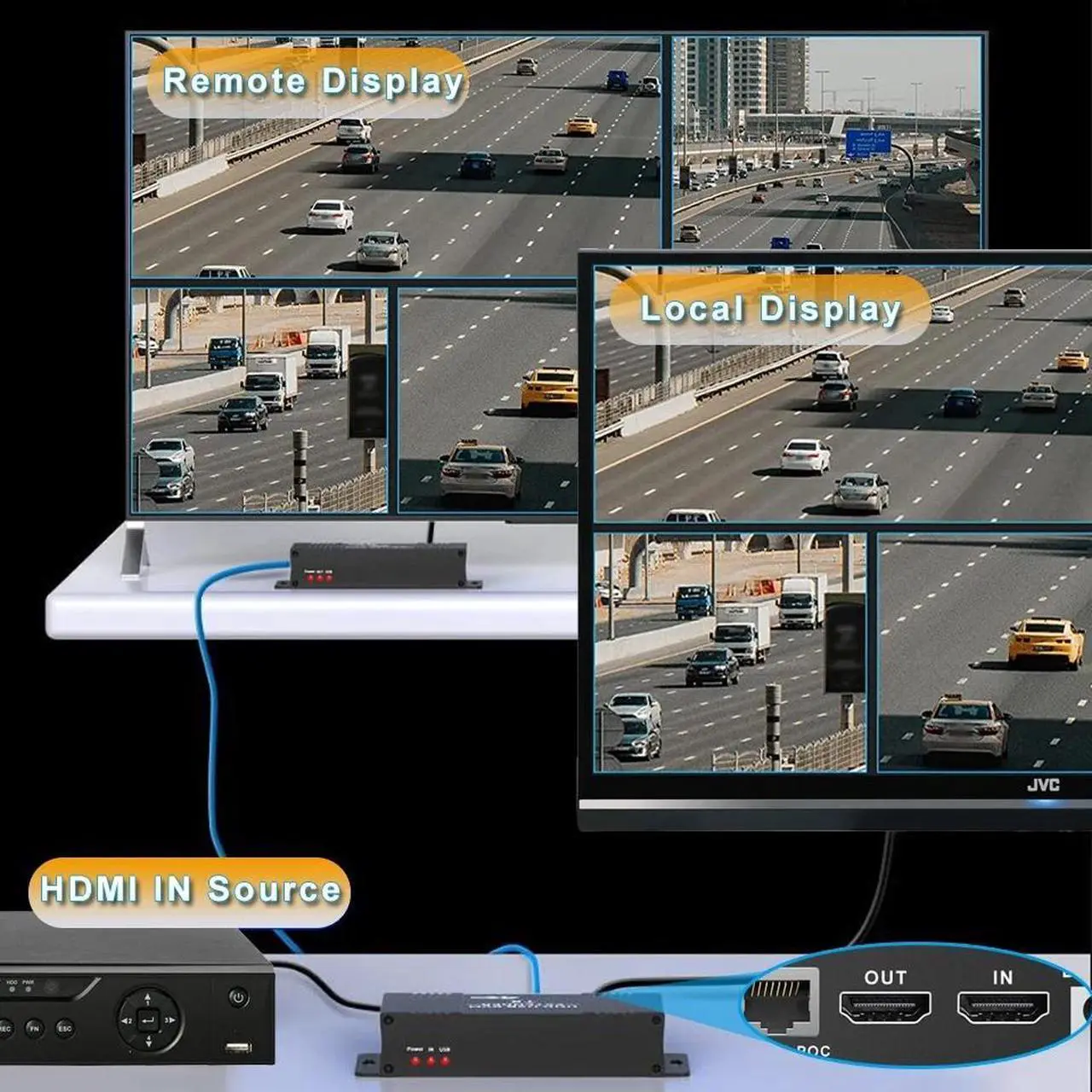

- HDMI loop out function:The transmitter with one HDMI local loop out;
- Uncompressed mode:ZERO Delay,No loss;

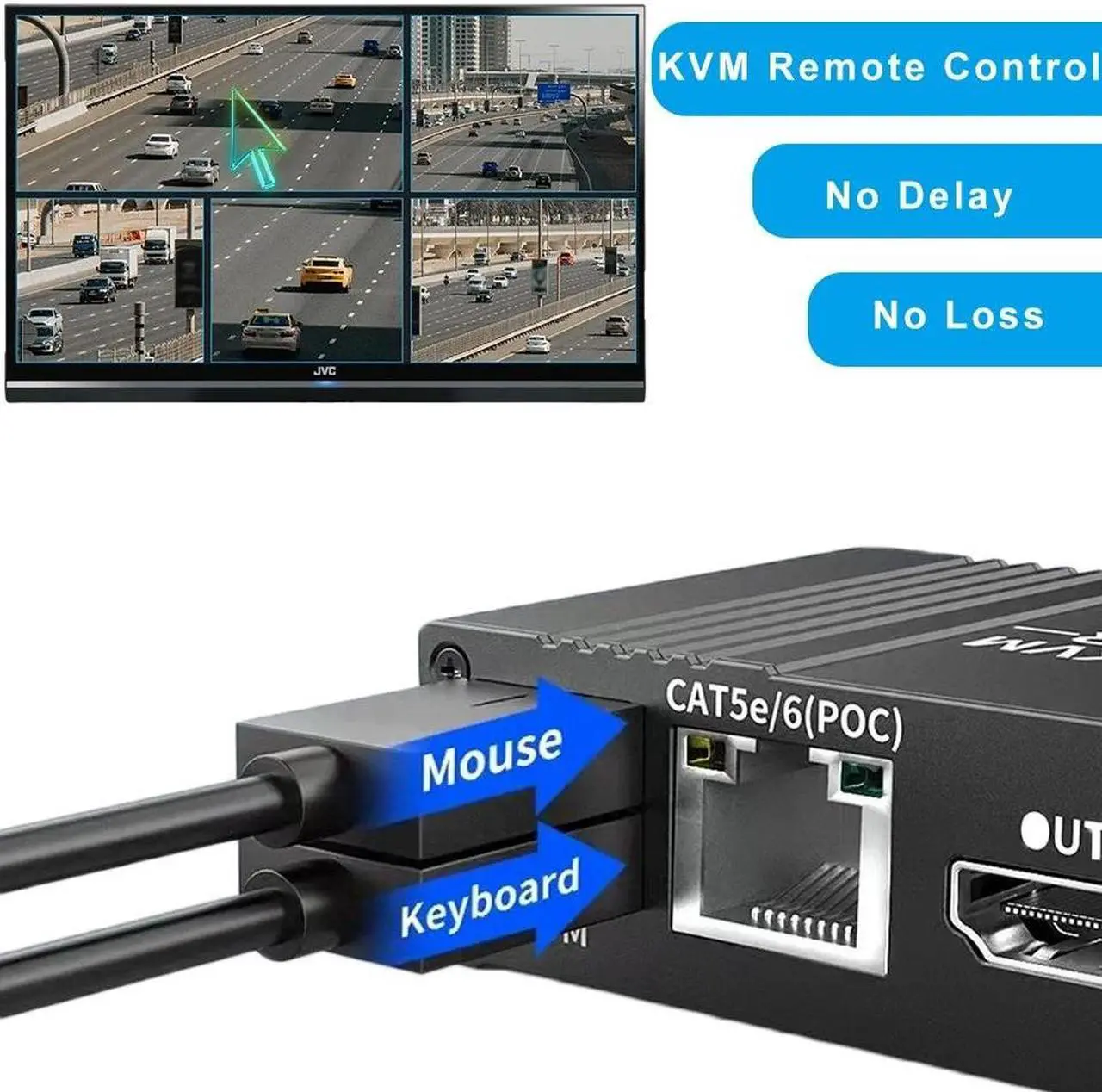

- KVM Rmote Control:keyboard and mouse remote control transmitter from long distance;

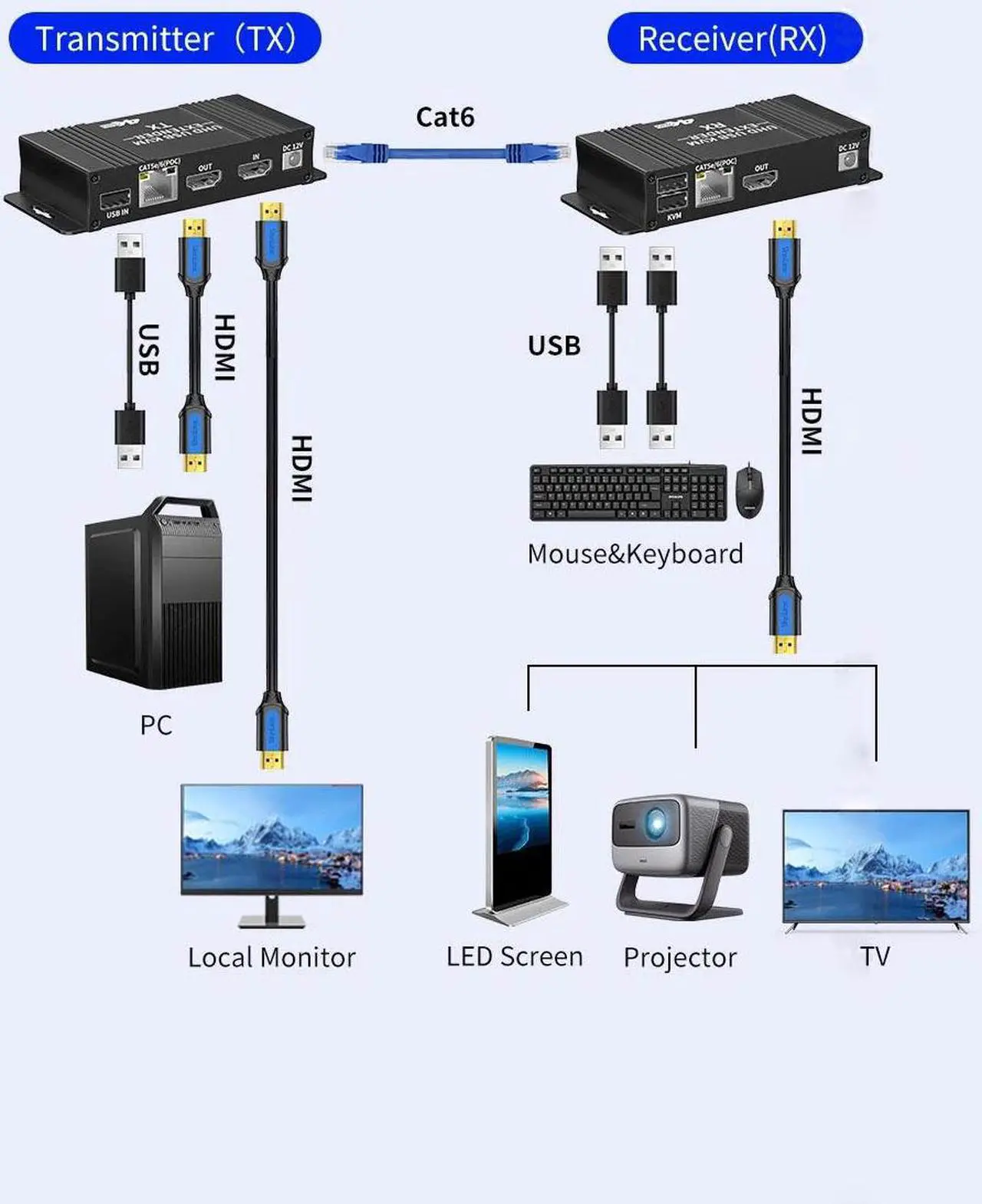

- Male to male:one TX to one RX applicataion;
- Video standard:compliance with HDMI 2.0 and HDCP 2.2 ,and compliant DVI standard;
- Built-in automatic adjustment system:make the image smooth, clear and stable;
- Built-in ESD protection system: make transmission much safer. Perfect hdmi extension adapter for large homes, factories, construction sites, data control centers etc;plug and play
- Simple to install, plug and play
Specifications:
Video
Standards: HDMI 2.0; HDCP 2.2 and DVI compliant
Maximum pixel clock: 300MHz
Maximum data rate: 18Gbps
Resolution: 4K@60Hz
Connector: HDMI-A
Impedance: 100Ohm
USB
Interface: PC: Type B USB interface; connect to pc;
K/M: connect wired or wireless USB keyboard and mouse
USB signal: HID Signal
CAT
Interface: RJ45/IEEE-568B/AWG23
Transmission distance: CAT5:40m/131ft,CAT5e:50m/164ft,CAT6:60m/196ft
Other
Power supply: The power adapter: DC 12V/1A
Power dissipation: TX:1.92W,RX:1.68W(Max)
Temperature: Operating: -5 centigrade ~ +70 centigrade
Humidity: Operating: 5% ~ 90%
Dimension: 118*50*25mm
Note:
1.the K/M USB port only support wired or wireless keyboard and mouse,not support Mechanical keyboard, USB camera,Scanner,USB flash driver ,printer etc.
2.For CAT cable,please you use AWG23 CAT5e/6 cable with IEEE-568B connection.
