This pci-e motherboard riser card can be inserted into the pcie port on the motherboard to upgrade your computer to the USB 3.2 super speed data transmission ports. The theoretical transmission speed can be as high as 10Gbps bandwidth. It is also backward compatible with USB 3.0, USB 2.0, and USB 1.1 devices. The speed of USB 3.2 is twice that of USB 3.0.Provide bridging function between desktop computer and USB device, providing you with great work efficiency.
Feature:
- Comply with PCI Express standard version 2.0 and 3.0.
- Comply with Universal Serial Bus 3.0 standard.
- The USB interface can provide 5V-2A power supply for external devices.
- With four power supply modules, no additional power supply is required.
- Support Windows XP / 7/8 / 8.1 / 10(32 bit or 64 bit) /MAC OS 10.8.2 Above.
- Before making a choice, please read the (Warm Note) at the end of the page.
Explosion-proof capacitors are made of dielectric polymer materials. Each interface is equipped with a voltage regulating capacitor. Can ensure good temperature control during operation and ensure stable power supply for each interface.

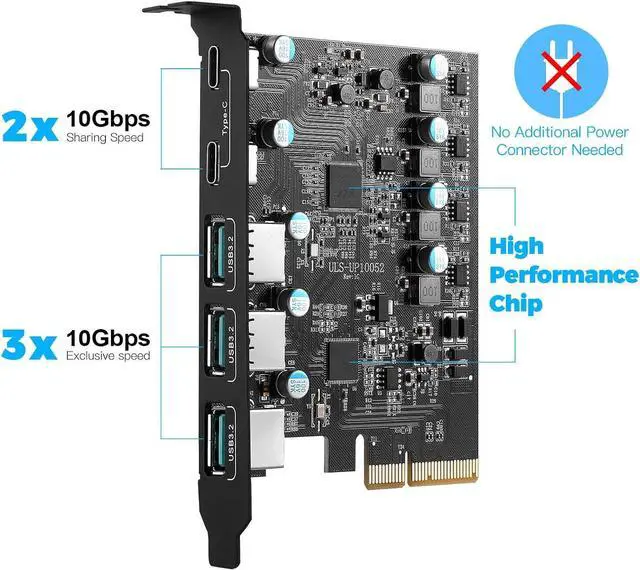

Uses ASM3142 main control chip. It provides stable 10Gbps high-speed transfer for the USB 3.2 interface of the PCI expansion card, which is 70% faster than the conventional UASP USB 3.2.
It can provide an external USB interface for computer systems that support PCI Express, and connect U disks, printers, keyboards, mice, webcams, game controllers, etc. to the computer host.

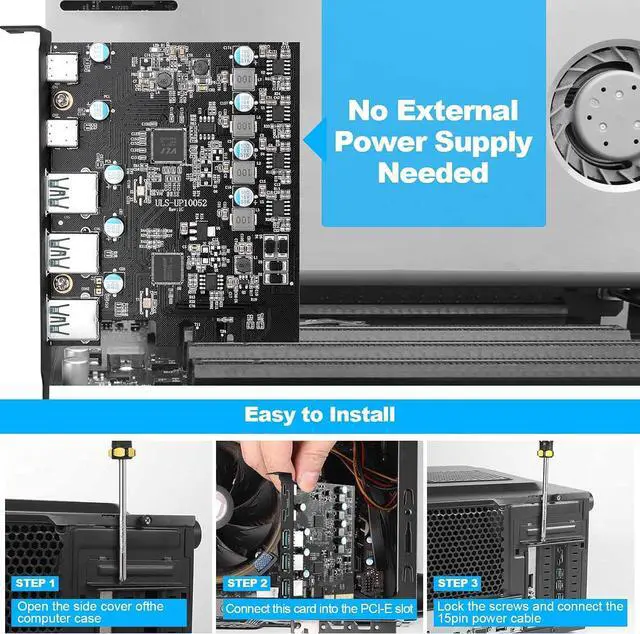

Turn off the computer, unplug the power plug from the socket and remove the cover from the computer case.
Find the corresponding PCI-E card slot.
Insert the card into a free PCI Express slot.
Then tighten the screws on the side of the holder with a screwdriver, put the computer cover back on the computer and plug the plug into the socket.
Warm Note:
- It does not support PCI X1 slot, and only applies to PCI Express X4 slot and above.
- The actual transfer speed of the PCIe USB 3.2 card may be limited by the connected device.
- Install the driver after the PC recognizes the USB expansion card, otherwise the installed driver will be invalid.
- If the PCIe card is not connected properly, your PC may not automatically recognize the PCIe card.
- USB terminology: USB 3.2 Gen 2x1 was originally called USB 3.1 Gen 2. Since many motherboard factory have not updated their hardware technology in time, most computer programs will display USB 3.1, but it does not affect the speed.
- This USB 3.2/3.1 card only supports data transmission, not video signal transmission (DP, HDMI, VGA display conversion), you must pay attention before choosing.
