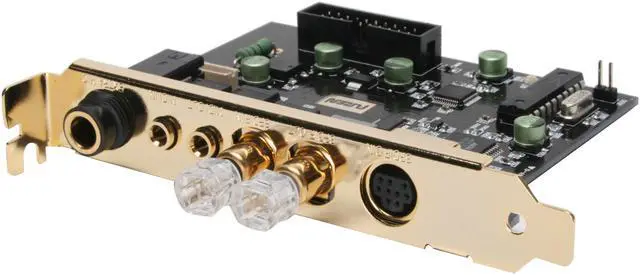

Learn more about the Auzentech Auzen X-Tension DIN
| Brand | AUZEN |
|---|---|
| Model | Auzen X-Tension DIN |
| Sample Rate | 192KHz |
|---|---|
| Digital Audio | 24-bit |
| SPDIF Out | RCA or Optical Combo |
|---|---|
| MIC In | Yes |
| MIDI/Joystick | Yes |

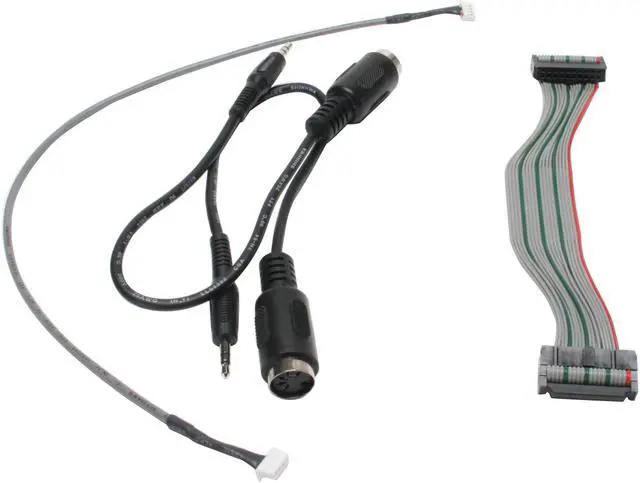

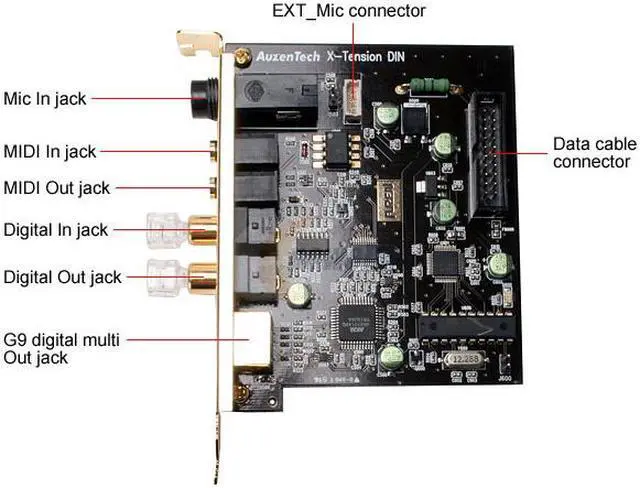

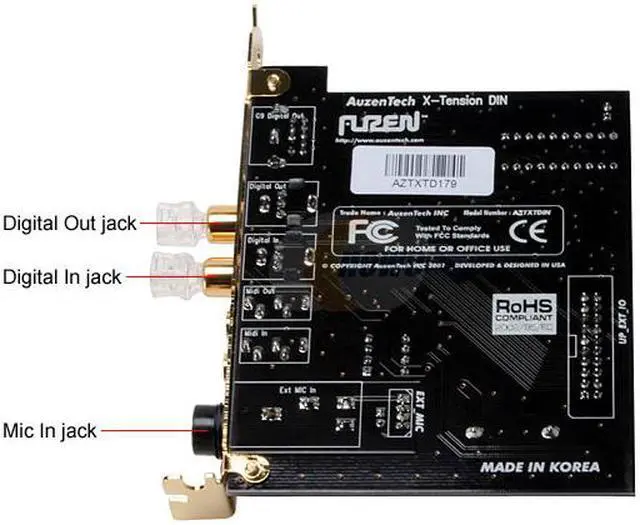

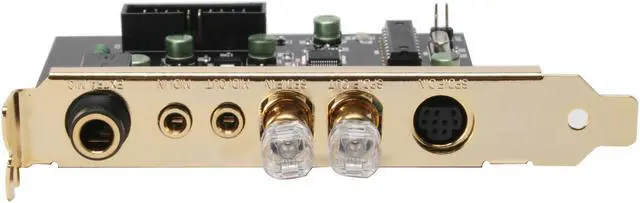

| Features | Mic In: The input for dynamic-microphone. In total, three microphone inputs are available (Microphone input of the soundcard, FP_AUDIO, Auzen X-Tension). When the jumper switch 9 is set to ‘ON,’ this input changes to a condenser microphone input that supports 5V power (Caution: "Phantom power" is not supported. Do not use a phantom microphone.) MIDI In: 16 channels of MIDI signal input. MIDI Out: 16 channels of MIDI signal output. Digital In: Supports coaxial and optical input. Digital Out: Supports coaxial and optical output. G9 Digital Multi Out: Output supporting 24Bit 96kHz LPCM or PCM 8ch. Compatible with digital speakers from Creative Labs. EXT_MIC Connector: Transfers microphone input data. Used with the 4pin-4pin cable to connect to the soundcard. Data Cable Connector: Used to connect the soundcard and Auzen X-Tension DIN. Jumper 1: Default setting is ‘OFF’ for dynamic microphone. When set to on ‘ON’, 5V will be provided to the microphone input for use with a condenser microphone. Jumper 2: This jumper is related with the type of digital signal. For the X-Meridian, set this jumper to ‘OFF.' Other settings may be appropriate for future soundcards. Compatibility The X-Tension DIN is to be used with the following list of soundcards and devices. Select future Auzen soundcards will be compatible with the X-Tension DIN. Auzen X-Fi Prelude Auzen X-Meridian 7.1 Digital speakers from Creative Labs via the G9 Digital Multi Out jack. Cambridge Soundworks Digital Desktop Theater 5.1 DTT2500 Cambridge Soundworks FPS2000 Digital Speakers Cambridge SoundWorks DTT 3500 Digital 5.1 Surround Speaker System Creative Inspire 5.1 5700 PC multimedia home theatre speaker system |
|---|
| First Listed on Newegg | July 11, 2007 |
|---|
