Asus ROG STRIX Z390-E GAMING ATX Desktop Motherboard Combo Set with Intel Core i5-7400 LGA 1151 CPU 2pcs X 16GB = 32GB 3200MHz DDR4 Memory by Avarum Ram

Asus ROG STRIX Z390-E GAMING ATX Desktop Motherboard Combo Set with Intel Core i5-7400 LGA 1151 CPU 2pcs X 16GB = 32GB 3200MHz DDR4 Memory by Avarum Ram


Our motherboard set includes 1*motherboard, 1*CPU and 2* 16GB Rams. Please note that this combo set will be shipped from China and the shipping time will be about 10 to 15 days.

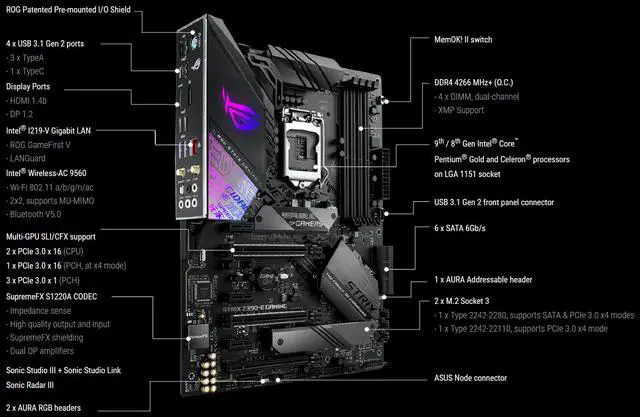

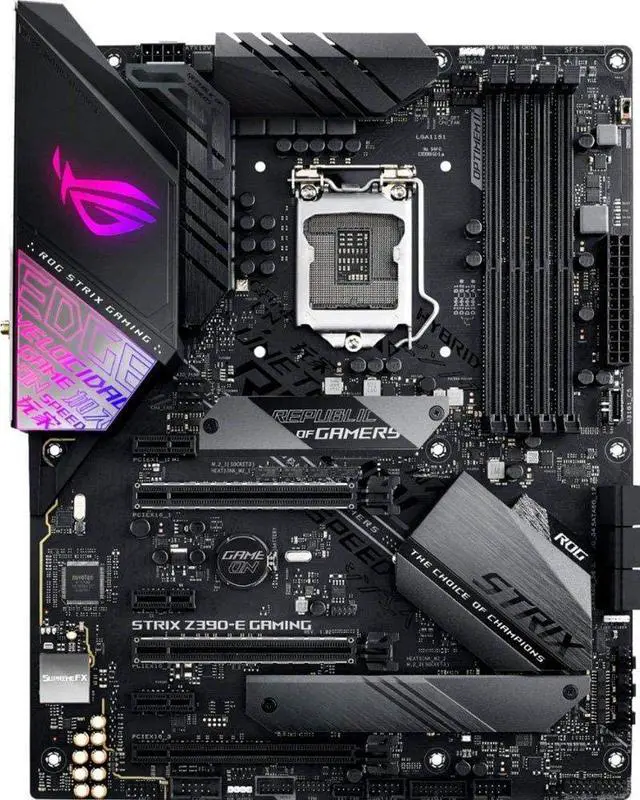

Motherboard:


Model: Asus ROG STRIX Z390-E GAMING

CPU Socket Type: LGA 1151

Chipset: Intel® Z390

Condition: Refurbished

CPU supported: Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Memory socket: 4 * DDR4 288pin Non-ECC Un-buffered DIMM

Max memory supported: 128GB

Memory Standard: DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory


Expansion Slots:

3 x PCIe 3.0/2.0 x1

2 x PCIe 3.0/2.0 x16 (x16 or dual x8)

1 x PCIe 3.0/2.0 x16 (max at x4 mode)

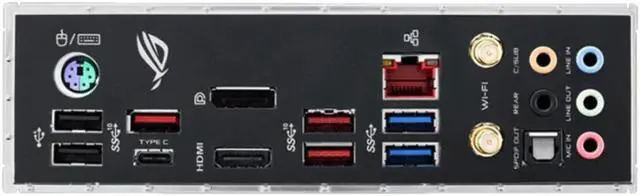

Back I/O Ports:

4 x USB 3.1 Gen 2 (3 x Type-A+1 x USB Type-CTM)

1 x DisplayPort

1 x HDMI

1 x LAN (RJ45) port(s)

2 x USB 3.1 Gen 1

2 x USB 2.0 Ports

1 x Optical S/PDIF out

5 x Audio jack(s)

1 x ASUS Wi-Fi Module


Form Factor: ATX

Dimensions: 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )


Note:

1. Please allow 1-3mm differs due to manual measurement.

2. Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.

3. The battery in motherboard will be removed before shipping, as battery is forbidden at CN post and custom.

4. For tax problem , pls make sure you can solve the customs clearance problems by yourself, if you can't solve it, we don't advise you to buy goods in our store. We are not responsible for customs duties. Thanks for your kindly understanding.

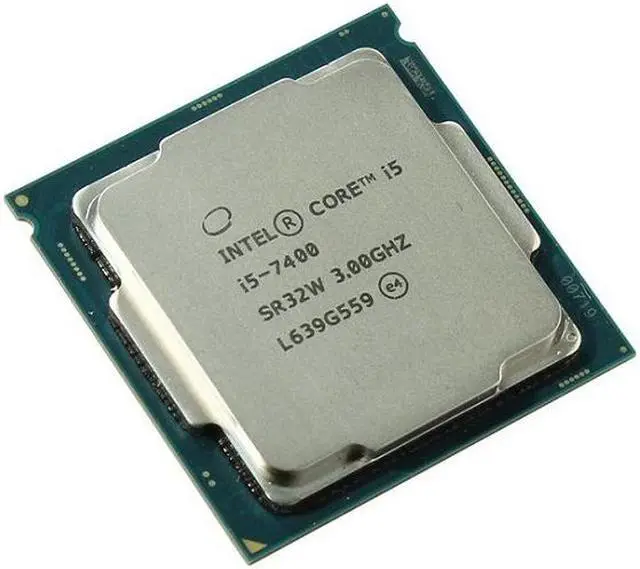

CPU:

Processor Series: Core i5 7th Gen

Processor Core: Quad-core (4 Core)

Model Name: Core i5-7400

Core Name: Kaby Lake

Operating Frequency: 3.0 GHz

Max Turbo Frequency: 3.5 GHz
Socket type: LGA 1151

# of Cores: Quad-Core

# of Threads: 4

L2 Cache:4 x 256KB
L3 Cache: 6MB

Manufacturing Tech: 14nm

65-Bit Support: Yes

Hyper-Threading Support:No
Virtualization Technology Support: Yes

Thermal Design Power: 65W


Note:

1: CPU is referbished, condition good, 1 year warranty. No fan or cooler included.

2: There may have some little physical scratches on the surface of the CPU, this is pretty normal.

3: All CPU are strictly tested by our store.

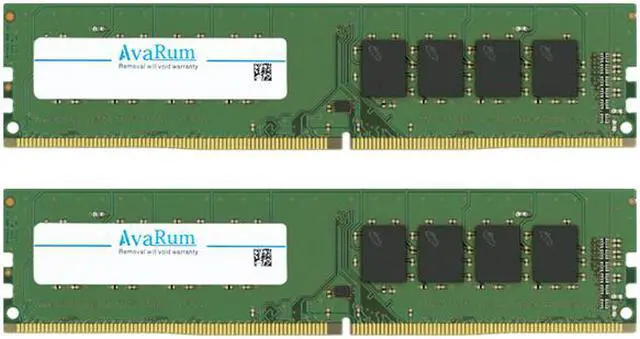

Memory:

Brand: Avarum Ram

Chip: Major Brand Chips

Type: Desktop Memory (UDIMM)

Frequency: DDR4 3200MHz

Capacity: 32GB (2*16GB)

Voltage: 1.2V

Dual-Rank 2RX8

Lifetime Replacement Warranty


Note:

Avarum RAM is manufactured using top brand chips such as Micron, Samsung, Hynix or Elpida and meets or exceeds manufacturer specification along with JEDEC standards.
