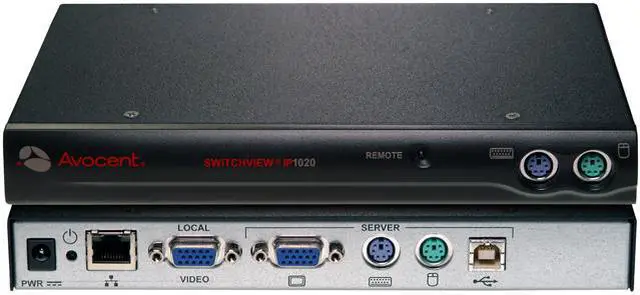

Avocent SwitchView IP 1020 SVIP1020-001 KVM Switch with USB Support
- 3 Ports Computer Connections
- 4 Ports Monitor Connections
- AutoScan Interval 5~100 seconds
- Video Resolution maximum: 1600x1200 @ 75Hz, remote port
- maximum: 1280x1024 @ 75Hz
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Avocent SVIP1020-001
| Brand | Avocent |
|---|---|
| Series | SwitchView IP 1020 |
| Model | SVIP1020-001 |
| Type | USB, PS/2 |
|---|---|
| PC Connectors | 1 x 6-pin mini-DIN (PS/2) Keyboard 1 x 6-pin mini-DIN (PS/2) Mouse 1 x 15-pin HD-15 Video |
| Console Connectors | 1 x 6-pin mini-DIN (PS/2) Keyboard Local 1 x 6-pin mini-DIN (PS/2) Mouse Local 1 x 15-pin HD-15 Video Local 1 x RJ-45 Keyboard/Mouse/Video Remote |
| Computer Connections | 3 Ports |
| Monitor Connections | 4 Ports |
| Video Resolution | maximum: 1600x1200 @ 75Hz, remote port maximum: 1280x1024 @ 75Hz |
| AutoScan Interval | 5~100 seconds |
| Monitors Supported | VGA, SVGA, XGA, XGA II |
| Temperature | Operating Temperature: 30° to 149° F (0° to 65° C) Storage Temperature: -4° to 140° F (-20° to 60° C) |
|---|
| Power Features | Operating Voltage: 12 v DC Power Consumption: 5W Input: 10W maximum (120v, 60 Hz) |
|---|---|
| USB Features | with USB support |
| Features | Remote Access: Simple, browser-based, real-time remote access to your KVM switches and servers Local Access: Supports native KVM connections to your KVM switch for at-therack access TCP/IP Connectivity: The remote connection uses industry-standard TCP/IP BIOS-Level Access: BIOSlevel access is supported for both the local and remote user Enhanced Security: Secure, user-selectable, remote KVM connections supporting DES, 3DES, AES or 128bit SSL encryption for keyboard, mouse and video Flash Upgrades: Convenient, one-click Flash upgrades for fast and easy firmware updates Configuration Ease: Installation and configuration are simplifed with no requirement for software agents on connected servers Operating System and Browser: Java video viewer supports Internet Explorer, Mozilla, Firefox and Netscape browsers on Windows and Linux platforms |
| Dimensions | 1.06" x 8.19" x 5.25" |
|---|---|
| Weight | 1.50 lbs. |
| First Listed on Newegg | January 28, 2011 |
|---|
