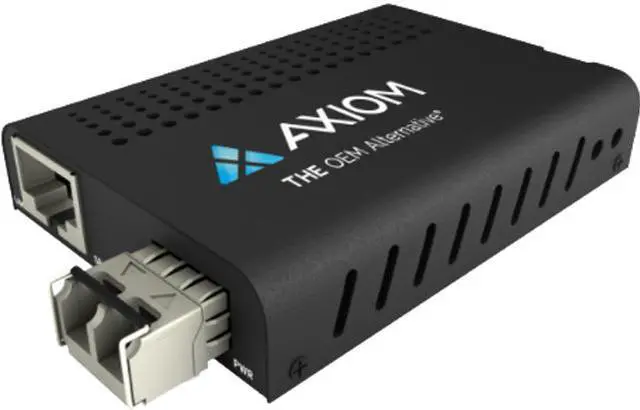

Axiom Mini 1Gbs RJ45 to 1000BASE-SX Media Converter - MMF, LC, 550m, 850nm

Unit and Port LEDs allow for quick status information
Auto-Negotiation
Full-Duplex or Half-Duplex Operation Modes
Auto-MDI / MDIX
Automatic Link Restoration
Connect to legacy network equipment
Eliminate Collision Domains
10 / 100 / 1000Base-TX UTP to 1000Base-FX Fiber media convertion
Supports IEEE802.3U IEEE802.3z 1000Base-TX / FX protocols , IEEE802.3ab standards
Available with Open SFP Port or optional built in LC / SC / ST Connections
DIP switch to set different configurations
Compact package size
Supports IEEE802.3x flow control; 100Base-FX interface; auto MDI-MDIX function; LFP function

Specs

Reviews

Any questions? Our AI mode will help you find out quickly.

Try me now

Model
Brand	Axiom
Model	MC03-M8L05-AX

Details
Color	Black
Specifications	Forwarding Mode: Store-and-forward Frowarding Frame: 9K Bytes LFP Mode: Supported Connector: One UTP RJ-45 connector, one LC Duplex Connector, one DC-inlet connector Operation mode: Full duplex or half duplex mode Power Requirement : Operating Voltage DC 5 ~ 12V Rated Current: 0.5 / 0.25A Power Consumption: Full-load< 3W

Features
Features	The Axiom Mini 10 / 100 / 1000Base-TX to 100/1000Base-FX Media Converter Series is a Gigabit Ethernet stand-alone Mini unmanaged media converter that provides cost effective, entry-level media conversion between Copper RJ45 10 / 100 / 1000Base-TX ports and 100 / 1000Base-FX fiber optic ports. Available with an open SFP port or its fixed connector configuration, deployments can be just plug-and-play or are fully customizable with the transceiver of your choice. With its small size, it is ideal for locations where space is limited. Choose from Multimode or Single-mode fiber connections to meet the distance requirements of your network.

Dimensions & Weight
Dimensions	0.79" x 3.54" x 2.36"
Weight	0.28 lb.

Additional Information
First Listed on Newegg	September 16, 2026

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
