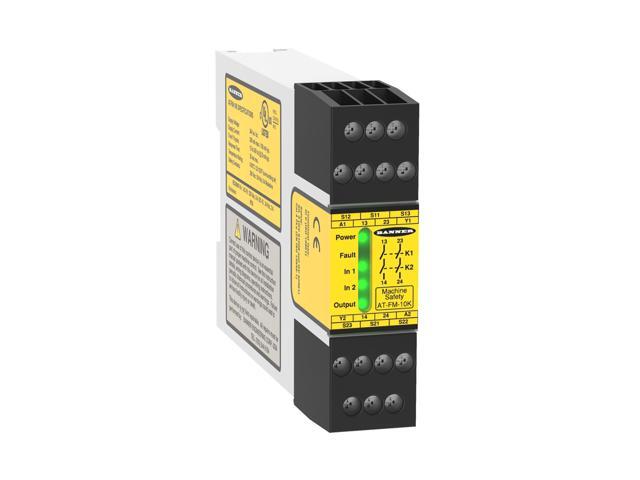

Safety Relay Module for Two-Hand Control Buttons
Supply Voltage: 24 V ac/dc
Safety Input: Two Buttons With Complementary PNP or Relay Outputs
Safety Output: 2 NO, 6 Amp;
Aux Output: None
Terminal Block: Removable; Width: 22.5 mm
Self-Checking Circuitry
Part Number: 60698
Device Type Safety Relay
Safety Module Type Two-Hand Control Module
LCD Display No
Expandable No
Dimension (H x W x D in mm) 84 x 22.5 x 118
Relative Humidity 90% @ 50° C
Max Operating Temperature ( °C) 50
Input Operation Simultaneous <= 500 ms (500 ms typical)
Number of Safe Inputs 1
Input Configuration 2 x complementary (contact or PNP)
Safety Input - Dual Channel (Dry Contact) 25 mA @ 24 V dc (1 NO / 1 NC per channel)
Safety Input - Dual Channel (Solid-State) 25 mA @ 24 V dc (1 complementary PNP pair per channel)
Independently Controlled Safe Outputs 1
Output Configuration 2 NO
Non Safe Output Rating N/A
Safe Output Rating Relay - 6 A
Splittable Safe Output No
Mechanical Life (Operations in Millions) 20
Power Consumption 3 W / 3 VA
Response Time (ms) 35 (max. )
Supply Voltage 24 V ac/dc +/- 15%
Terminal Type Screw
Removable Terminals Yes
Vibration 10-55 Hz at 0.35 mm
Electrical Life (Cycles @ VA) 1, 000, 000 @ 250 VA
IP Rating IP20
PL Rating e
Safety Category Rating 4
SIL Rating 3
SISTEMA PFHd = 1.5 x 10-9
THC Rating IIIC
E-Stops/Rope Pulls No
