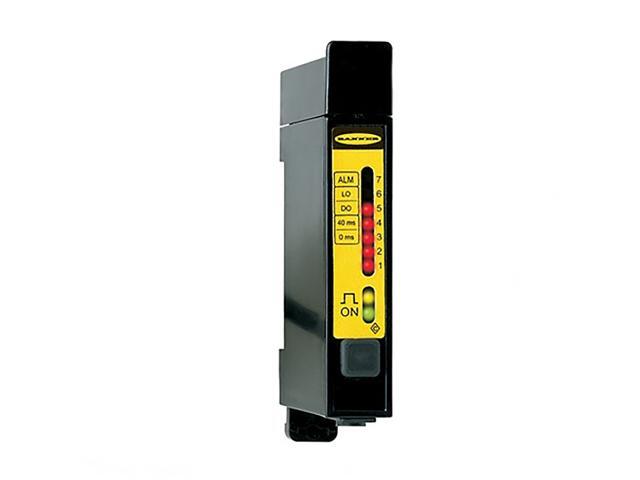

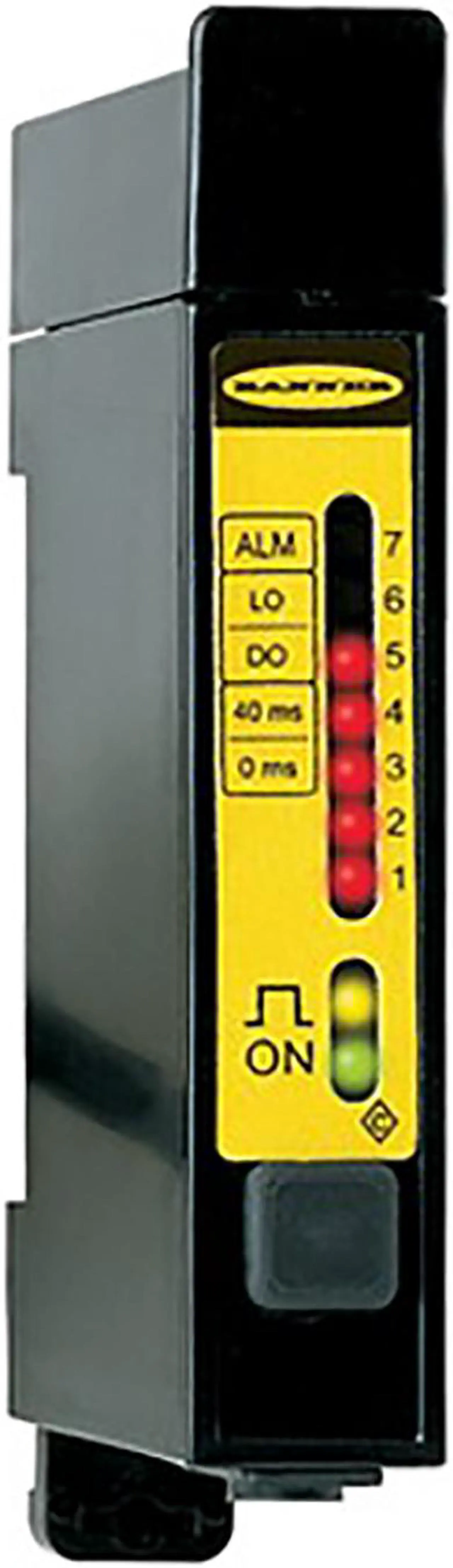

BANNER D12SP6FP Photoelectric Switch Sensor New
- BANNER D12SP6FP Photoelectric Switch Sensor New
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
D12 Series: Plastic Fiber Optic
Range: depends on fiber; Input: 10-30 V dc
Output: Complementary PNP
2 m (6.5 ft) Cable
Part Number: 32821
Cable Length (m) 2
Housing Style DIN Rail
Primary Housing Material Thermoplastic
Input/Output Discrete
Color LED - Amplifiers Red
Fiber Type Plastic and Glass
Output PNP
Connection Cable
Quick Disconnect Type No QD
Output Type (Specific) Single Discrete
Repeatability (µs) 130
Number of Pins 4
IP Rating IP11
NEMA Rating NEMA 2
Max Op. Temperature (°C) 70
Min Op. Temperature (°C) -20
Max Op. Relative Humidity (%) 90% @ 50°C
Special Feature: Remote Teach No
Intrinsically Safe No
Adjustments Potentiometer
Power Supply/Supply Voltage 10-30 V dc
Delay at Power-up (ms) 100
Indicator Display Type Bargraph
Minimum response time (ms) .5
Special Feature: Bussable Power No
Feature: Timing (Hold/Delay) No
Feature: Hazardous Area No
Feature: Audible No
Feature: Health/ Marginal Signal Output Yes
Application: Object Counting Yes
IO Link No
Housing Material Thermoplastic
Range: depends on fiber; Input: 10-30 V dc
Output: Complementary PNP
2 m (6.5 ft) Cable
Part Number: 32821
Cable Length (m) 2
Housing Style DIN Rail
Primary Housing Material Thermoplastic
Input/Output Discrete
Color LED - Amplifiers Red
Fiber Type Plastic and Glass
Output PNP
Connection Cable
Quick Disconnect Type No QD
Output Type (Specific) Single Discrete
Repeatability (µs) 130
Number of Pins 4
IP Rating IP11
NEMA Rating NEMA 2
Max Op. Temperature (°C) 70
Min Op. Temperature (°C) -20
Max Op. Relative Humidity (%) 90% @ 50°C
Special Feature: Remote Teach No
Intrinsically Safe No
Adjustments Potentiometer
Power Supply/Supply Voltage 10-30 V dc
Delay at Power-up (ms) 100
Indicator Display Type Bargraph
Minimum response time (ms) .5
Special Feature: Bussable Power No
Feature: Timing (Hold/Delay) No
Feature: Hazardous Area No
Feature: Audible No
Feature: Health/ Marginal Signal Output Yes
Application: Object Counting Yes
IO Link No
Housing Material Thermoplastic
