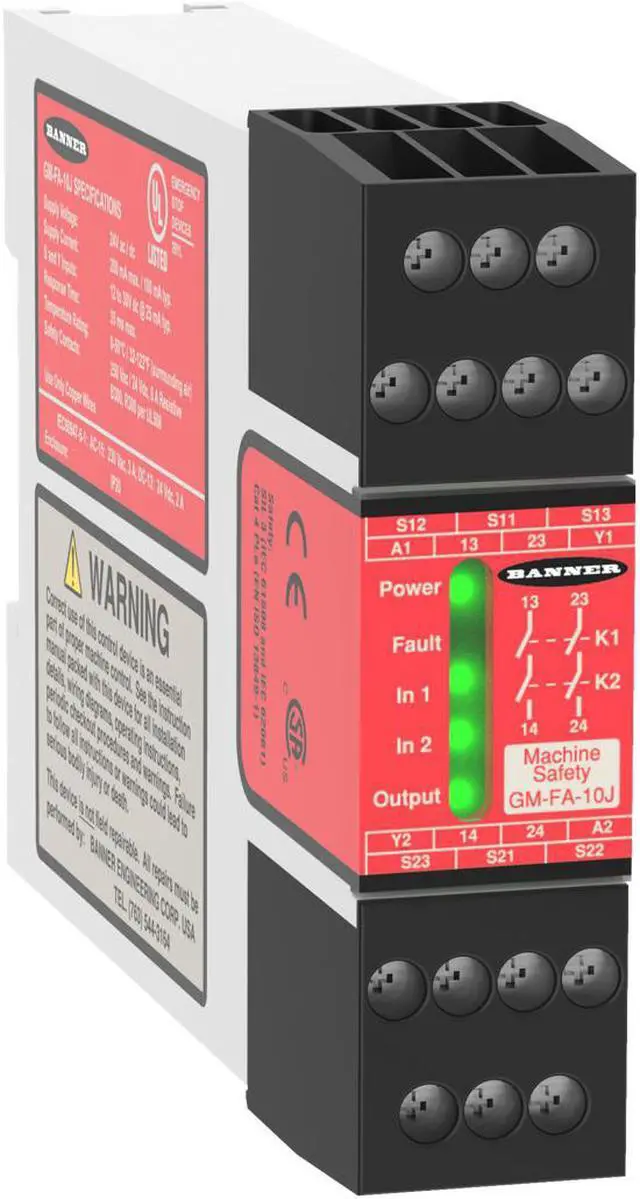

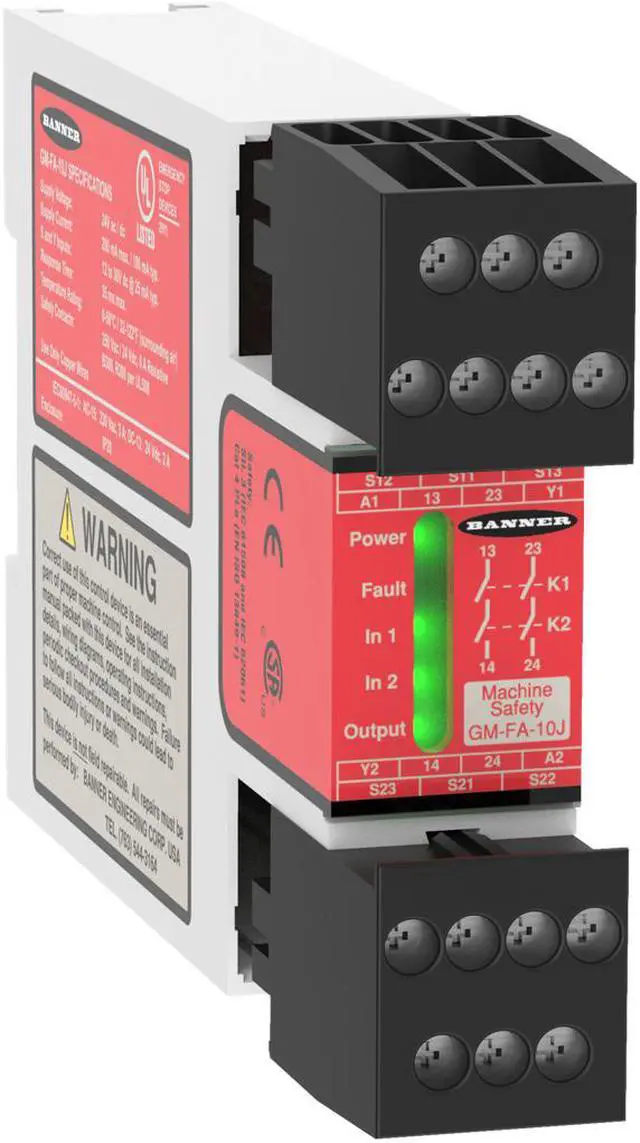

BANNER GM-FA-10J Guard Monitoring Safety Relays New

Safety Relay Module for Interlocks
Supply Voltage: 24 V ac/dc
Safety Input: Interlocks with complementary contacts
Safety Output: 2 NO, 6 Amp; Aux Output: None
Terminal Block: Removable; Width: 22.5mm
Self-Checking Circuitry, Auto/Manual Reset
Part Number: 60987
Device Type Safety Relay
Safety Module Type Gate Monitoring Module
LCD Display No
Expandable No
Dimension (H x W x D in mm) 84 x 22.5 x 118
Relative Humidity 90% @ 50° C
Max Operating Temperature ( °C) 50
Input Operation Simultaneous within 3.0 s
Number of Safe Inputs 2
Input Configuration 1 complementary or 2 x complementary (contact)
Safety Input - Dual Channel (Dry Contact) 20-50 mA @ 15-30 V dc
Safety Input - Reset 20 mA @ 12 V dc (dry contact only)
Independently Controlled Safe Outputs 1
Output Configuration 2 NO
Non Safe Output Rating N/A
Safe Output Rating Relay - 6 A
Splittable Safe Output No
Mechanical Life (Operations in Millions) 50
Power Consumption 3 W / 3 VA
Recovery Time (ms) 250
Response Time (ms) 35 (max.)
Supply Voltage 24 V ac/dc +/- 15%
Terminal Type Screw
Removable Terminals Yes
Vibration 10-55 Hz at 0.35 mm
Electrical Life (Cycles @ VA) 1,000,000 @ 250 VA
IP Rating IP20
PL Rating e
Safety Category Rating 4
SIL Rating 3
SISTEMA PFHd = 1.54 x 10-9
Input Resistance 270 O max. per channel
