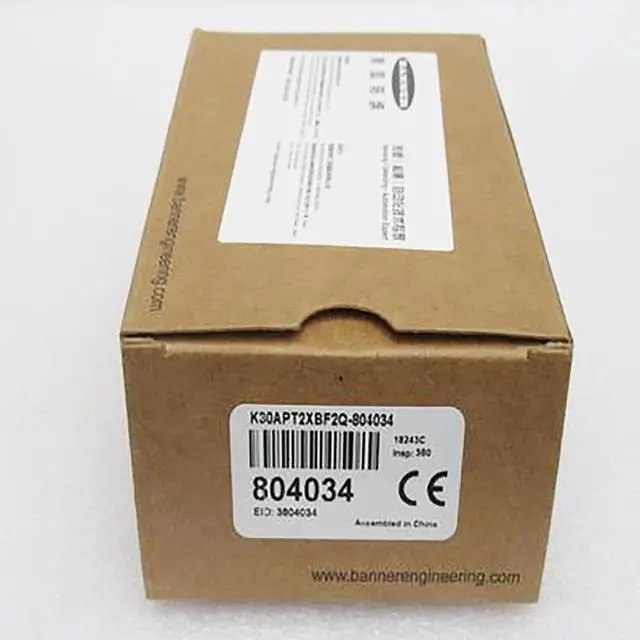

BANNER K30APT2XBF2Q Touch Pickup Indicator 804034 New

K30 Series EZ-LIGHT: 1-Input-Color Touch Sensor Gen 2
Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K
Input: PNP (NO); Colors: None - Power applied; Blue - Input active
Euro 4-pin Quick-Disconnect
Part Number:  804034
Housing Style Base Mount - Dome Window
Primary Housing Material Polycarbonate
Actuation Yes
Activation Function Capacitive Touch
Mounting Thread M22 x 1.5
Color Input Control Individual (One wire/color, same number of colors as input wires)
Number of Colors / Segments 1
Product Size (mm) 30
Color Technology Standard LED
Connection Integral QD
Quick Disconnect Type M12 (Euro)
Color Option 2 Blue
Lumens Color 2 1.0
Color 2 - Wavelength/Color Temp/Coordinates 470 nm
Max Current Color (mA) 55
Pick-to-Light Function F2
Number of Input Pins/Conductors 4
Operation Normally Open
Supply Voltage 12-30 V dc
Output Type PNP
Input Type PNP
Max Input Response Time (ms) 300
Max Output Response Time (ms) 150
Physical Dimensions (LxWxH or DxH mm) 30.0 x 54.5
Environmental Rating IP67; IP69
NEMA Type and UL Type Rating NEMA and UL 4X, 13
Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
Max Op. Temperature (°C) 50
Min Op. Temperature (°C) -40
Storage Temp (°C) -40 to 70
Primary Housing Color Black
Button Operation Momentary
Primary Window Material Polycarbonate Diffused
Feature: Washdown Rated Yes
Feature: Hazardous Area No
Feature: Audible No
Feature: Chemical Resistant No
Multi-Color Device Single Color On
