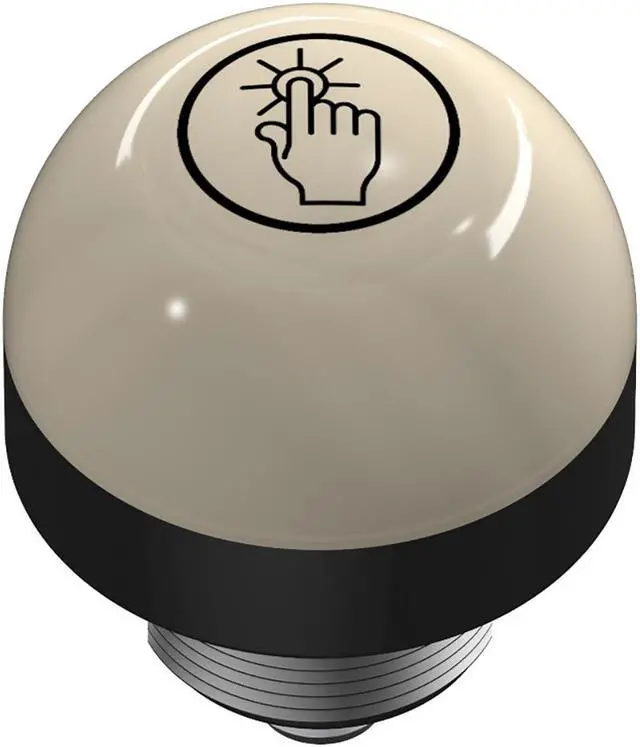

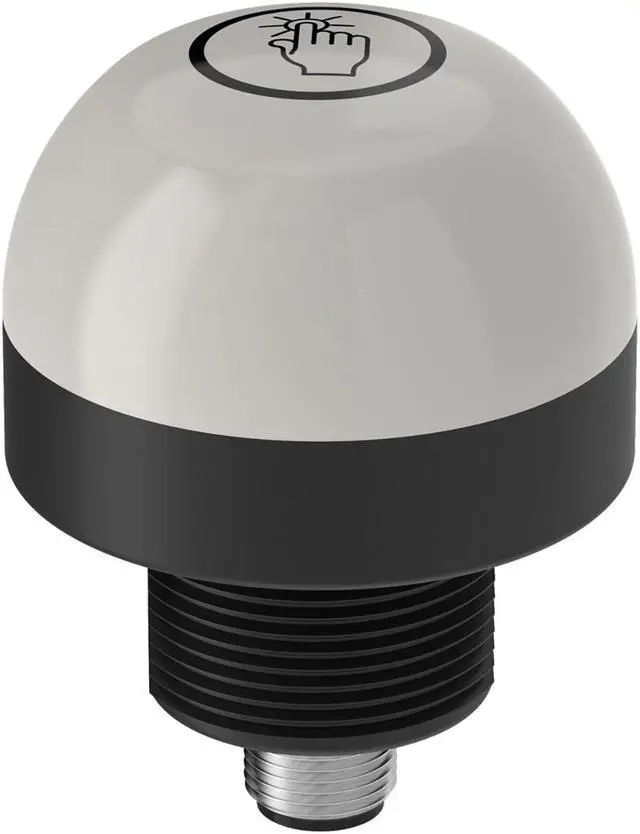

BANNER K50APT2GRYF2Q 50 Mm General Purpose Illuminated Touch Button New

K50 Series EZ-LIGHT: 3-Input-Color Touch Sensor Gen 2;
Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K
Input: PNP (NO); Colors: Green Red Yellow
Euro-style Quick-Disconnect
Part Number: 96764
Cable Length (m) 2
Housing Style Base Mount - Dome Window
Primary Housing Material Polycarbonate
Actuation Yes
Activation Function Capacitive Touch
Mounting Thread M30 x 1.5
Color Input Control Individual (One wire/color, same number of colors as input wires)
Number of Colors / Segments 3
Product Size (mm) 50
Color Technology Standard LED
Color Option 1 Green
Animation Option 1 Solid On
Connection Integral QD
Quick Disconnect Type M12 (Euro)
Lumens Color 1 29.0
Color 1 - Wavelength/Color Temp/Coordinates 525 nm
Color Option 2 Red
Lumens Color 2 13.0
Color 2 - Wavelength/Color Temp/Coordinates 625 nm
Color Option 3 Yellow
Lumens Color 3 24.0
Color 3 - Wavelength/Color Temp/Coordinates 591 nm
Max Current Color (mA) 75
Pick-to-Light Function F2
Number of Input Pins/Conductors 8
Operation Normally Open
Supply Voltage 12-30 V dc
Output Type PNP
Input Type PNP
Max Output Response Time (ms) 50
Physical Dimensions (LxWxH or DxH mm) 50.0 x 66.0
Environmental Rating IP67; IP69
Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
Max Op. Temperature (°C) 50
Min Op. Temperature (°C) -40
Storage Temp (°C) -40 to 70
Primary Housing Color Black
Button Operation Momentary
Primary Window Material Polycarbonate Diffused
