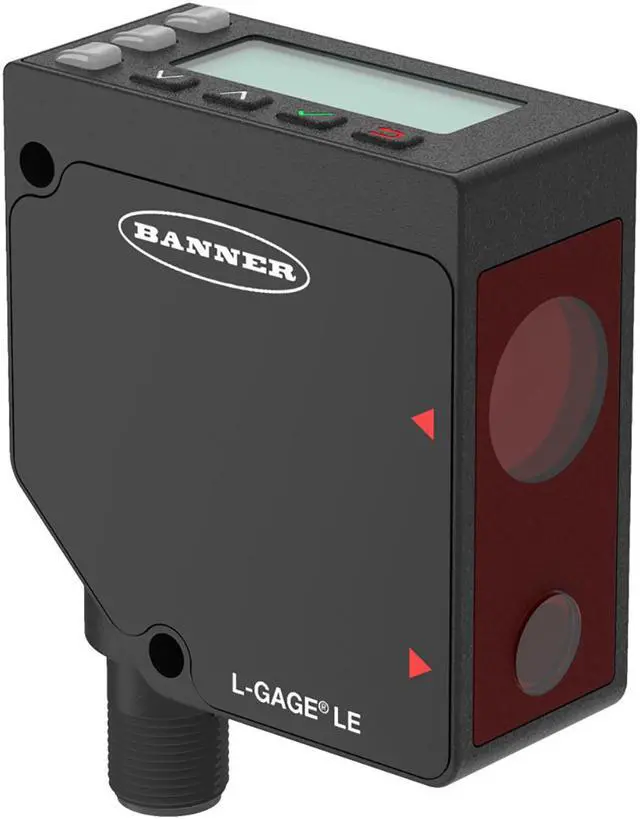

BANNER LE550IQ 1 M Range Laser Displacement Sensor New

Laser Displacement Sensor; Range: 100-1000 mm
Input:12-30 V dc; Output: Analog: 4-20 mA
Discrete: NPN/PNP configurable; Integral Quick-Disconnect
Part Number: 86746
Sensing Beam Visible Red Laser
PC Configurable No
Sensing Mode (General) Proximity
Sensing Mode (Detailed) Triangulation
Housing Style Rectangular
Device Type Sensor
Primary Housing Material Zinc Alloy Die-Cast
Laser Classification Class 2
Input/Output Analog & Discrete
Indicator LCD; LED(s)
Connection Integral QD
Analog Output Configuration 4-20 mA
Analog Resolution/Discrete Repeatability 100 mm to 600 mm: < 0.5; 600 mm to 1000 mm: < 1
Quick Disconnect Type M12 (Euro)
Max Sensing Distance (mm) 1000
Minimum Sensing Distance (mm) 100
Sensing Beam Visible Red Laser
Power Supply 12-30 V dc
Delay at Power-up (ms) 2000
Sensing Beam Wavelength (nm) 650
Adjustments Push Button; Remote Teach
Temperature Effect (mm/°C) +/- 0.25 mm/°C from 100 to 600 mm, +/- 0.5 mm/°C at 1000 mm
Number of Pins 5
Vibration MIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Mechanical Shock IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Output Saturation Voltage NPN Outputs < 1.6 V at 100 mA
Output Saturation Voltage PNP Outputs < 3 V at 100 mA
Analog Current Output Rating 1 k? max @24 V dc, max load resistance = [(Vcc-4.5 V)/0.02 A] ?
Max Discrete (Switched) Output (mA) 100
Discrete (Switched) Outputs 1 NPN/PNP Configurable
Output Protection Protected against continuous overload and short circuit
IP Rating IP67
NEMA Rating NEMA 6
Storage Temperature (°C) -30 to 65
Max Operating Temperature (°C) 55
Min Operating Temperature (°C) -20
Max Op. Relative Humidity Non-Condensing (%) 90 at 55°C
Window Material Acrylic
Warm-up Time (minutes) 10
Minimum Response Time (ms) 2
Spot Size (@ Reference Distance) 4.9 mm x 12.1 mm @ 1 m
Analog Linearity (mm) Linearity is the lesser of Accuracy or 0.5% of full scale range (± 4.5 mm) at any given distance
Minimum Window Size (mm) 10
Remote Teach and Laser Control Input Impedence 18 k? min. (65 k? min at 5 V dc)
Discrete Output Hysteresis (mm) Automatically adjusted
Laser Control Yes
Alarm Output (mA) 100
Max Ambient Light (Lux) 10000
Max Off-state Leakage Current (µA) NPN: < 200 at 30 V dc; PNP: < 10 at 30 V dc
Power/Current Consumption (exclusive of load) 70 mA @ 24 V dc
Supply Protection Circuitry Protected against reverse polarity and transient overvoltages
Feature: Remote Teach Yes
Feature: Timing (Hold/Delay) Yes
Feature: Chemical Resistant No
Feature: Health/ Marginal Signal Output Yes
Common Ethernet Protocol No
IO Link No
PROFINET No
RS-232 No
RS-422 No
RS-485 No
SSI No
Wireless No
1-wire Serial Interface No
Profibus No
