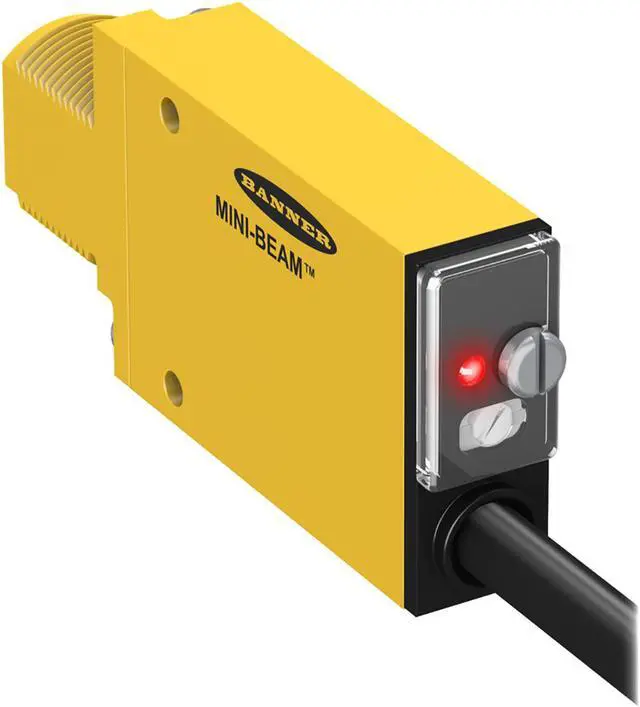

BANNER MIAD9LV Mini-Beam Series Industry Standard Sensor New

MINI-BEAM NAMUR: Retro
Range: 5 m; Input: 5-15V dc
Output: NAMUR
2 m (6.5 ft) cable
Part Number: 37717
Sensing Beam Visible Red LED
Cable Length (m) 2
Sensing Mode (General) Retroreflective
Sensing Mode (Detailed) Non-Polarized
Housing Style Rectangular w/M18 Mount
Primary Housing Material Thermoplastic
Input/Output Discrete
Max Sensing Distance (mm) 5000
Outputs Constant Current
Power Supply/Supply Voltage 5-15 V dc
Connection Cable
Quick Disconnect Type No QD
Operation Light/Dark Operate
Min Op. Temp. (°C) -40
Max Op. Temp. (°C) 70
Output response time (ms) 5
Special Feature: Intrinsically Safe Yes
Special Feature: Remote Teach No
Special Feature: Water Detection No
Delay at Power-up (ms) N/A
Repeatability (µs) N/A
Number of Pins 2
NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13
IP Rating IP67
Max Op. Relative Humidity [%] 90% @ 50°C
Lens Material Acrylic
Adjustments Potentiometer
Barrel Diameter (mm) 18
Indicator LEDs
Opposed Mode Emitter/Receiver N/A
Feature: Timing (Hold/Delay) No
Feature: Encapsulated Yes
Feature: Hazardous Area Yes
Feature: Audible No
Feature: Chemical Resistant No
DeviceNet No
IO Link No
