BANNER PBCT23TS Fiber Optic Sensor New
- BANNER PBCT23TS Fiber Optic Sensor New
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

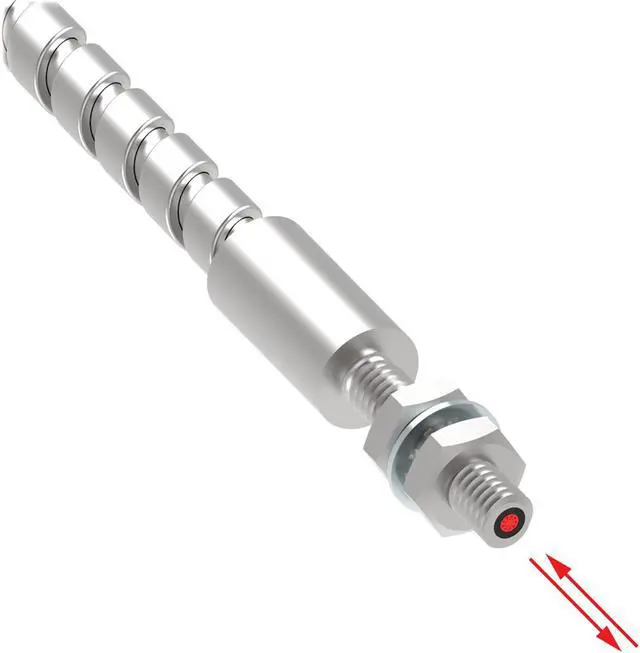

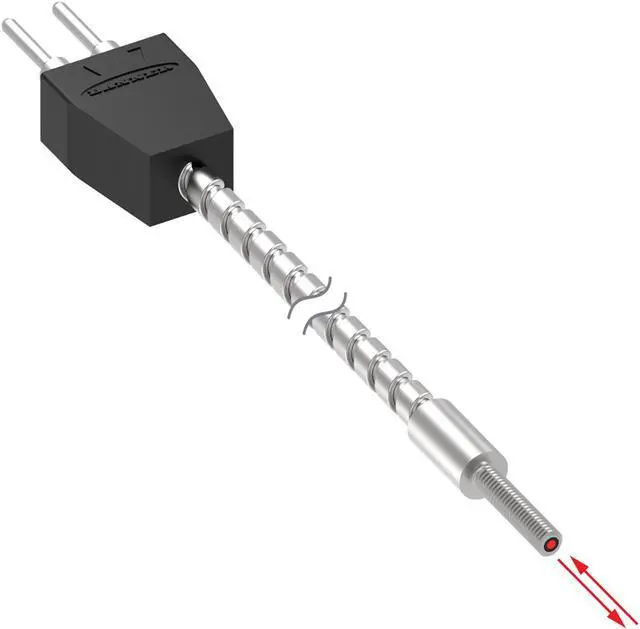

Plastic Fiber, Diffuse Reflective
Core Dia.: 0.5 mm & 9 x 0.25 mm; Fiber Length 1 m
Coaxial, Thread
TS Termination
Part Number: 42794
Housing Style Round
Quantity Included 1
Fiber Optic Type Plastic
Sensing Mode (General) Diffuse
Sensing Mode (Detailed) Coaxial
Beam Exit In-line
Sensing End Material (Specific) Stainless Steel
Fiber Sheathing Material (Jacket) Stainless Steel Monocoil
Fiber Sensing End Tip Thread
Fiber Length (m) 1
Fiber Sensing End Size M4
Sensing End Segment 1 Thread
Sensing End Segment 2 Ferrule
Sensing End Segment 3 Thread
Retractile No
Flex Relief No
Core Diameter (mm) 0.5
Minimum Bend Radius (mm) 10
Termination Terminated
Max Temp ( °C) 70
Minimum Repeat Bending Endurance 5000
Integrated Lens No
Feature: Chemical Resistant No
Feature: Extended Range No
Feature: Small Object Detection No
Application: Liquid Level No
Application: Vacuum Feed Through None
Termination Type Plastic Fiber Sensors
Measured Max Distance (mm) No Data
Tariff Fiber Meters (fbm) 10.75
Max Distance: DF-G3 (mm) No Data
Fiber Sensing End Size - Mounting Area M4
Max Distance: DF-G2 (mm) No Data
Max Distance: DF-G1 (mm) No Data
Core Dia.: 0.5 mm & 9 x 0.25 mm; Fiber Length 1 m
Coaxial, Thread
TS Termination
Part Number: 42794
Housing Style Round
Quantity Included 1
Fiber Optic Type Plastic
Sensing Mode (General) Diffuse
Sensing Mode (Detailed) Coaxial
Beam Exit In-line
Sensing End Material (Specific) Stainless Steel
Fiber Sheathing Material (Jacket) Stainless Steel Monocoil
Fiber Sensing End Tip Thread
Fiber Length (m) 1
Fiber Sensing End Size M4
Sensing End Segment 1 Thread
Sensing End Segment 2 Ferrule
Sensing End Segment 3 Thread
Retractile No
Flex Relief No
Core Diameter (mm) 0.5
Minimum Bend Radius (mm) 10
Termination Terminated
Max Temp ( °C) 70
Minimum Repeat Bending Endurance 5000
Integrated Lens No
Feature: Chemical Resistant No
Feature: Extended Range No
Feature: Small Object Detection No
Application: Liquid Level No
Application: Vacuum Feed Through None
Termination Type Plastic Fiber Sensors
Measured Max Distance (mm) No Data
Tariff Fiber Meters (fbm) 10.75
Max Distance: DF-G3 (mm) No Data
Fiber Sensing End Size - Mounting Area M4
Max Distance: DF-G2 (mm) No Data
Max Distance: DF-G1 (mm) No Data
