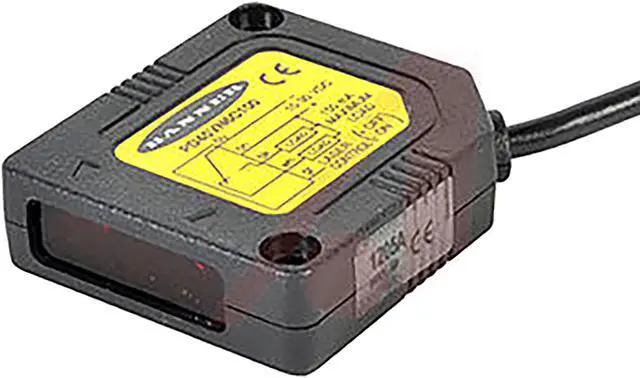

BANNER PD45VN6C200 The New Laser Sensor

PicoDot: Convergent Laser
Focal Point: 203 mm; Input: 10-30V dc
Outputs: Complementary NPN
2 m (6.5 ft) Cable
Part Number: 47926
Sensing Beam Visible Red Laser
Cable Length (m) 2
Sensing Mode (General) Proximity
Sensing Mode (Detailed) Convergent
Housing Style Rectangular
Primary Housing Material Thermoplastic
Laser Classification Class 2
Small Visible Spot Laser
Input/Output Discrete
Max Sensing Distance (mm) 203
Outputs NPN
Power Supply/Supply Voltage 10-30 V dc
Connection Cable
Quick Disconnect Type No QD
Operation Light/Dark Operate
Min Op. Temp. (°C) -10
Max Op. Temp. (°C) 45
Output response time (ms) 0.2
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Sensing Beam Wavelength 650
Delay at Power-up (ms) 1000
Repeatability (µs) 50
Number of Pins 5
NEMA Rating NEMA 3
IP Rating IP54
Max Op. Relative Humidity [%] 90% @ 50°C
Lens Material Acrylic
Adjustments Potentiometer
Barrel Diameter (mm) N/A
Indicator LEDs
Opposed Mode Emitter/Receiver N/A
Feature: Timing (Hold/Delay) No
Feature: Encapsulated No
Feature: Hazardous Area No
Feature: Audible No
Feature: Chemical Resistant No
DeviceNet No
IO Link No
