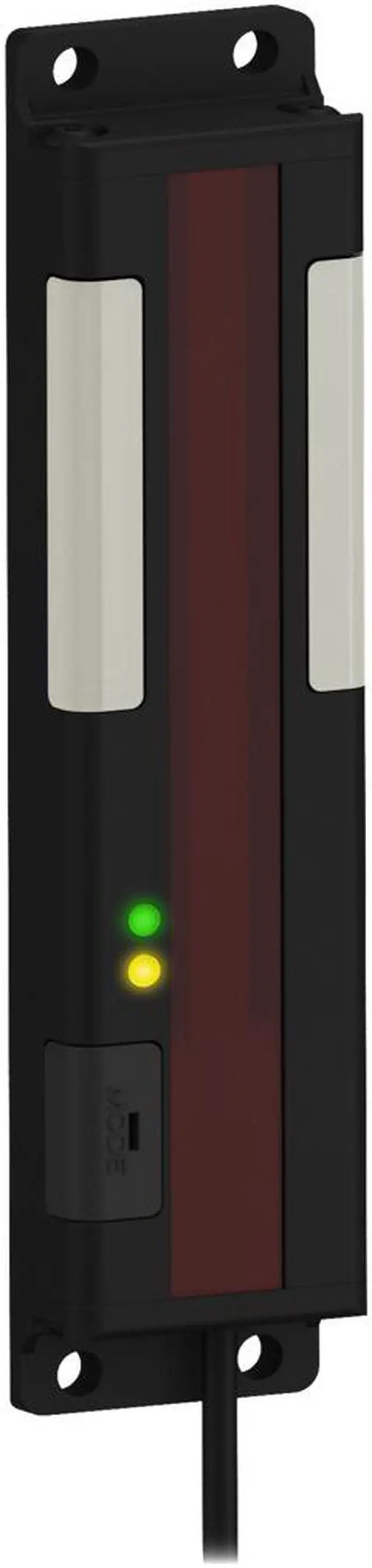

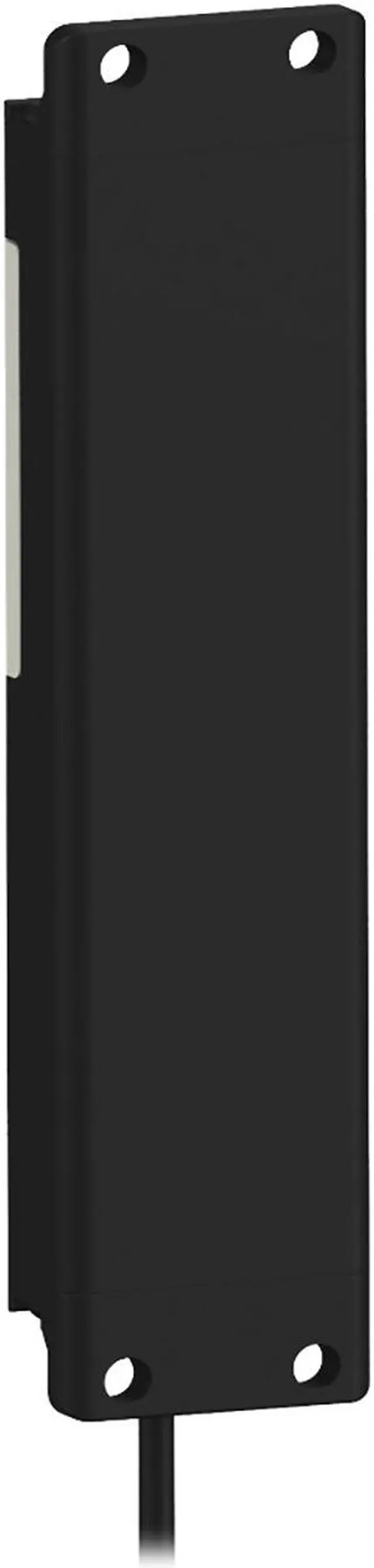

BANNER PVA100P6RQ Light Curtain Receiver Sensor New

PVA Series: 100mm array - Receiver
Range: 2 m; Input: 12 to 30V dc
Output: 1 PNP programmable for LO/DO
Quick-Disconnect Connector
Part Number: 51917
Cable Length (M) 2
Sensing Mode (General) Opposed
Sensing Mode (Detailed) Receiver
Housing Style Flat Mount - Array
Primary Housing Material Aluminum
Actuation Yes
Activation Function Optical
Mounting Thread No Thread
Color Input Control Individual (One Wire/Color, Same Number Of Colors As Input Wires)
Number Of Colors / Segments 1
Product Size (Mm) Other
Color Technology Standard LED
Color Option 1 Green
Animation Option 1 Dip-Switch Controlled
Connection Pigtail QD
Quick Disconnect Type M12 (Euro)
Max Current Color (Ma) 62
Number Of Input Pins/Conductors 4
Operation Normally Open/Normally Closed
Supply Voltage 12-30 V Dc
Output Type PNP
Input Type Bimodal (PNP/NPN)
Max Output Response Time (Ms) 20
Maximum Sensing Distance (Mm) 2000
Sensing Array Length (Mm) 100
Array Length (Mm) 100.0
Physical Dimensions (Lxwxh Or Dxh Mm) 137.8 X 30.0 X 15.0
Beam Spacing (Mm) 25.0
Number Of Beams 5
Environmental Rating IP62
NEMA Type And UL Type Rating NEMA 2
Max Op. Temperature (°C) 50
Primary Housing Color Black
Button Operation Momentary
Primary Window Material Acrylic Clear
Sensing Resolution (Mm) 35.0
Feature: Hazardous Area No
Feature: Audible No
Feature: Chemical Resistant No
IO Link No
Modbus RTU No
Wireless No
Pro-Editor Compatible No
Job Light Green
