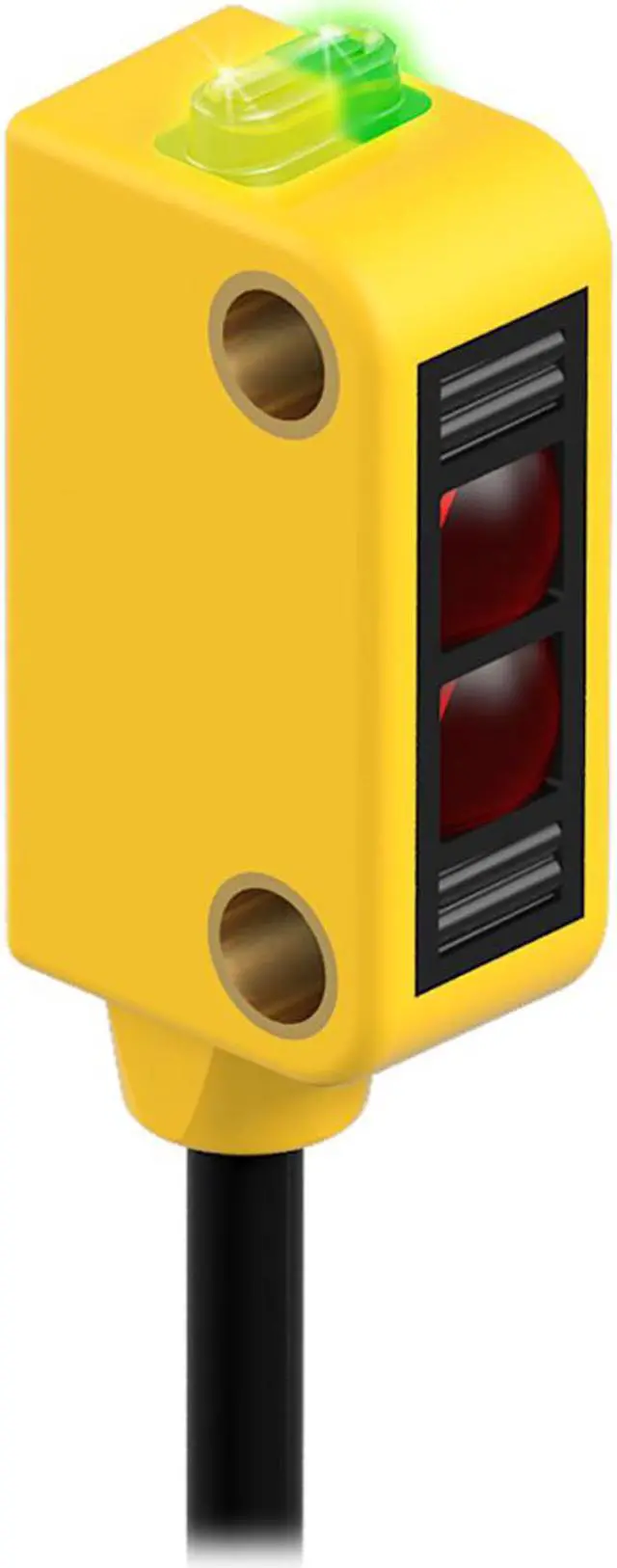

BANNER Q12AB6FF50Q Miniature Self-Contained Sensor New
- BANNER Q12AB6FF50Q Miniature Self-Contained Sensor New
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
WORLD-BEAM Q12 Series: Fixed-Field
Range: 50 mm Cutoff; Input: 10-30V dc
Output: LO (Light Operate) Bipolar: 1 NPN; 1 PNP
Pico (M8) Threaded Pigtail QD
Part Number: 72117
Sensing Beam Visible Red LED
Sensing Mode (General) Proximity
Sensing Mode (Detailed) Background Suppression (Fixed)
Housing Style Rectangular
Primary Housing Material Thermoplastic
Small Visible Spot LED
Input/Output Discrete
Max Sensing Distance (mm) 50
Outputs Bipolar (NPN & PNP)
Power Supply/Supply Voltage 10-30 V dc
Connection Pigtail QD
Quick Disconnect Type M8 (Pico)
Min Op. Temp. (°C) -20
Operation Light Operate
Max Op. Temp. (°C) 55
Output response time (ms) 0.85 ON/OFF
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Sensing Beam Wavelength 640
Delay at Power-up (ms) 120
Repeatability (µs) 175
Number of Pins 4
IP Rating IP67
Max Op. Relative Humidity [%] 95% @ 50°C
Lens Material Polycarbonate
Adjustments N/A
Barrel Diameter (mm) N/A
Indicator LEDs
Range: 50 mm Cutoff; Input: 10-30V dc
Output: LO (Light Operate) Bipolar: 1 NPN; 1 PNP
Pico (M8) Threaded Pigtail QD
Part Number: 72117
Sensing Beam Visible Red LED
Sensing Mode (General) Proximity
Sensing Mode (Detailed) Background Suppression (Fixed)
Housing Style Rectangular
Primary Housing Material Thermoplastic
Small Visible Spot LED
Input/Output Discrete
Max Sensing Distance (mm) 50
Outputs Bipolar (NPN & PNP)
Power Supply/Supply Voltage 10-30 V dc
Connection Pigtail QD
Quick Disconnect Type M8 (Pico)
Min Op. Temp. (°C) -20
Operation Light Operate
Max Op. Temp. (°C) 55
Output response time (ms) 0.85 ON/OFF
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Sensing Beam Wavelength 640
Delay at Power-up (ms) 120
Repeatability (µs) 175
Number of Pins 4
IP Rating IP67
Max Op. Relative Humidity [%] 95% @ 50°C
Lens Material Polycarbonate
Adjustments N/A
Barrel Diameter (mm) N/A
Indicator LEDs
