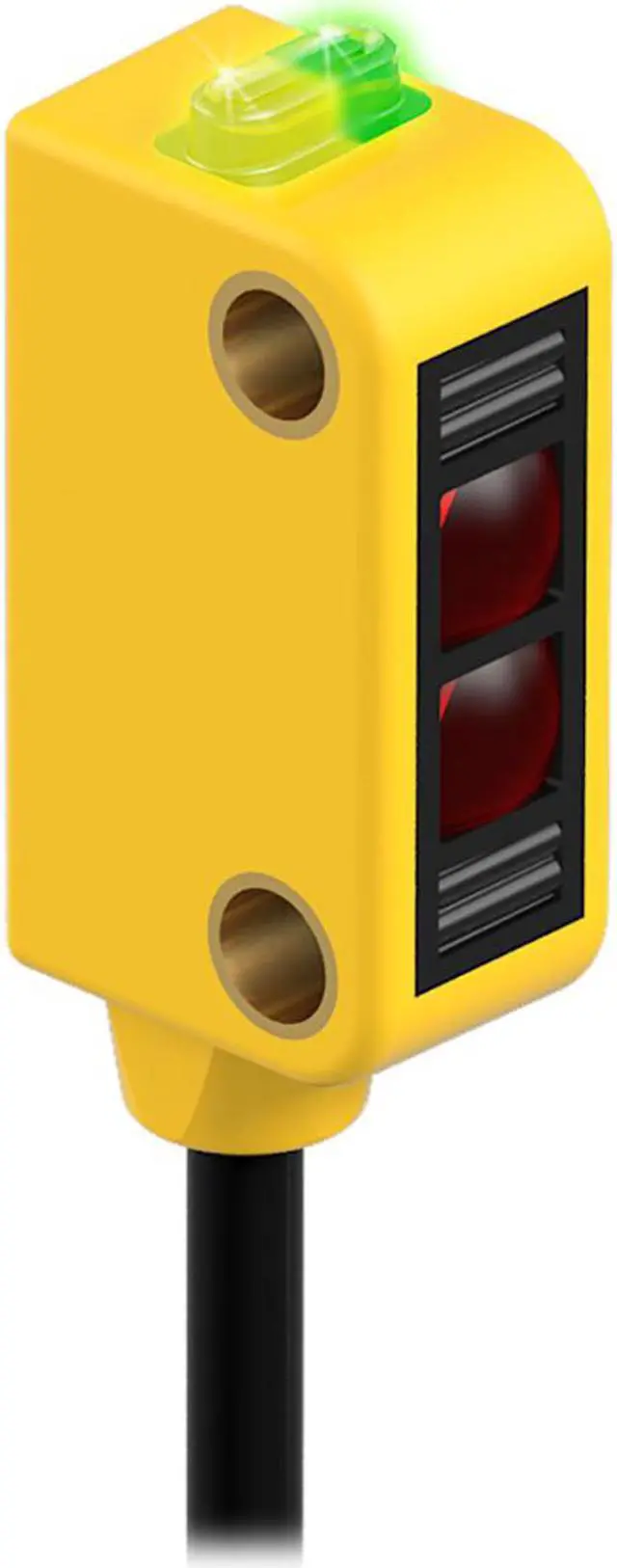

BANNER Q12AP6FF50Q3 Miniature Self-Contained Sensor New
- BANNER Q12AP6FF50Q3 Miniature Self-Contained Sensor New
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
WORLD-BEAM Q12 Series: Fixed-Field
Range: 50 mm; Input: 10-30 V dc
Output: LO; 1 PNP
Pico 3-pin 6 in Pigtail QD
Part Number: 76163
Sensing Beam Visible Red LED
Cable Length (m) 0.15
Sensing Mode (General) Proximity
Sensing Mode (Detailed) Background Suppression (Fixed)
Housing Style Rectangular
Primary Housing Material Thermoplastic
Small Visible Spot LED
Input/Output Discrete
Max Sensing Distance (mm) 50
Outputs PNP
Power Supply/Supply Voltage 10-30 V dc
Connection Pigtail QD
Quick Disconnect Type M8 (Pico)
Min Op. Temp. (°C) -20
Operation Light Operate
Max Op. Temp. (°C) 55
Output response time (ms) 0.85 ON/OFF
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Sensing Beam Wavelength 640
Delay at Power-up (ms) 120
Repeatability (µs) 175
Number of Pins 3
IP Rating IP67
Max Op. Relative Humidity [%] 95% @ 50°C
Lens Material Polycarbonate
Adjustments N/A
Barrel Diameter (mm) N/A
Indicator LEDs
Opposed Mode Emitter/Receiver N/A
Feature: Timing (Hold/Delay) No
Feature: Encapsulated No
Feature: Hazardous Area No
Feature: Audible No
Feature: Chemical Resistant No
DeviceNet No
IO Link No
Range: 50 mm; Input: 10-30 V dc
Output: LO; 1 PNP
Pico 3-pin 6 in Pigtail QD
Part Number: 76163
Sensing Beam Visible Red LED
Cable Length (m) 0.15
Sensing Mode (General) Proximity
Sensing Mode (Detailed) Background Suppression (Fixed)
Housing Style Rectangular
Primary Housing Material Thermoplastic
Small Visible Spot LED
Input/Output Discrete
Max Sensing Distance (mm) 50
Outputs PNP
Power Supply/Supply Voltage 10-30 V dc
Connection Pigtail QD
Quick Disconnect Type M8 (Pico)
Min Op. Temp. (°C) -20
Operation Light Operate
Max Op. Temp. (°C) 55
Output response time (ms) 0.85 ON/OFF
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Sensing Beam Wavelength 640
Delay at Power-up (ms) 120
Repeatability (µs) 175
Number of Pins 3
IP Rating IP67
Max Op. Relative Humidity [%] 95% @ 50°C
Lens Material Polycarbonate
Adjustments N/A
Barrel Diameter (mm) N/A
Indicator LEDs
Opposed Mode Emitter/Receiver N/A
Feature: Timing (Hold/Delay) No
Feature: Encapsulated No
Feature: Hazardous Area No
Feature: Audible No
Feature: Chemical Resistant No
DeviceNet No
IO Link No
