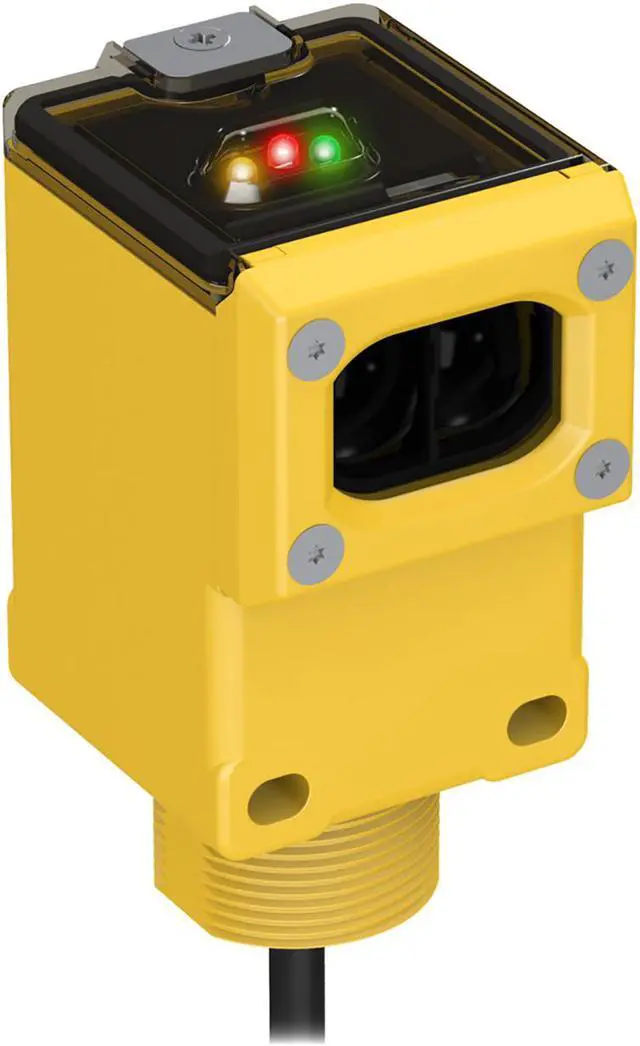

BANNER Q45BB6R Rugged Rectangle Sensor New

Q45 Series: Receiver
Range: 60 m; Input: 10-30V dc
Output: Bipolar: 1 NPN; 1 PNP
2 m (6.5 ft) cable
Part Number: 36562
Sensing Beam Infrared LED
Cable Length (m) 2
Sensing Mode (General) Opposed
Sensing Mode (Detailed) Receiver
Housing Style Rectangular
Primary Housing Material Thermoplastic
Input/Output Discrete
Max Sensing Distance (mm) 60000
Outputs Bipolar (NPN & PNP)
Power Supply/Supply Voltage 10-30 V dc
Connection Cable
Quick Disconnect Type No QD
Operation Light/Dark Operate
Min Op. Temp. (°C) -40
Max Op. Temp. (°C) 70
Output response time (ms) 2 ON/1 OFF
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Delay at Power-up (ms) 100
Repeatability (µs) 250
Number of Pins 4
NEMA Rating NEMA 6P
IP Rating IP67
Max Op. Relative Humidity [%] 90% @ 50°C
Lens Material Acrylic
Adjustments Potentiometer
Barrel Diameter (mm) 30
Indicator LEDs
Opposed Mode Emitter/Receiver Receiver
Feature: Timing (Hold/Delay) Yes
Feature: Encapsulated No
Feature: Hazardous Area No
Feature: Audible No
Feature: Chemical Resistant No
DeviceNet No
IO Link No
