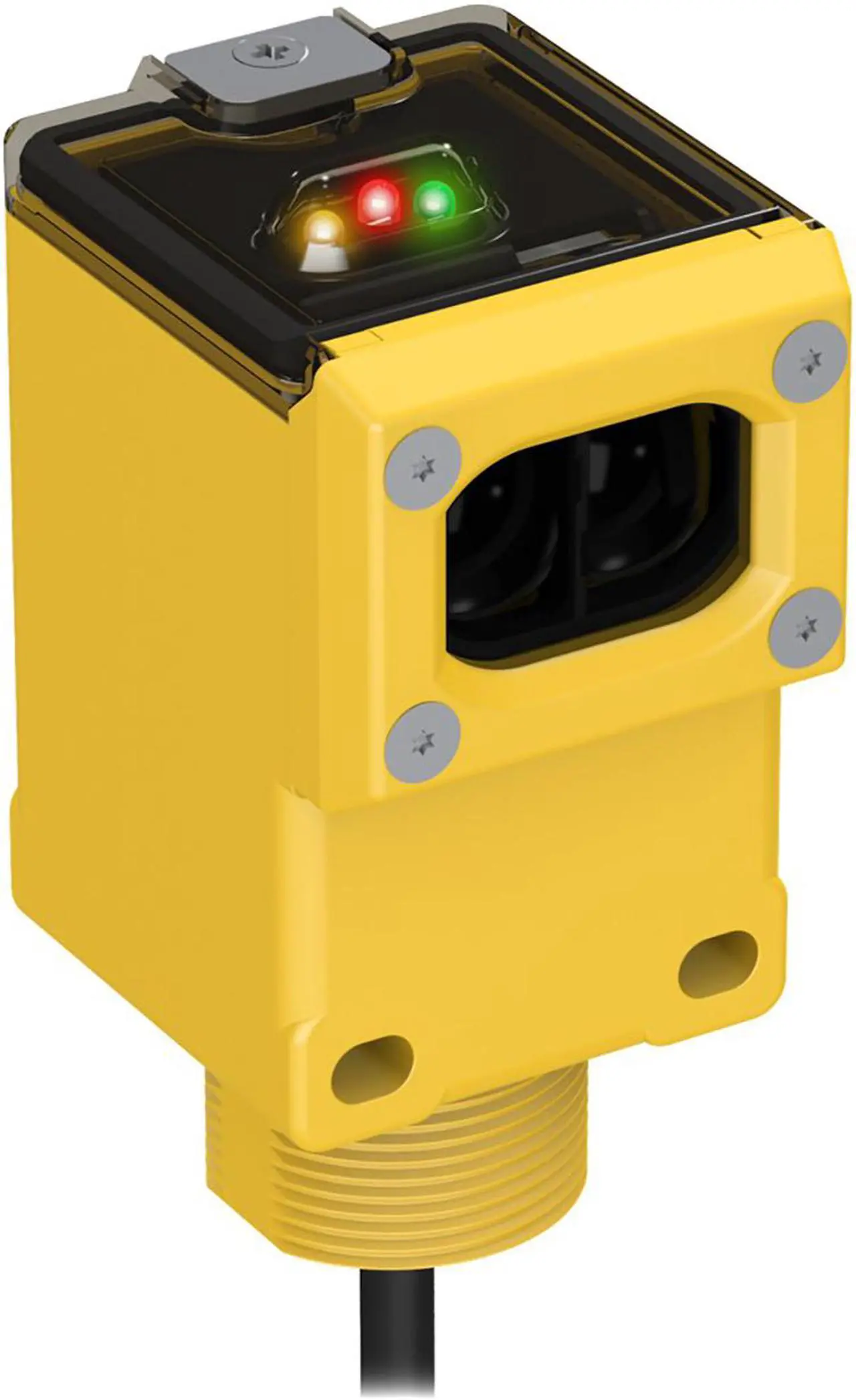

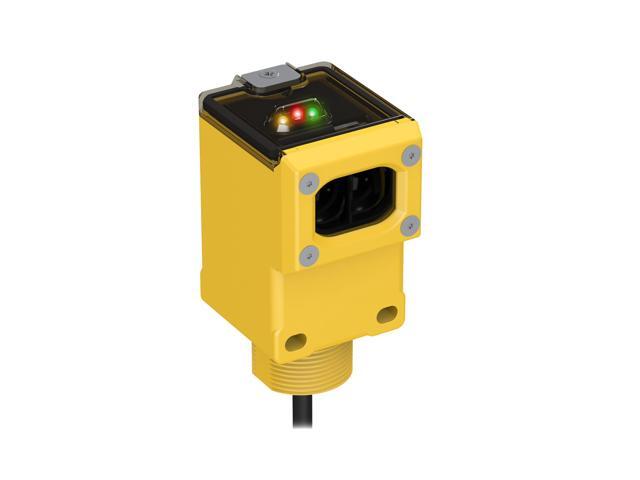

BANNER Q45VR3R Rugged Rectangle Sensor New

Q45 Series: Receiver
Range: 60 m; Input: 12-250V dc / 24-250V ac
Output: SPDT Electromechanical Relay
2 m (6.5 ft) cable
Part Number: 53982
Sensing Beam Infrared LED
Cable Length (m) 2
Sensing Mode (General) Opposed
Sensing Mode (Detailed) Receiver
Housing Style Rectangular
Primary Housing Material Thermoplastic
Input/Output E/M Relay
Max Sensing Distance (mm) 60000
Outputs SPDT e/m Relay
Power Supply/Supply Voltage 12-250 V dc or 24-250 V ac
Connection Cable
Quick Disconnect Type No QD
Operation Light/Dark Operate
Min Op. Temp. (°C) -25
Max Op. Temp. (°C) 55
Output response time (ms) 15
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Delay at Power-up (ms) 100
Repeatability (µs) 250
Number of Pins 5
NEMA Rating NEMA 6P
IP Rating IP67
Max Op. Relative Humidity [%] 90% @ 50°C
Lens Material Acrylic

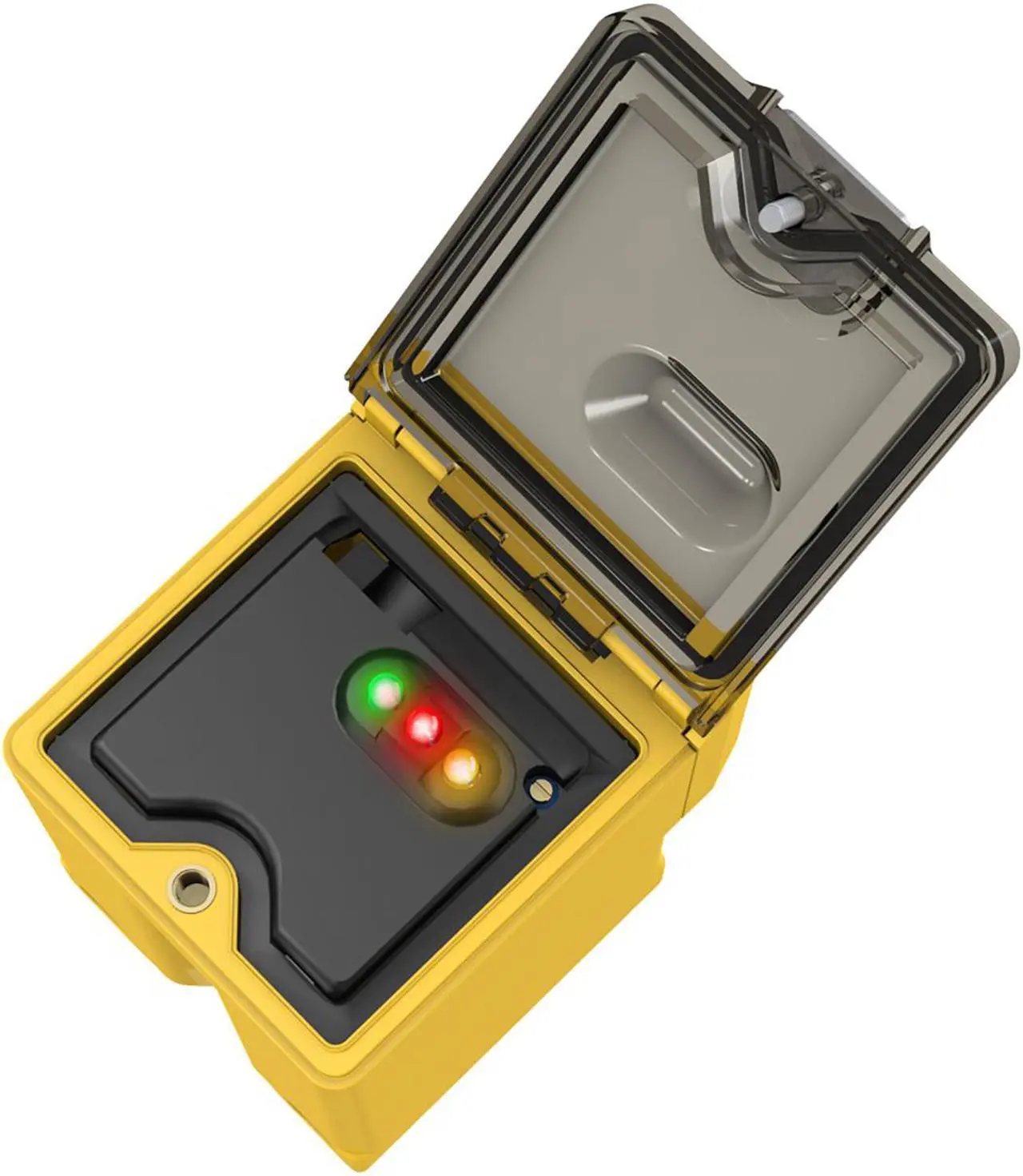

Adjustments Potentiometer
Barrel Diameter (mm) 30
Indicator LEDs
Opposed Mode Emitter/Receiver Receiver
Feature: Timing (Hold/Delay) Yes
Feature: Encapsulated No
Feature: Hazardous Area No
Feature: Audible No
Feature: Chemical Resistant No
DeviceNet No
IO Link No
