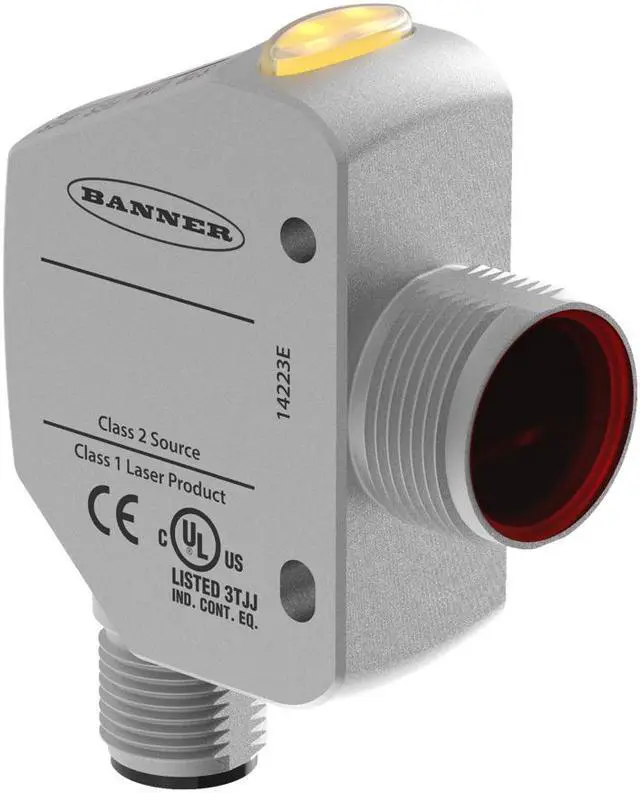

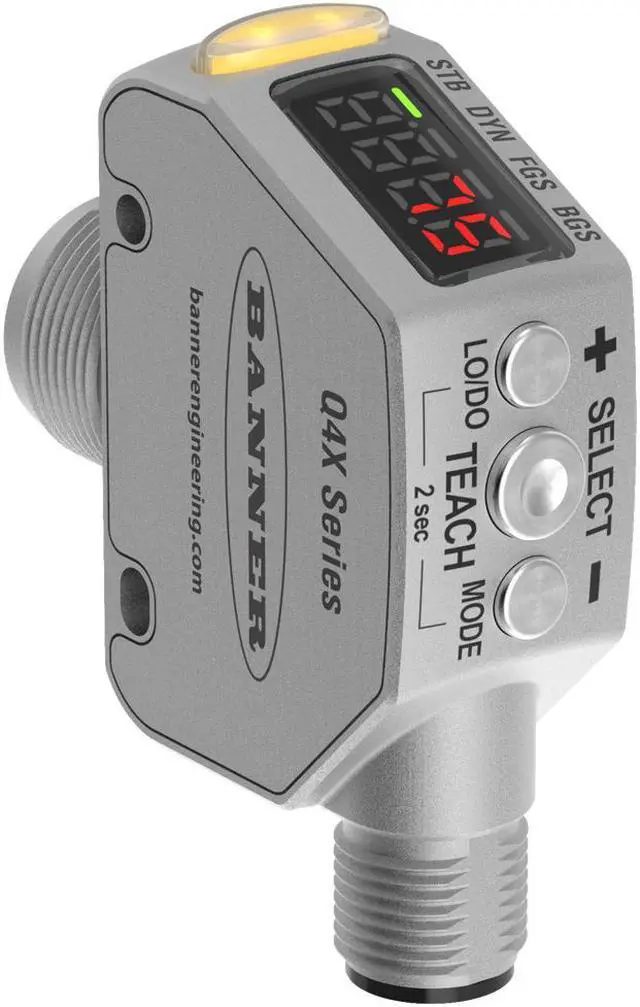

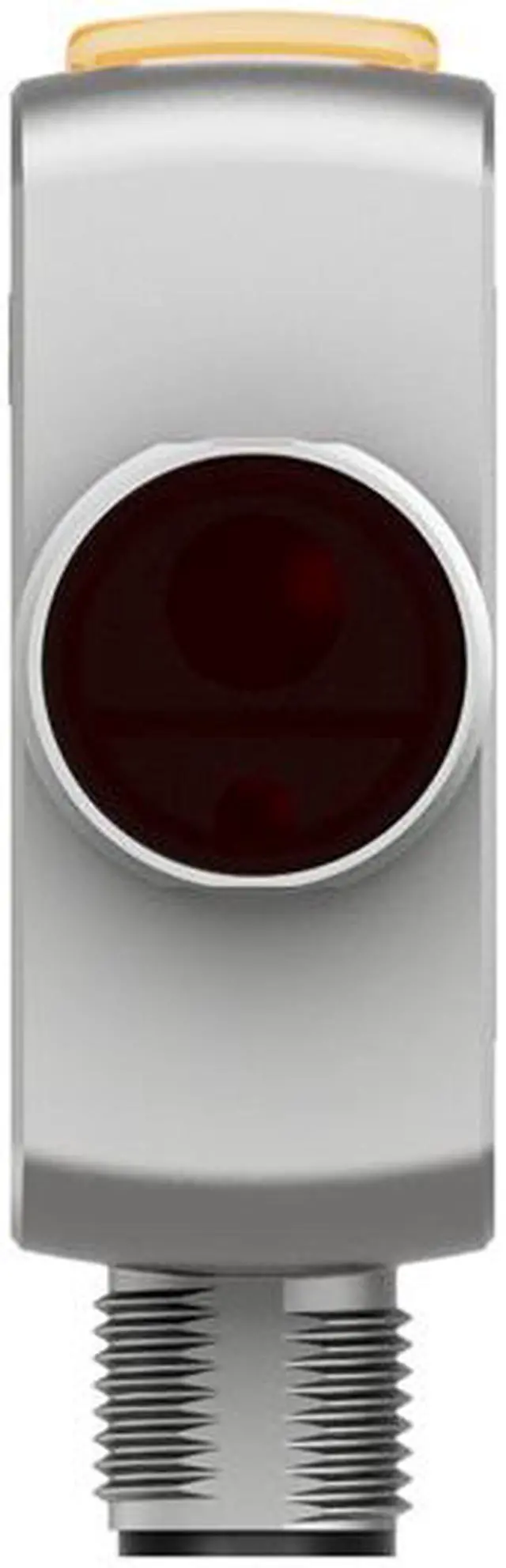

BANNER Q4XFPCOD310-Q8-REMOTE Rugged Laser Distance Sensor New

Q4X Series: Clear Object
Range: 310 mm; Input 10-30 V dc
Outputs: 1 PNP
Connection: Euro M12 4-Pin Integral Connector
Flush Mount Housing
Sensing Beam Visible Red Laser
PC Configurable No
Sensing Mode (General) Proximity
Sensing Mode (Detailed) Background/Foreground Suppression
Housing Style Rectangular
Primary Housing Material Stainless Steel
Laser Classification Class 1
Input/Output Discrete
Indicator Display; LED(s)
Connection Integral QD
Quick Disconnect Type M12 (Euro)
Max Sensing Distance (mm) 310
Minimum Sensing Distance (mm) 35
Sensing Beam Visible Red Laser
Power Supply 10-30 V dc
Delay at Power-up (ms) 750
Sensing Beam Wavelength (nm) 655
Adjustments Push Button; Remote Teach
Number of Pins 4
Vibration MIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Mechanical Shock MIL-STD-202G, Meth. 213B, Cond. I (100G 6x along X, Y & Z axes, 18 total shocks) w/ sensor operating
Output Saturation Voltage PNP Outputs <1.5 V @ 100 mA
Max Discrete (Switched) Output (mA) 100
Discrete (Switched) Outputs 1 PNP
Output Protection Protected against continuous overload and short circuit
IP Rating IP67; IP68; IP69
Storage Temperature (°C) -25 to 75
Max Operating Temperature (°C) 50
Min Operating Temperature (°C) -10
Max Op. Relative Humidity Non-Condensing (%) 95 at 55°C
Window Material Acrylic
Warm-up Time (minutes) 10
Minimum Response Time (ms) 1.5
Spot Size (@ Reference Distance) 2.0 mm x 0.8 mm @ 300 mm
Analog Linearity (mm) +/- 0.75 mm from 25 to 50 mm, 9.0 mm at 300 mm
Laser Control Yes
Alarm Output (mA) 100
Max Ambient Light (Lux) 5000
Max Off-state Leakage Current (µA) 5 @ 30 V dc
Power/Current Consumption (exclusive of load) < 675 mW
Supply Protection Circuitry Protected against reverse polarity and transient overvoltages
