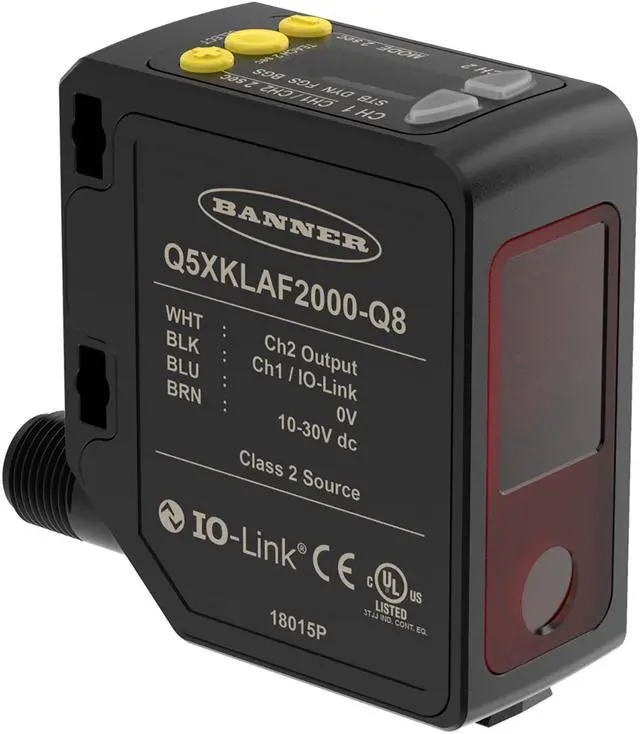

BANNER Q5XKLAF2000-Q8-JAM Q5X High Power, Multi-Function Laser Sensor New

Q5X Series: Laser Adjustable Field
Range: 95 to 2000 mm; Input 10-30 V dc
Output: 1 PNP/NPN with IO-Link; 1 PNP/NPN Multi-Function I/O
Connection: Euro M12 4-pin Rotatable Connector
Sensing Beam Visible Red Laser
PFM Output Yes
Jam Detection Yes
PC Configurable No
Sensing Mode (General) Proximity
Sensing Mode (Detailed) Background/Foreground Suppression
Housing Style Rectangular
Device Type Sensor
Primary Housing Material ABS
Laser Classification Class 2
Input/Output Discrete

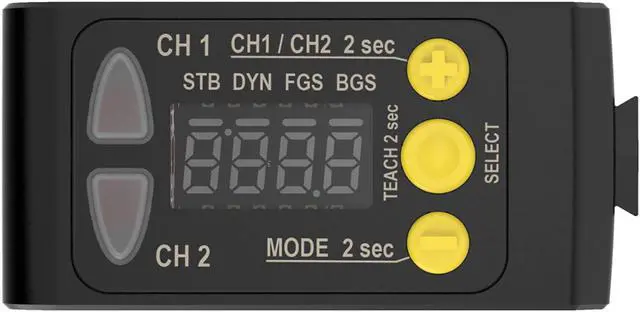

Indicator Display; LED(s)
Connection Integral QD
Analog Resolution/Discrete Repeatability 95mm to 300mm: +/-0.5; 300mm to 1m: +/- 0.25% of range;1m to 2m: +/- 0.5% of range
Quick Disconnect Type M12 (Euro)
Max Sensing Distance (mm) 2000
Minimum Sensing Distance (mm) 95
Sensing Beam Visible Red Laser
Power Supply 10-30 V dc
Delay at Power-up (ms) 2500
Sensing Beam Wavelength (nm) 650
Adjustments Push Button; Remote Teach
Temperature Effect (mm/°C) < +/- 0.5 mm/°C < 500 mm,< +/- 1.0 mm/°C at < 1000 mm, < +/- 2.0 mm/°C at < 2000 mm
Number of Pins 4
Vibration MIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Mechanical Shock MIL-STD-202G, Meth. 213B, Cond. I (100G 6x along X, Y & Z axes, 18 total shocks) w/ sensor operating
Output Saturation Voltage NPN Outputs < 2.5 V @ 50 mA
Output Saturation Voltage PNP Outputs < 2.5 V @ 50 mA
Max Discrete (Switched) Output (mA) 50
Discrete (Switched) Outputs 2 NPN/PNP Configurable
Output Protection Protected against continuous overload and short circuit
IP Rating IP67
Storage Temperature (°C) -25 to 70
Max Operating Temperature (°C) 50
Min Operating Temperature (°C) -10
Max Op. Relative Humidity Non-Condensing (%) 95 at 50°C
Window Material PMMA
Warm-up Time (minutes) 10
Minimum Response Time (ms) 3
Spot Size (@ Reference Distance) 6.0 mm x 3.6 mm @ 2000 mm
Minimum Window Size (mm) 1
Discrete Output Hysteresis (mm) Automatically adjusted
Laser Control Yes
Max Ambient Light (Lux) up to 5000 lux at 1000 mm and up to 2000 lux at 2000 mm
Power/Current Consumption (exclusive of load) < 1 W
Supply Protection Circuitry Protected against reverse polarity and transient overvoltages
