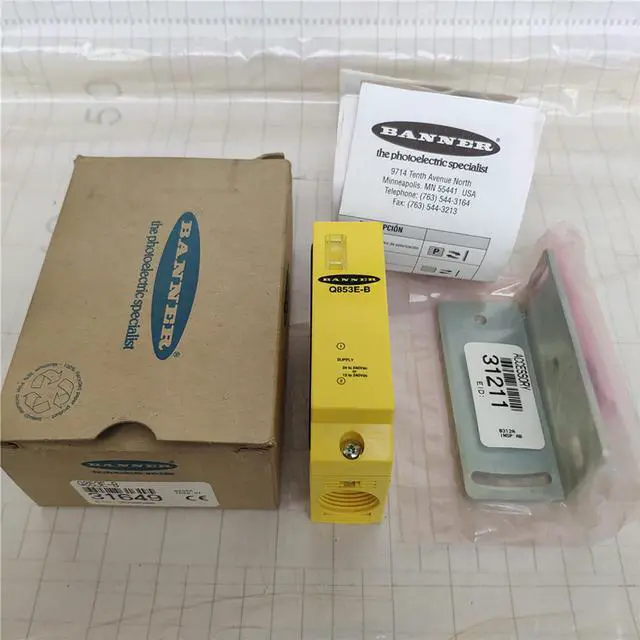

BANNER Q853E-B Photoelectric Sensor New
- BANNER Q853E-B Photoelectric Sensor New
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Q853E Emitter
Range: 23 m; Input: 12-240V dc or 24-240V ac
Output: Not Applicable
2 m Cable
Part Number: 31649
Sensing Beam Visible Red LED
Sensing Mode (General) Opposed
Sensing Mode (Detailed) Emitter
Housing Style Rectangular
Primary Housing Material Thermoplastic
Max Sensing Distance (mm) 23000
Outputs N/A
Power Supply/Supply Voltage 12-240 V dc or 24-240 V ac
Connection Other
Quick Disconnect Type No QD
Operation N/A
Min Op. Temp. (°C) -25
Max Op. Temp. (°C) 55
Output response time (ms) 20
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Sensing Beam Wavelength 680
Delay at Power-up (ms) N/A
Repeatability (µs) N/A
Number of Pins 2
NEMA Rating NEMA 13
IP Rating IP67
Max Op. Relative Humidity [%] 90% @ 50°C
Lens Material Acrylic
Adjustments Potentiometer
Barrel Diameter (mm) N/A
Indicator LEDs
Opposed Mode Emitter/Receiver Emitter
Feature: Timing (Hold/Delay) No
Feature: Encapsulated No
Feature: Hazardous Area No
Feature: Audible No
Feature: Chemical Resistant No
DeviceNet No
IO Link No
Range: 23 m; Input: 12-240V dc or 24-240V ac
Output: Not Applicable
2 m Cable
Part Number: 31649
Sensing Beam Visible Red LED
Sensing Mode (General) Opposed
Sensing Mode (Detailed) Emitter
Housing Style Rectangular
Primary Housing Material Thermoplastic
Max Sensing Distance (mm) 23000
Outputs N/A
Power Supply/Supply Voltage 12-240 V dc or 24-240 V ac
Connection Other
Quick Disconnect Type No QD
Operation N/A
Min Op. Temp. (°C) -25
Max Op. Temp. (°C) 55
Output response time (ms) 20
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Sensing Beam Wavelength 680
Delay at Power-up (ms) N/A
Repeatability (µs) N/A
Number of Pins 2
NEMA Rating NEMA 13
IP Rating IP67
Max Op. Relative Humidity [%] 90% @ 50°C
Lens Material Acrylic
Adjustments Potentiometer
Barrel Diameter (mm) N/A
Indicator LEDs
Opposed Mode Emitter/Receiver Emitter
Feature: Timing (Hold/Delay) No
Feature: Encapsulated No
Feature: Hazardous Area No
Feature: Audible No
Feature: Chemical Resistant No
DeviceNet No
IO Link No
