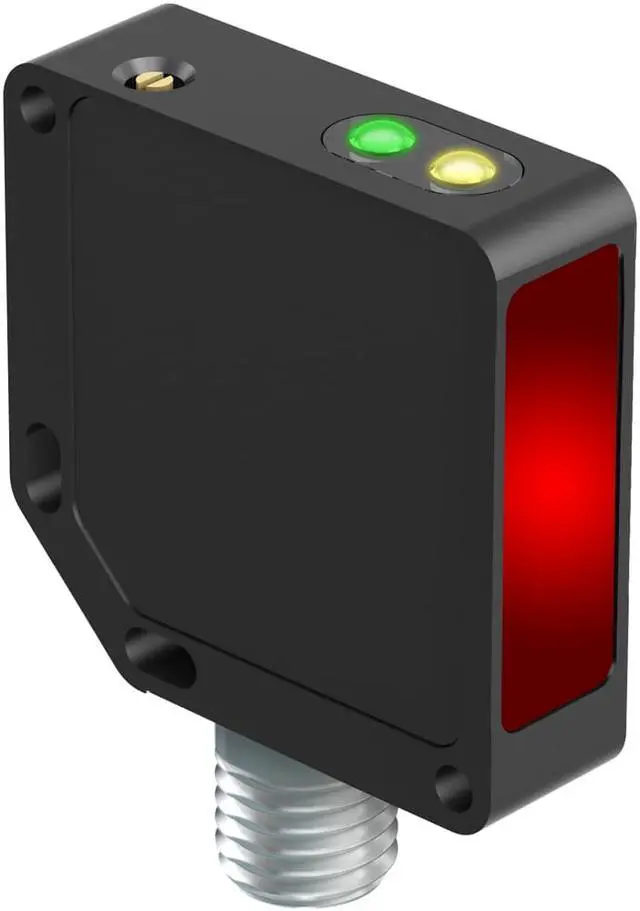

BANNER QMT42VP6FF500Q Easy Mount Rectangular Housing Sensor

QMT42 Series: Fixed Field
Range: 500 mm; Input: 10-30 V dc
Output: SPDT (Complementary) PNP
Euro M12 4-pin Integral QD
Part Number: 49230
Sensing Beam Infrared LED
Sensing Mode (General) Proximity
Sensing Mode (Detailed) Background Suppression (Fixed)
Housing Style Rectangular
Primary Housing Material Zinc Alloy Die-Cast
Input/Output Discrete
Max Sensing Distance (mm) 500
Outputs PNP
Power Supply/Supply Voltage 10-30 V dc
Connection Integral QD
Quick Disconnect Type M12 (Euro)
Operation Light/Dark Operate
Min Op. Temp. (°C) -20
Max Op. Temp. (°C) 55
Output response time (ms) 1
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Sensing Beam Wavelength 880
Delay at Power-up (ms) 100
Repeatability (µs) 250
Number of Pins 4
NEMA Rating NEMA 6
IP Rating IP67
Max Op. Relative Humidity [%] 90% @ 50°C
Lens Material Acrylic
Adjustments N/A
Barrel Diameter (mm) N/A
Indicator LEDs
Opposed Mode Emitter/Receiver N/A
Feature: Timing (Hold/Delay) No
Feature: Encapsulated No
Feature: Hazardous Area No
Feature: Audible No
Feature: Chemical Resistant No
DeviceNet No
IO Link No
