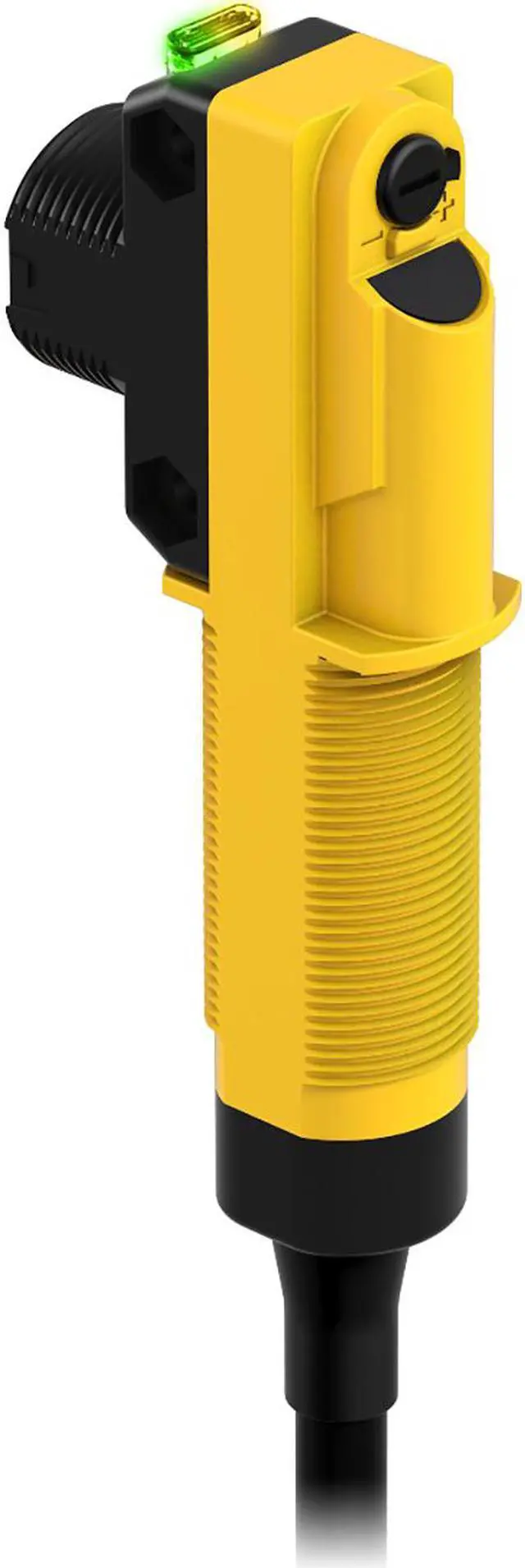

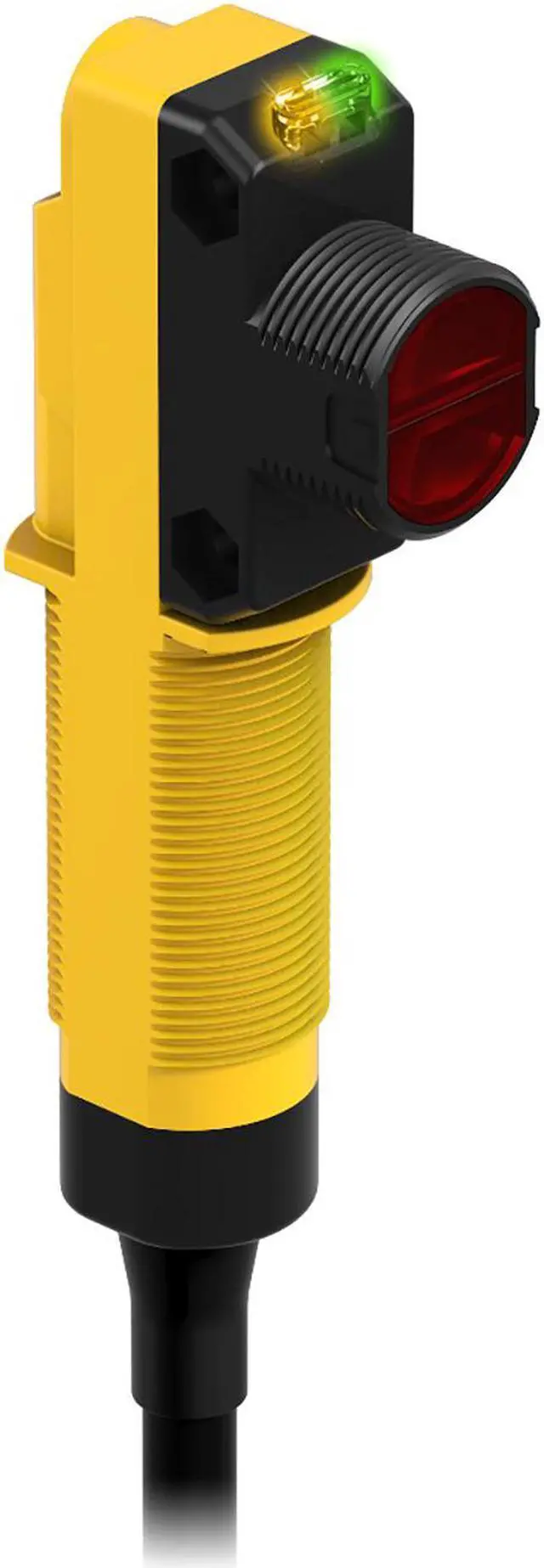

BANNER QS18APWLPQ2 All Purpose Photoelectric Sensor New
- BANNER QS18APWLPQ2 All Purpose Photoelectric Sensor New
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
WORLD-BEAM QS18 Universal Volt; Polar Retro Visble
Range: 3.5 m; Input: 20 to 140V ac/dc
Output: LO; P-MOSFET (Sourcing)
150mm Pigtail Micro Pigtail QD Connector
Sensing Beam Visible Red LED
Sensing Mode (General) Retroreflective
Sensing Mode (Detailed) Polarized
Housing Style Rectangular w/M18 Mount
Primary Housing Material ABS
Input/Output Discrete
Max Sensing Distance (mm) 3500
Outputs P-MOSFET (Sourcing)
Power Supply/Supply Voltage 20-140 V ac/dc
Connection Pigtail QD
Quick Disconnect Type 1/2 in. (Micro)
Min Op. Temp. (°C) -25
Operation Light Operate
Max Op. Temp. (°C) 70
Output response time (ms) 8.3
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Sensing Beam Wavelength 630
Delay at Power-up (ms) 100ms dc, 300ms ac
Repeatability (µs) 1500
Number of Pins 4
NEMA Rating NEMA 6
IP Rating IP67
Max Op. Relative Humidity [%] 95% @ 55°C
Lens Material PMMA
Adjustments Potentiometer
Barrel Diameter (mm) 18
Indicator LEDs
Range: 3.5 m; Input: 20 to 140V ac/dc
Output: LO; P-MOSFET (Sourcing)
150mm Pigtail Micro Pigtail QD Connector
Sensing Beam Visible Red LED
Sensing Mode (General) Retroreflective
Sensing Mode (Detailed) Polarized
Housing Style Rectangular w/M18 Mount
Primary Housing Material ABS
Input/Output Discrete
Max Sensing Distance (mm) 3500
Outputs P-MOSFET (Sourcing)
Power Supply/Supply Voltage 20-140 V ac/dc
Connection Pigtail QD
Quick Disconnect Type 1/2 in. (Micro)
Min Op. Temp. (°C) -25
Operation Light Operate
Max Op. Temp. (°C) 70
Output response time (ms) 8.3
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Sensing Beam Wavelength 630
Delay at Power-up (ms) 100ms dc, 300ms ac
Repeatability (µs) 1500
Number of Pins 4
NEMA Rating NEMA 6
IP Rating IP67
Max Op. Relative Humidity [%] 95% @ 55°C
Lens Material PMMA
Adjustments Potentiometer
Barrel Diameter (mm) 18
Indicator LEDs
