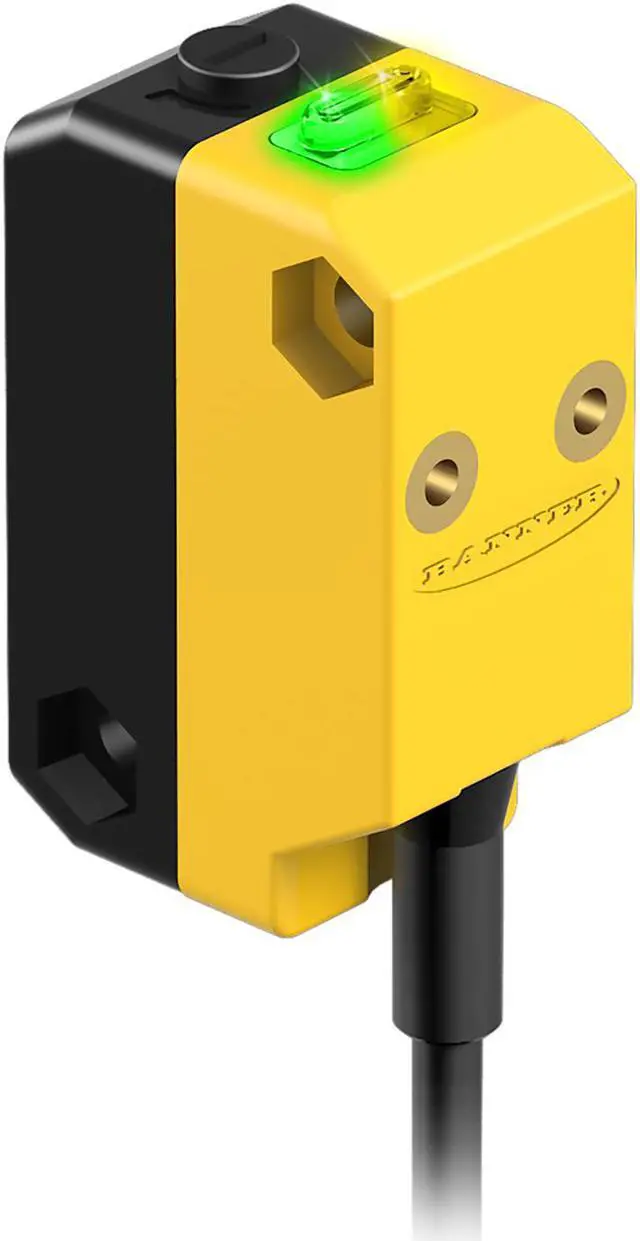

BANNER QS18VP6AF100Q5 All Purpose Photoelectric Sensor New
- BANNER QS18VP6AF100Q5 All Purpose Photoelectric Sensor New
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
WORLD-BEAM: Adjustable Field
Range:1-100mm Adj Cutoff:20-100mm; Input:10-30V dc
Outputs: Complementary PNP
6 in Pigtail EURO-Style Pigtail QD Connector
Sensing Beam Visible Red LED
Sensing Mode (General) Proximity
Sensing Mode (Detailed) Background Suppression (Adjustable)
Housing Style Rectangular
Primary Housing Material ABS
Input/Output Discrete
Max Sensing Distance (mm) 100
Outputs PNP
Power Supply/Supply Voltage 10-30 V dc
Connection Pigtail QD
Quick Disconnect Type M12 (Euro)
Operation Light/Dark Operate
Max Op. Temp. (°C) 55
Output response time (ms) 0.7
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Sensing Beam Wavelength 640
Delay at Power-up (ms) 200
Repeatability (µs) 175
Number of Pins 4
NEMA Rating NEMA 6
IP Rating IP67
Max Op. Relative Humidity [%] 95% @ 50°C
Lens Material Acrylic
Adjustments Mechanical Screw
Barrel Diameter (mm) N/A
Indicator LEDs
Opposed Mode Emitter/Receiver N/A
Range:1-100mm Adj Cutoff:20-100mm; Input:10-30V dc
Outputs: Complementary PNP
6 in Pigtail EURO-Style Pigtail QD Connector
Sensing Beam Visible Red LED
Sensing Mode (General) Proximity
Sensing Mode (Detailed) Background Suppression (Adjustable)
Housing Style Rectangular
Primary Housing Material ABS
Input/Output Discrete
Max Sensing Distance (mm) 100
Outputs PNP
Power Supply/Supply Voltage 10-30 V dc
Connection Pigtail QD
Quick Disconnect Type M12 (Euro)
Operation Light/Dark Operate
Max Op. Temp. (°C) 55
Output response time (ms) 0.7
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Sensing Beam Wavelength 640
Delay at Power-up (ms) 200
Repeatability (µs) 175
Number of Pins 4
NEMA Rating NEMA 6
IP Rating IP67
Max Op. Relative Humidity [%] 95% @ 50°C
Lens Material Acrylic
Adjustments Mechanical Screw
Barrel Diameter (mm) N/A
Indicator LEDs
Opposed Mode Emitter/Receiver N/A
