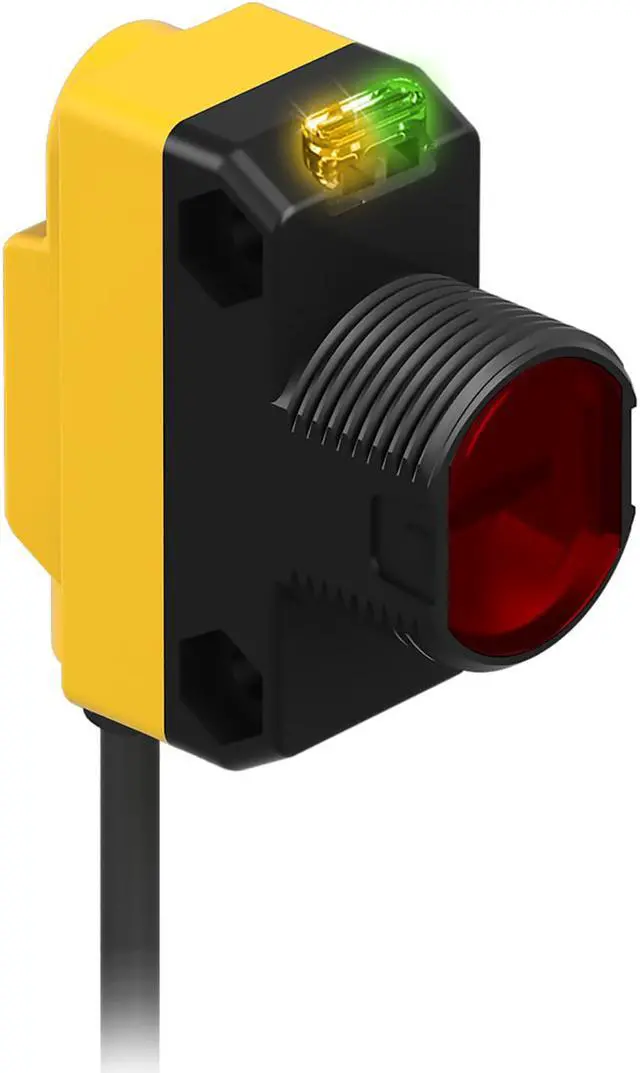

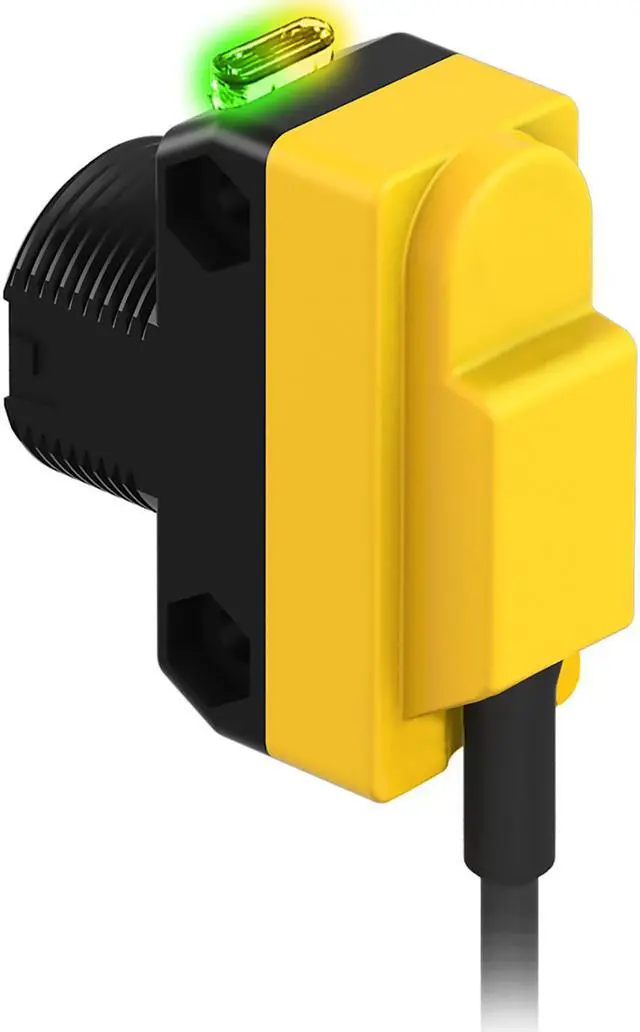

BANNER QS18VP6RQ5 All Purpose Photoelectric Sensor New

WORLD-BEAM QS18 Series: Receiver
Range: 20m; Input: 10-30V dc
Output: Complementary Solid State PNP
6 in Pigtail EURO-Style Pigtail QD Connector
Part Number: 64584
Sensing Beam Visible Red or IR
Sensing Mode (General) Opposed
Sensing Mode (Detailed) Receiver
Housing Style Rectangular w/M18 Mount
Primary Housing Material ABS
Input/Output Discrete
Max Sensing Distance (mm) 20000
Outputs PNP
Power Supply/Supply Voltage 10-30 V dc
Connection Pigtail QD
Quick Disconnect Type M12 (Euro)
Min Op. Temp. (°C) -20
Operation Light/Dark Operate
Max Op. Temp. (°C) 70
Output response time (ms) 0.75 ON/0.375 OFF
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Delay at Power-up (ms) 100
Repeatability (µs) 100
Number of Pins 4
NEMA Rating NEMA 6
IP Rating IP67
Max Op. Relative Humidity [%] 95% @ 50°C
Lens Material Acrylic
Adjustments N/A
Barrel Diameter (mm) 18
Indicator LEDs
Opposed Mode Emitter/Receiver Receiver
Feature: Timing (Hold/Delay) No
Feature: Encapsulated No
Feature: Hazardous Area No
Feature: Audible No
Feature: Chemical Resistant No
DeviceNet No
IO Link No
