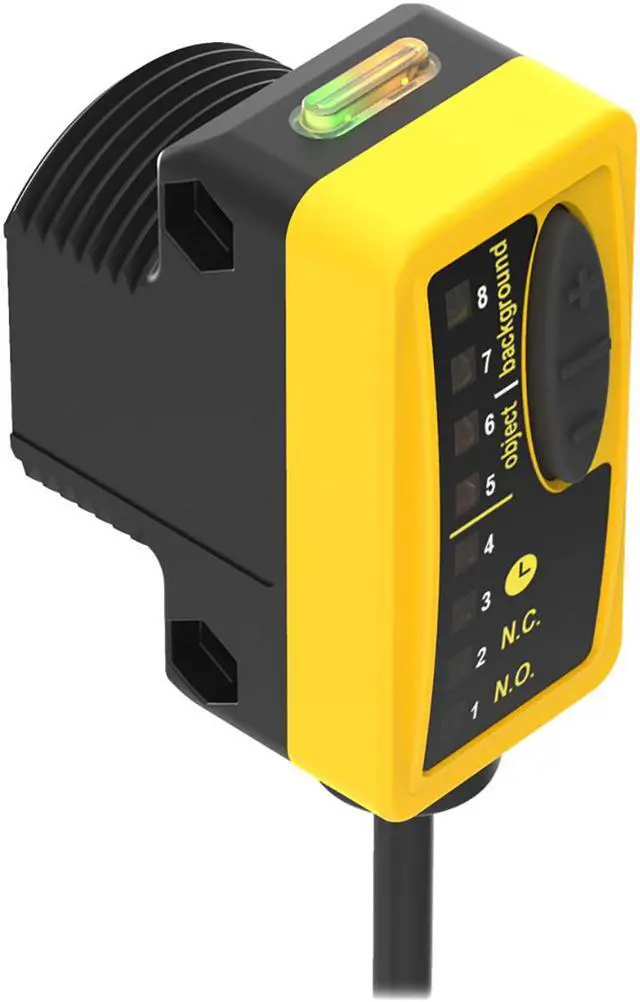

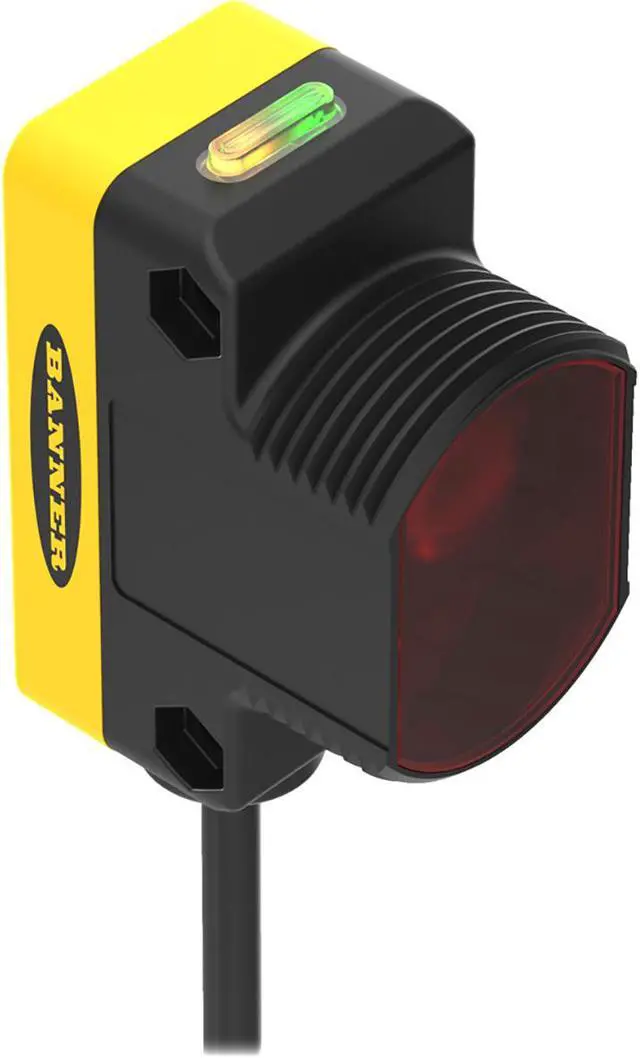

BANNER QS30AF Photoelectric Sensor Switch New

WORLD-BEAM QS30 Series: Adjustable-Field
Range: 50 to 300mm; Input: 10-30V dc
Output: Bipolar: 1 NPN; 1 PNP
2 m (6.5 ft) Cable
Part Number: 70289
Sensing Beam Visible Red LED
Cable Length (m) 2
Sensing Mode (General) Proximity
Sensing Mode (Detailed) Background Suppression (Adjustable)
Housing Style Rectangular w/M30 Mount
Primary Housing Material Thermoplastic
Input/Output Discrete
Max Sensing Distance (mm) 300
Outputs Bipolar (NPN & PNP)
Power Supply/Supply Voltage 10-30 V dc
Connection Cable
Quick Disconnect Type No QD
Min Op. Temp. (°C) -10
Operation Light/Dark Operate
Max Op. Temp. (°C) 55
Output response time (ms) 1
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach Yes
Special Feature: Water Detection No
Sensing Beam Wavelength 660
Delay at Power-up (ms) 250
Repeatability (µs) 170
Number of Pins 5
NEMA Rating NEMA 6
IP Rating IP67
Max Op. Relative Humidity [%] 90% @ 55°C
Lens Material Acrylic
Adjustments Teach Button
Barrel Diameter (mm) 30
Indicator Bargraph
Opposed Mode Emitter/Receiver N/A
Feature: Timing (Hold/Delay) Yes
Feature: Encapsulated No
Feature: Hazardous Area No
Feature: Audible No
Feature: Chemical Resistant No
DeviceNet No
IO Link No
