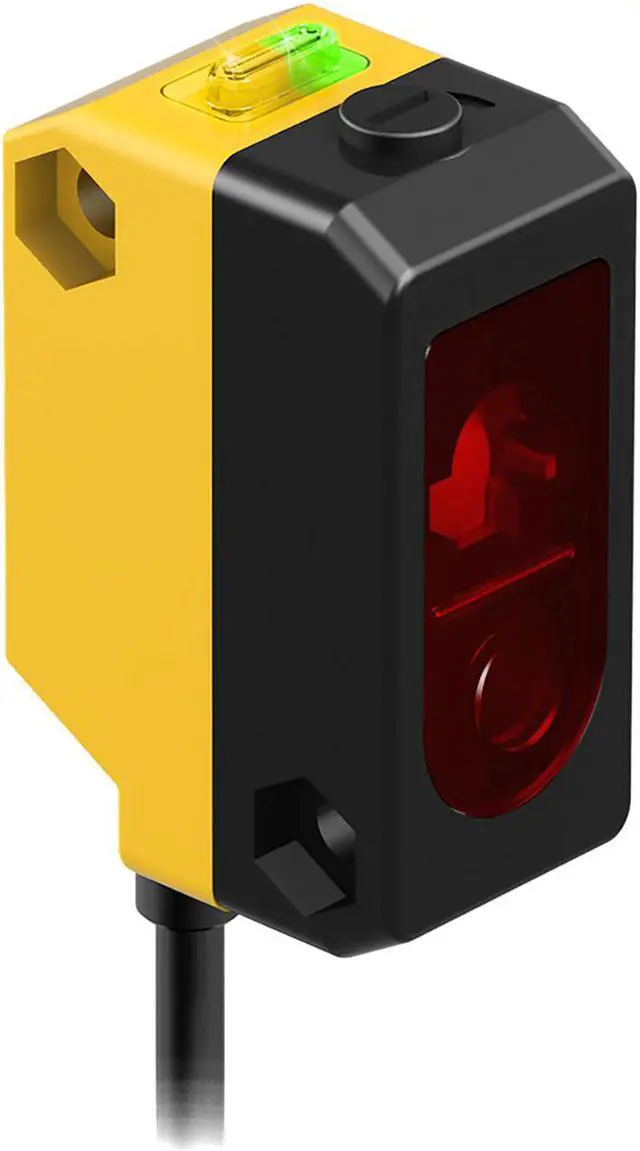

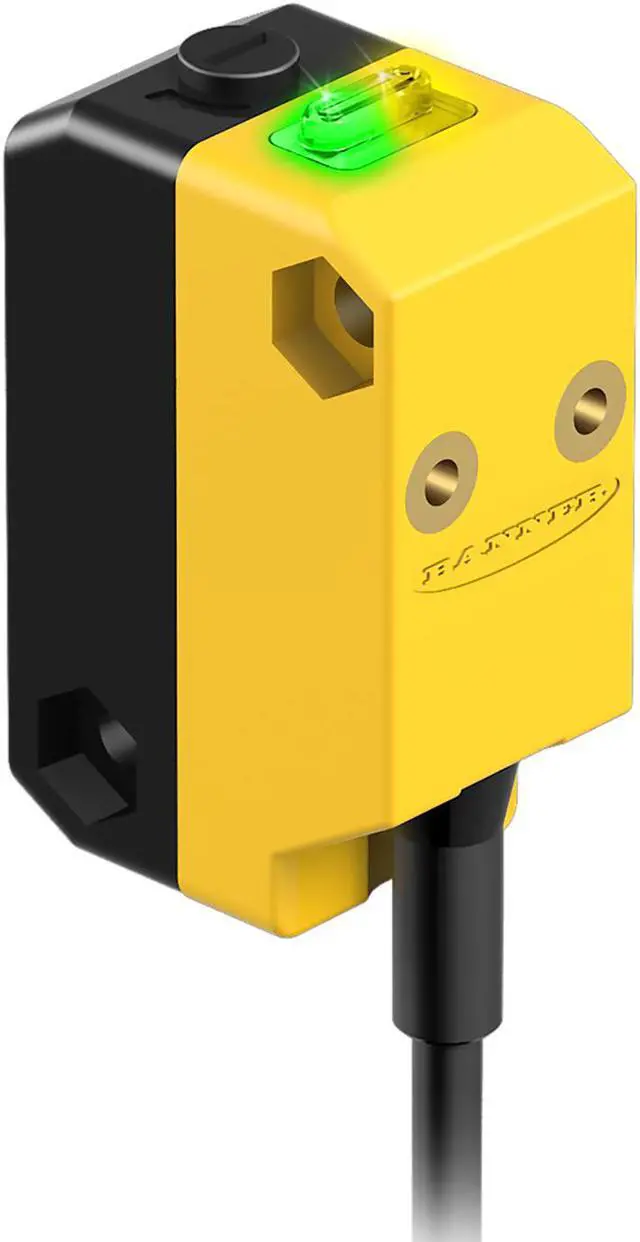

BANNER QS30EX All Purpose Photoelectric Sensor New

WORLD-BEAM QS18 Series: Laser Adjustable-Field
Range: Cutoff Adjusts Between 30-150 mm; 10-30V dc
Output: Complementary Solid State PNP
6 in Pigtail Euro-Style Pigtail QD Connector
Part Number: 73191
Sensing Beam Visible Red Laser
Sensing Mode (General) Proximity
Sensing Mode (Detailed) Background Suppression (Adjustable)
Housing Style Rectangular
Primary Housing Material ABS
Small Visible Spot Laser
Laser Classification Class 1
Input/Output Discrete
Max Sensing Distance (mm) 150
Outputs PNP
Power Supply/Supply Voltage 10-30 V dc
Connection Pigtail QD
Quick Disconnect Type M12 (Euro)
Min Op. Temp. (°C) -10
Operation Light/Dark Operate
Max Op. Temp. (°C) 50
Output response time (ms) 0.7
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Sensing Beam Wavelength 650
Delay at Power-up (ms) 200
Repeatability (µs) 130
Number of Pins 4
NEMA Rating NEMA 6
IP Rating IP67
Max Op. Relative Humidity [%] 95% @ 50°C
Lens Material Acrylic
Adjustments Mechanical Screw
Barrel Diameter (mm) N/A
Indicator LEDs
