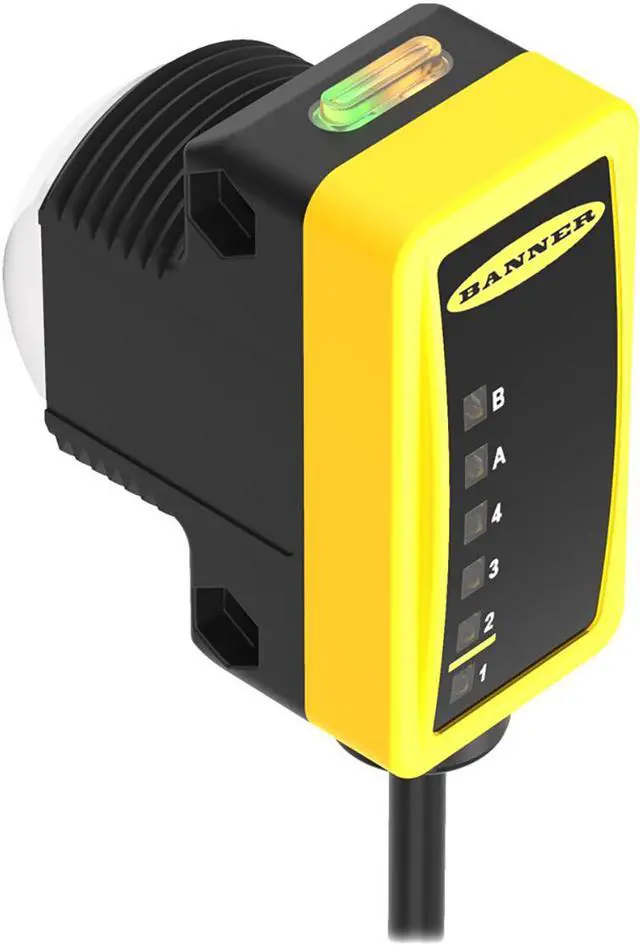

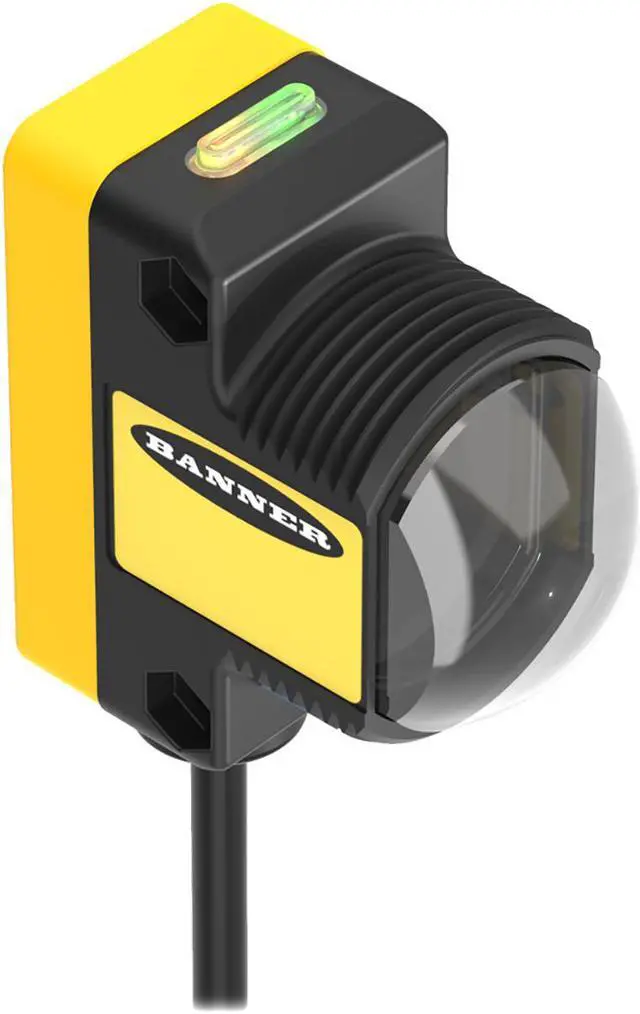

BANNER QS30RRX High-Performance Long-Range Sensor New
- BANNER QS30RRX High-Performance Long-Range Sensor New
+
+
Overview
Specs
Reviews
WORLD-BEAM QS30 Series: High-Powered Receiver
Range: 213 m; Input: 10-30V dc
Output: DO (Dark Operate) Bipolar: 1 NPN; 1 PNP
2 m (6.5 ft) Cable
Part Number: 71740
Sensing Beam Infrared LED
Cable Length (m) 2
Sensing Mode (General) Opposed
Sensing Mode (Detailed) Receiver
Housing Style Rectangular w/M30 Mount
Primary Housing Material Thermoplastic
Input/Output Discrete
Max Sensing Distance (mm) 213000
Outputs Bipolar (NPN & PNP)
Power Supply/Supply Voltage 10-30 V dc
Connection Cable
Quick Disconnect Type No QD
Min Op. Temp. (°C) -20
Operation Dark Operate
Max Op. Temp. (°C) 70
Output response time (ms) 5
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Sensing Beam Wavelength 875
Delay at Power-up (ms) 100
Repeatability (µs) 5000
Number of Pins 5
NEMA Rating NEMA 6
IP Rating IP67
Max Op. Relative Humidity [%] 95% @ 50°C
Lens Material Zeonex
Adjustments N/A
Barrel Diameter (mm) 30
Indicator Bargraph
Opposed Mode Emitter/Receiver Receiver
Feature: Timing (Hold/Delay)
Range: 213 m; Input: 10-30V dc
Output: DO (Dark Operate) Bipolar: 1 NPN; 1 PNP
2 m (6.5 ft) Cable
Part Number: 71740
Sensing Beam Infrared LED
Cable Length (m) 2
Sensing Mode (General) Opposed
Sensing Mode (Detailed) Receiver
Housing Style Rectangular w/M30 Mount
Primary Housing Material Thermoplastic
Input/Output Discrete
Max Sensing Distance (mm) 213000
Outputs Bipolar (NPN & PNP)
Power Supply/Supply Voltage 10-30 V dc
Connection Cable
Quick Disconnect Type No QD
Min Op. Temp. (°C) -20
Operation Dark Operate
Max Op. Temp. (°C) 70
Output response time (ms) 5
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Sensing Beam Wavelength 875
Delay at Power-up (ms) 100
Repeatability (µs) 5000
Number of Pins 5
NEMA Rating NEMA 6
IP Rating IP67
Max Op. Relative Humidity [%] 95% @ 50°C
Lens Material Zeonex
Adjustments N/A
Barrel Diameter (mm) 30
Indicator Bargraph
Opposed Mode Emitter/Receiver Receiver
Feature: Timing (Hold/Delay)
