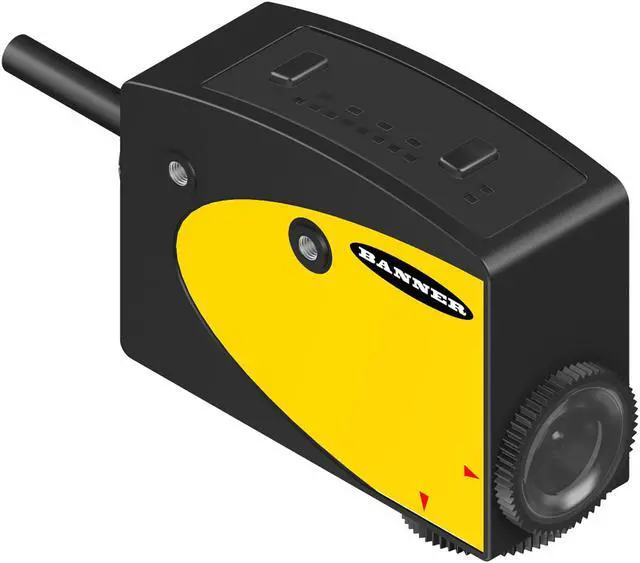

BANNER R58ECRGB1 Photoelectric Switch Sensor New

R58 EXPERT Register Mark Sensor
Input; 10-30 V dc
Output: Bipolar; 1 NPN; 1 PNP
Parallel Sensing Beam
2 m Cable
Part Number: 74999
Cable Length (m) 2
Primary Housing Material Zinc Alloy Die-Cast
Adjustments Teach Button
Sensing Beam Red/Green/Blue LED
Outputs Bipolar (NPN & PNP)
Connection Cable
Quick Disconnect Type No QD
Special Feature: Remote Teach Yes
Sensing Beam Wavelength Red: 636 nm; Green: 525 nm; Blue: 472 nm
Max Sensing Range (mm) 10
Power Supply/Supply Voltage 10-30 V dc
Number of Pins 5
LED Orientation Parallel to sensor length
Indicator Bargraph
Operation Light/Dark Operate
Output response time (ms) 0.05
Repeatability (µs) 15
Lens Material Acrylic
IP Rating IP67
NEMA Rating N/A
Max Op. Temperature (°C) 50
Min Op. Temperature (°C) -10
Max Op. Relative Humidity (%) 90% @ 50°C
Special Feature: Analog Output No
Delay at Power-up (ms) 1000
Beam Spot Size 1.2 x 3.8 mm at 10 mm
Feature: Timing (Hold/Delay) Yes
Application: Luminescence No
Application: Registration Mark Yes
IO Link No
Application: Color No
