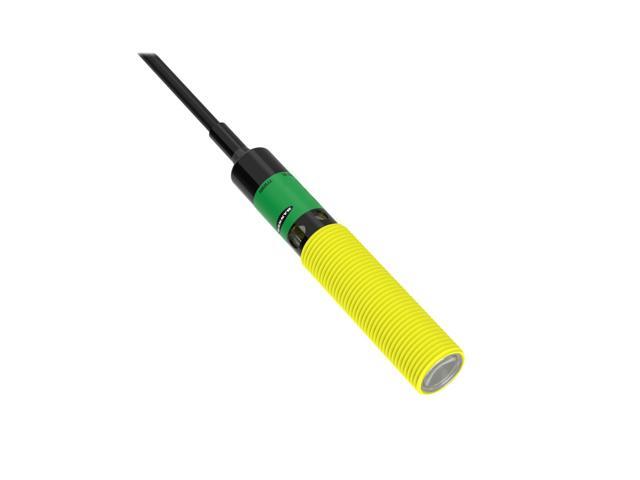

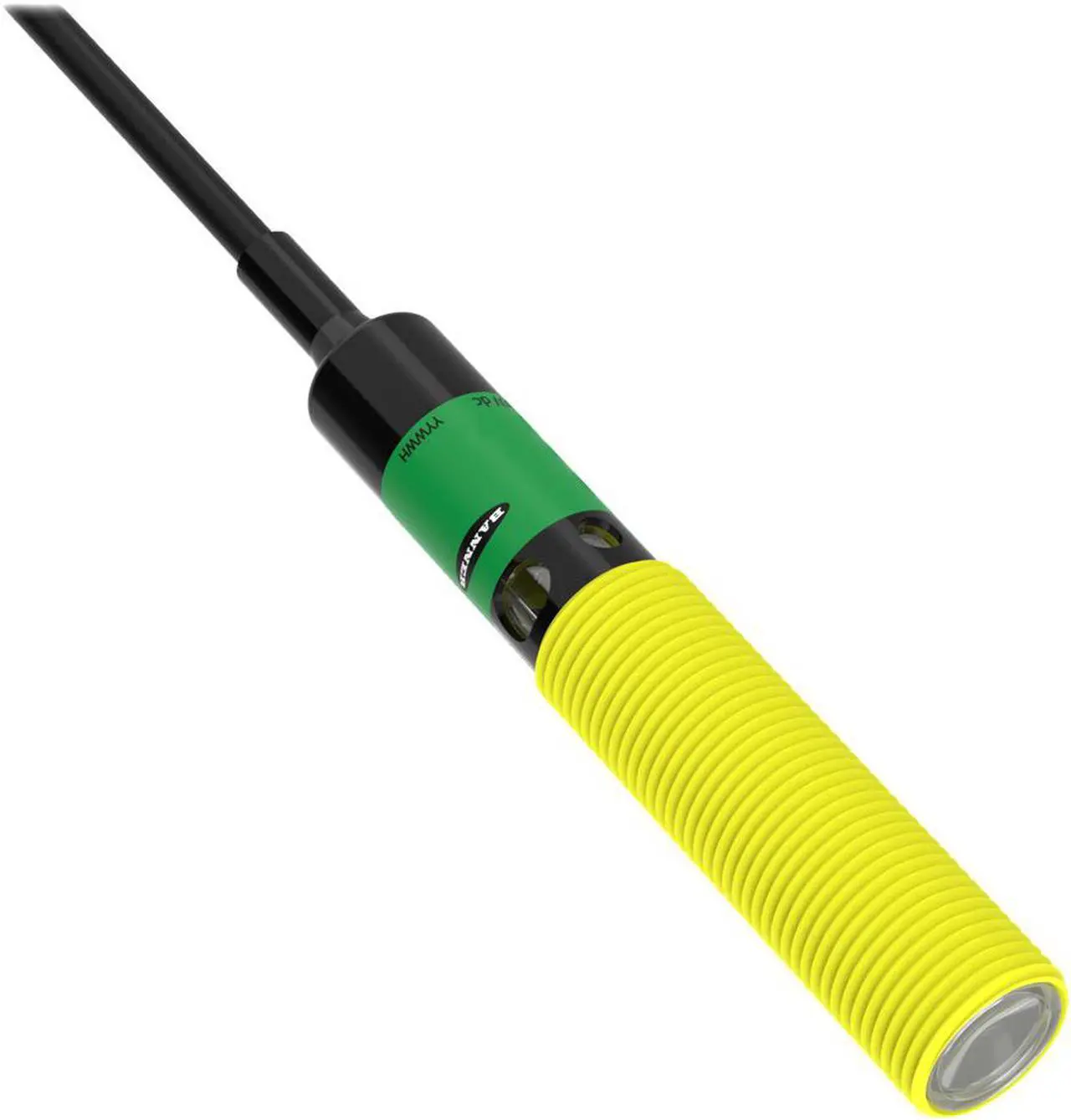

BANNER S12SP6R Sensor New
- BANNER S12SP6R Sensor New
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
12 mm Series: Receiver
Range: 15 m; Input: 10-30V dc
Output: Complementary PNP
2 m (6.5 ft) cable
Part Number: 35411
Sensing Beam Visible Red LED
Cable Length (m) 2
Sensing Mode (General) Opposed
Sensing Mode (Detailed) Receiver
Housing Style Barrel
Primary Housing Material Thermoplastic
Input/Output Discrete
Max Sensing Distance (mm) 15000
Outputs PNP
Power Supply/Supply Voltage 10-30 V dc
Connection Cable
Quick Disconnect Type No QD
Operation Light/Dark Operate
Min Op. Temp. (°C) -40
Max Op. Temp. (°C) 70
Output response time (ms) 3 ON/1.5 OFF
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Delay at Power-up (ms) 100
Repeatability (µs) 375
Number of Pins 4
NEMA Rating NEMA 6P
IP Rating IP67
Max Op. Relative Humidity [%] 90% @ 50°C
Lens Material Polycarbonate
Adjustments N/A
Barrel Diameter (mm) 12
Indicator LEDs
Opposed Mode Emitter/Receiver Receiver
Range: 15 m; Input: 10-30V dc
Output: Complementary PNP
2 m (6.5 ft) cable
Part Number: 35411
Sensing Beam Visible Red LED
Cable Length (m) 2
Sensing Mode (General) Opposed
Sensing Mode (Detailed) Receiver
Housing Style Barrel
Primary Housing Material Thermoplastic
Input/Output Discrete
Max Sensing Distance (mm) 15000
Outputs PNP
Power Supply/Supply Voltage 10-30 V dc
Connection Cable
Quick Disconnect Type No QD
Operation Light/Dark Operate
Min Op. Temp. (°C) -40
Max Op. Temp. (°C) 70
Output response time (ms) 3 ON/1.5 OFF
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Delay at Power-up (ms) 100
Repeatability (µs) 375
Number of Pins 4
NEMA Rating NEMA 6P
IP Rating IP67
Max Op. Relative Humidity [%] 90% @ 50°C
Lens Material Polycarbonate
Adjustments N/A
Barrel Diameter (mm) 12
Indicator LEDs
Opposed Mode Emitter/Receiver Receiver
