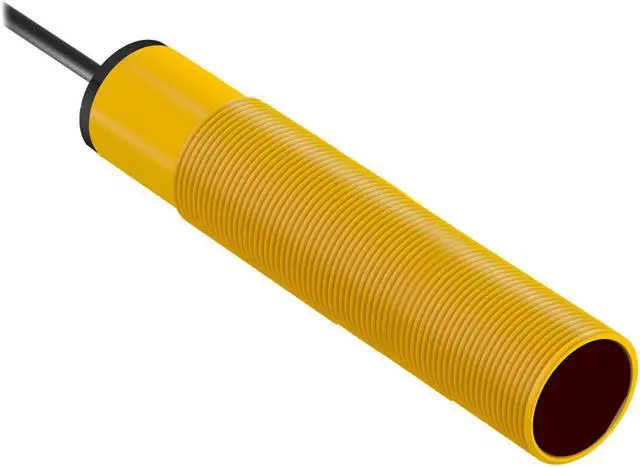

BANNER S183E Epoxy Encapsulated Barrel-Mount Sensor New

EZ-BEAM S18 Series: Emitter
Range: 20 m; Input: 20-250 V ac
Output: Not appliCable - No outputs
2 m (6.5 ft) Cable
Part Number: 29823
Sensing Beam Infrared LED
Cable Length (m) 2
Sensing Mode (General) Opposed
Sensing Mode (Detailed) Emitter
Housing Style Barrel
Primary Housing Material Thermoplastic
Max Sensing Distance (mm) 20000
Outputs N/A
Power Supply/Supply Voltage 20-250 V ac
Connection Cable
Quick Disconnect Type No QD
Min Op. Temp. (°C) -40
Operation N/A
Max Op. Temp. (°C) 70
Output response time (ms) N/A
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Delay at Power-up (ms) 100
Repeatability (µs) 2000
Number of Pins 2
NEMA Rating NEMA 6P
IP Rating IP67, IP69
Max Op. Relative Humidity [%] 90% @ 50°C
Lens Material Polycarbonate
Adjustments N/A
Barrel Diameter (mm) 18
Indicator LEDs
Opposed Mode Emitter/Receiver Emitter
Feature: Washdown Rated Yes
Feature: Timing (Hold/Delay) No
Feature: Ecolab Certified Yes
Feature: Encapsulated Yes
Feature: Hazardous Area No
Feature: Audible No
Feature: Chemical Resistant No
DeviceNet No
IO Link No
