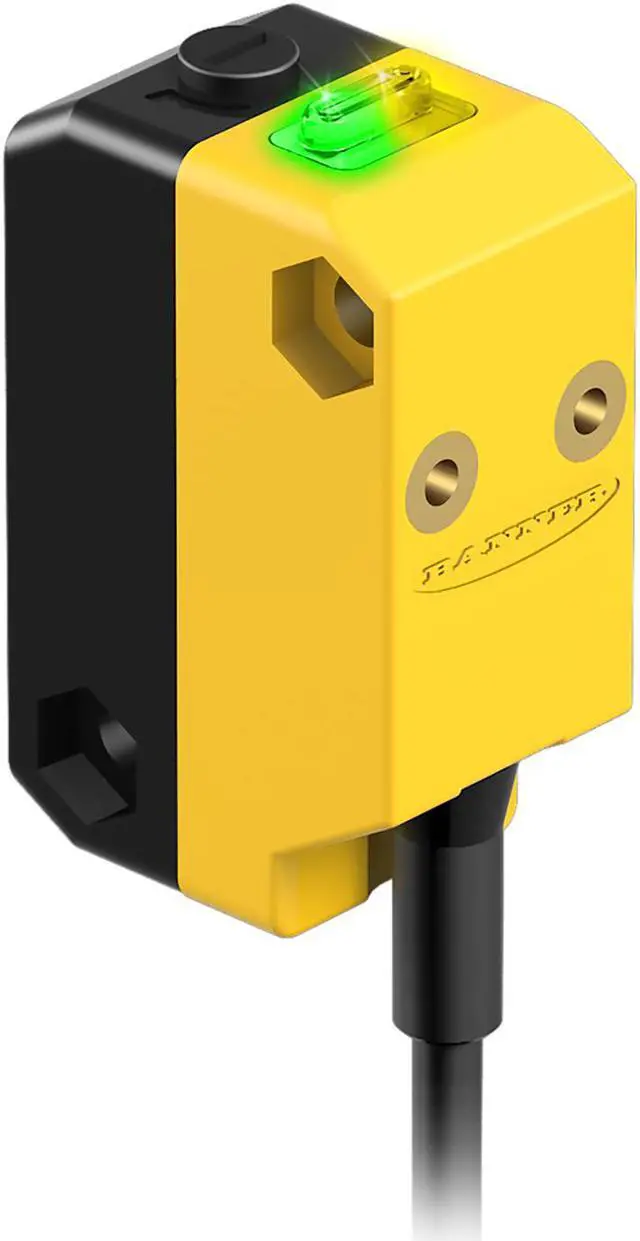

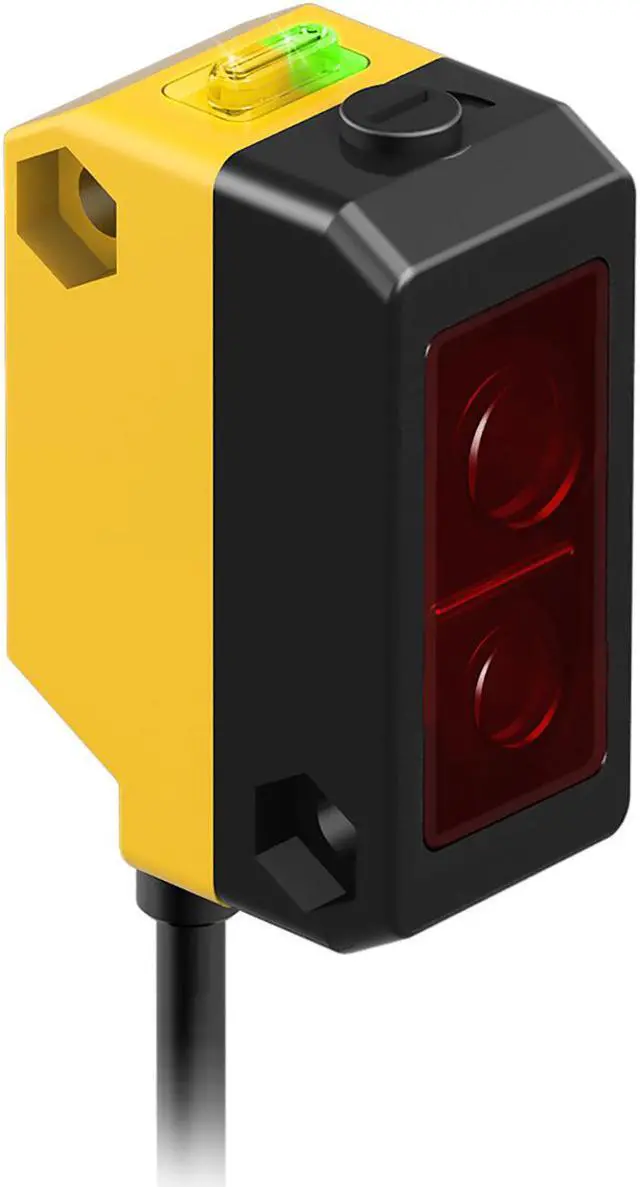

BANNER S18SP6FF100Q All Purpose Photoelectric Sensor New

WORLD-BEAM: Adjustable Field Background Suppression
Cutoff Adjustment Range: 30 to 300mm; Input:10-30V dc
Outputs: Complementary PNP
2 m (6.5 ft.) Cable
Part Number: 11394
Sensing Beam Visible Red LED
Cable Length (m) 2
Sensing Mode (General) Proximity
Sensing Mode (Detailed) Background Suppression (Adjustable)
Housing Style Rectangular
Primary Housing Material ABS
Input/Output Discrete
Max Sensing Distance (mm) 300
Outputs PNP
Power Supply/Supply Voltage 10-30 V dc
Connection Cable
Quick Disconnect Type No QD
Min Op. Temp. (°C) -20
Operation Light/Dark Operate
Max Op. Temp. (°C) 55
Output response time (ms) 2.5
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Sensing Beam Wavelength 640
Delay at Power-up (ms) 200
Repeatability (µs) 250
Number of Pins 4
NEMA Rating NEMA 6
IP Rating IP67
Max Op. Relative Humidity [%] 95% @ 50°C
Lens Material Acrylic
Adjustments Mechanical Screw
Barrel Diameter (mm) N/A
Indicator LEDs
Opposed Mode Emitter/Receiver N/A
Feature: Timing (Hold/Delay) No
Feature: Encapsulated No
Feature: Hazardous Area No
Feature: Audible No
Feature: Chemical Resistant No
DeviceNet No
IO Link No
