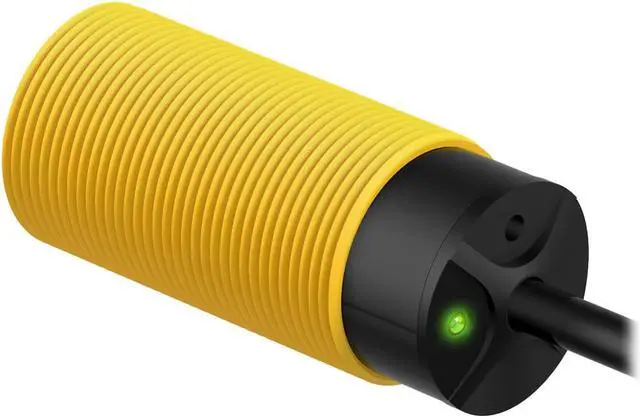

BANNER S306E 30mm Plastic Threaded Barrel Sensor New
- BANNER S306E 30mm Plastic Threaded Barrel Sensor New
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
EZ-BEAM S30 Series: Emitter
Range: 60 m; Input: 10-30V dc
Output: Not applicable - No outputs
2 m (6.5 ft) Cable
Part Number: 32341
Sensing Beam Infrared LED
Cable Length (m) 2
Sensing Mode (General) Opposed
Sensing Mode (Detailed) Emitter
Housing Style Barrel
Primary Housing Material Thermoplastic
Max Sensing Distance (mm) 60000
Outputs N/A
Power Supply/Supply Voltage 10-30 V dc
Connection Cable
Quick Disconnect Type No QD
Min Op. Temp. (°C) -40
Operation N/A
Max Op. Temp. (°C) 70
Output response time (ms) N/A
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Delay at Power-up (ms) 100
Repeatability (µs) 375
Number of Pins 2
NEMA Rating NEMA 6P
IP Rating IP67
Max Op. Relative Humidity [%] 90% @ 50°C
Lens Material Acrylic
Adjustments N/A
Barrel Diameter (mm) 30
Indicator LEDs
Opposed Mode Emitter/Receiver Emitter
Feature: Timing (Hold/Delay) No
Feature: Ecolab Certified Yes
Feature: Encapsulated Yes
Feature: Hazardous Area No
Feature: Audible No
Feature: Chemical Resistant No
Feature: Health/ Marginal Signal Output Yes
DeviceNet No
IO Link No
Range: 60 m; Input: 10-30V dc
Output: Not applicable - No outputs
2 m (6.5 ft) Cable
Part Number: 32341
Sensing Beam Infrared LED
Cable Length (m) 2
Sensing Mode (General) Opposed
Sensing Mode (Detailed) Emitter
Housing Style Barrel
Primary Housing Material Thermoplastic
Max Sensing Distance (mm) 60000
Outputs N/A
Power Supply/Supply Voltage 10-30 V dc
Connection Cable
Quick Disconnect Type No QD
Min Op. Temp. (°C) -40
Operation N/A
Max Op. Temp. (°C) 70
Output response time (ms) N/A
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Delay at Power-up (ms) 100
Repeatability (µs) 375
Number of Pins 2
NEMA Rating NEMA 6P
IP Rating IP67
Max Op. Relative Humidity [%] 90% @ 50°C
Lens Material Acrylic
Adjustments N/A
Barrel Diameter (mm) 30
Indicator LEDs
Opposed Mode Emitter/Receiver Emitter
Feature: Timing (Hold/Delay) No
Feature: Ecolab Certified Yes
Feature: Encapsulated Yes
Feature: Hazardous Area No
Feature: Audible No
Feature: Chemical Resistant No
Feature: Health/ Marginal Signal Output Yes
DeviceNet No
IO Link No
