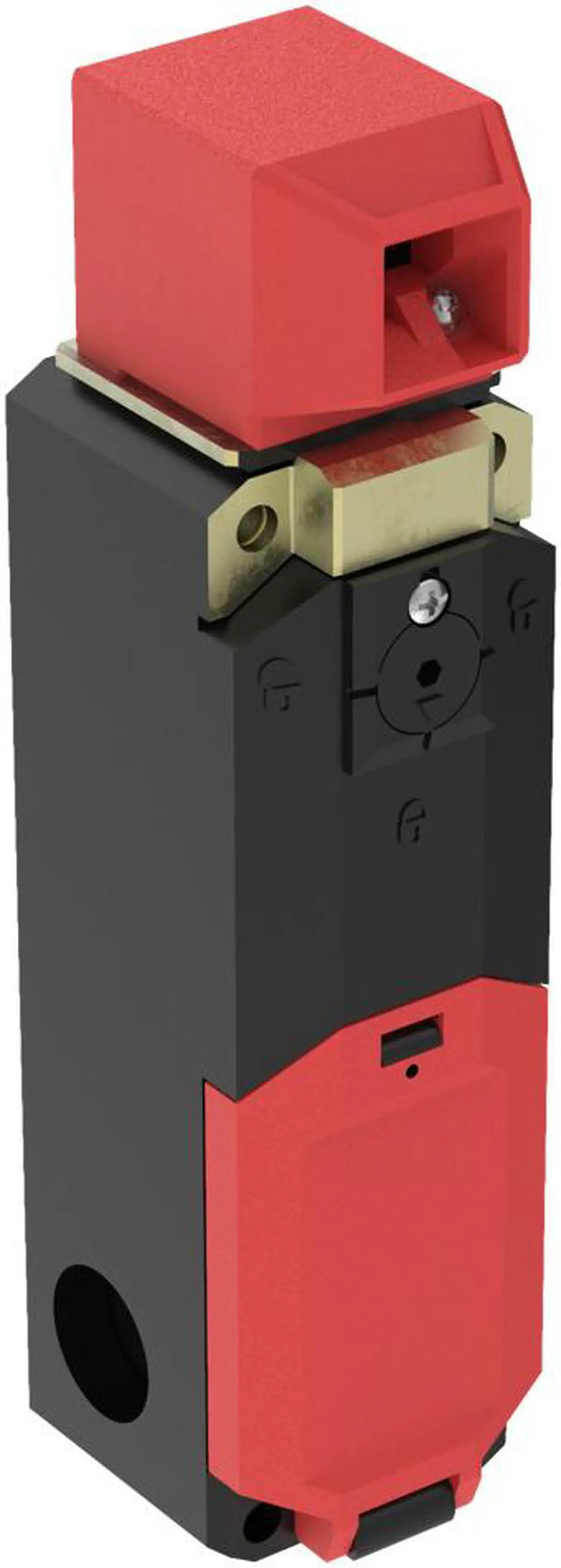

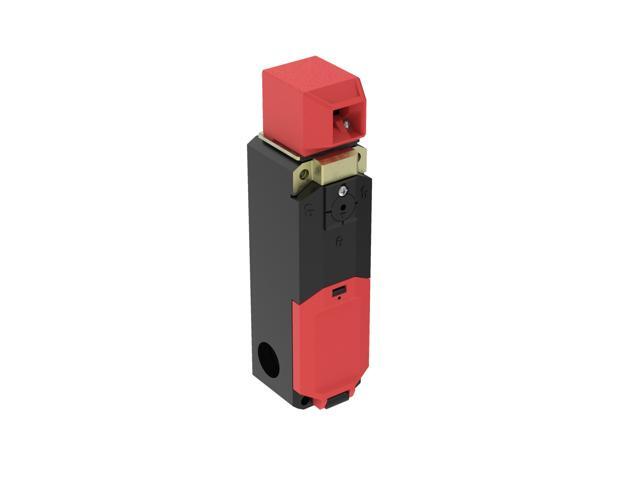

BANNER SI-LS42DMG Interlock Switch New

SI-LS42DMG SI-LS42 Series Safety Interlock Body; Solenoid Lock/Spring Unlock; One N.C. One N.O.
Part Number: 47873
Switch Style Contact
Device Type Mechanical - Sensor
Primary Housing Material Thermoplastic
Locking Mechanism Power Lock
Device Size 170 x 43 x 45
Device Shape Rectangular
Min Op. Temperature (°C) -25
Max Op. Temperature (°C) 70
IP Rating IP67
PL Rating PL e
SIL Rating SIL CL 3
Safety Category Cat 4
SISTEMA B10d = 2 million
Actuator (Safety) Contacts 1 NC/1 NO
Monitor (Locked) Contacts 1 NC/1 NO
Output Type Contacts
Connection Type Wiring Chamber
Feature: Lockable Yes
Cascade with ISD No
Auxilliary Output No
Operating Voltage 24 V ac/dc
Rated Operating Current 4.4 VA
In Rush Power Consumption (VA/s) 12 VA (0.2 s)
Mechanical Life (operations in millions) 1
Power Consumption (W/VA) 4.4 VA
Extraction Force (N) 1500
Coding Level/Tamper Resistance Low
