BANNER SLM50B6 Rugged Metal Slot Sensor New
- BANNER SLM50B6 Rugged Metal Slot Sensor New
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

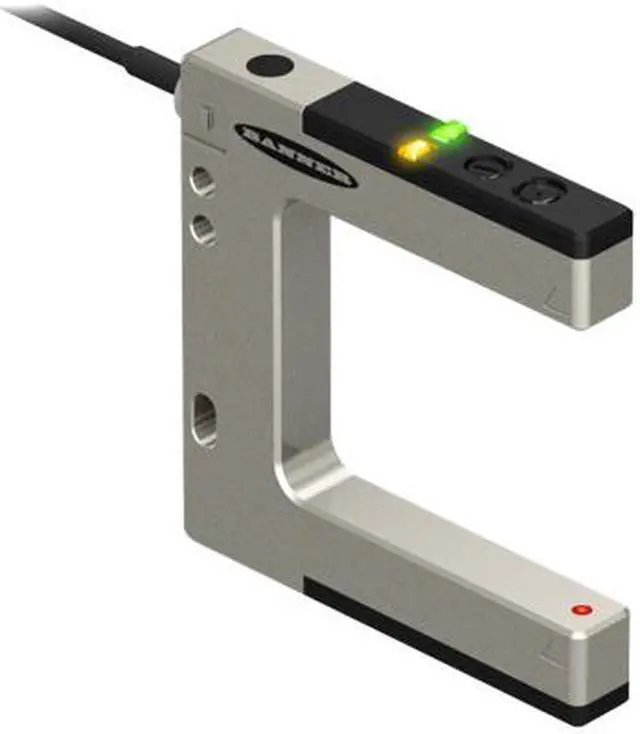

SLM Series: Rugged Nickel Plated Metal Fixed-Distance Slot Sensor
Slot Width: 50 mm; Input: 10-30 V dc
Output: Bipolar: 1 NPN; 1 PNP
2 m (6.5 ft) Cable
Part Number: 74977
Cable Length (m) 2
Sensing Mode (Detailed) Emitter/Receiver Pair
Housing Style Slot
Primary Housing Material Zinc Die-Cast with Nickel-Plating
Max Sensing Range (mm) 50
Slot Depth/Array Length (mm) 60.8
Connection Cable
Minimum Object Detection (mm) .6
Quick Disconnect Type No QD
Outputs Bipolar (NPN & PNP)
Slot Overall Depth (mm) 82
Slot Overall Depth (mm) 80
Number of Pins 4
Power Supply/Supply Voltage 10-30 V dc
Output response time (ms) 0.5
Repeatability (µs) 95
Adjustments Potentiometer
Lens Material Acrylic
Special Feature: Remote Teach No
Delay at Power-up (ms) 100
Operation Light/Dark Operate
Indicator LEDs
Max Op. Temperature (°C) 60
Min Op. Temperature (°C) -20
Max Op. Relative Humidity (%) 95% @ 55°C
IP Rating IP67
NEMA Rating NEMA 6
Minimum Object Detection [mm] 0.6
Slot Width: 50 mm; Input: 10-30 V dc
Output: Bipolar: 1 NPN; 1 PNP
2 m (6.5 ft) Cable
Part Number: 74977
Cable Length (m) 2
Sensing Mode (Detailed) Emitter/Receiver Pair
Housing Style Slot
Primary Housing Material Zinc Die-Cast with Nickel-Plating
Max Sensing Range (mm) 50
Slot Depth/Array Length (mm) 60.8
Connection Cable
Minimum Object Detection (mm) .6
Quick Disconnect Type No QD
Outputs Bipolar (NPN & PNP)
Slot Overall Depth (mm) 82
Slot Overall Depth (mm) 80
Number of Pins 4
Power Supply/Supply Voltage 10-30 V dc
Output response time (ms) 0.5
Repeatability (µs) 95
Adjustments Potentiometer
Lens Material Acrylic
Special Feature: Remote Teach No
Delay at Power-up (ms) 100
Operation Light/Dark Operate
Indicator LEDs
Max Op. Temperature (°C) 60
Min Op. Temperature (°C) -20
Max Op. Relative Humidity (%) 95% @ 55°C
IP Rating IP67
NEMA Rating NEMA 6
Minimum Object Detection [mm] 0.6
