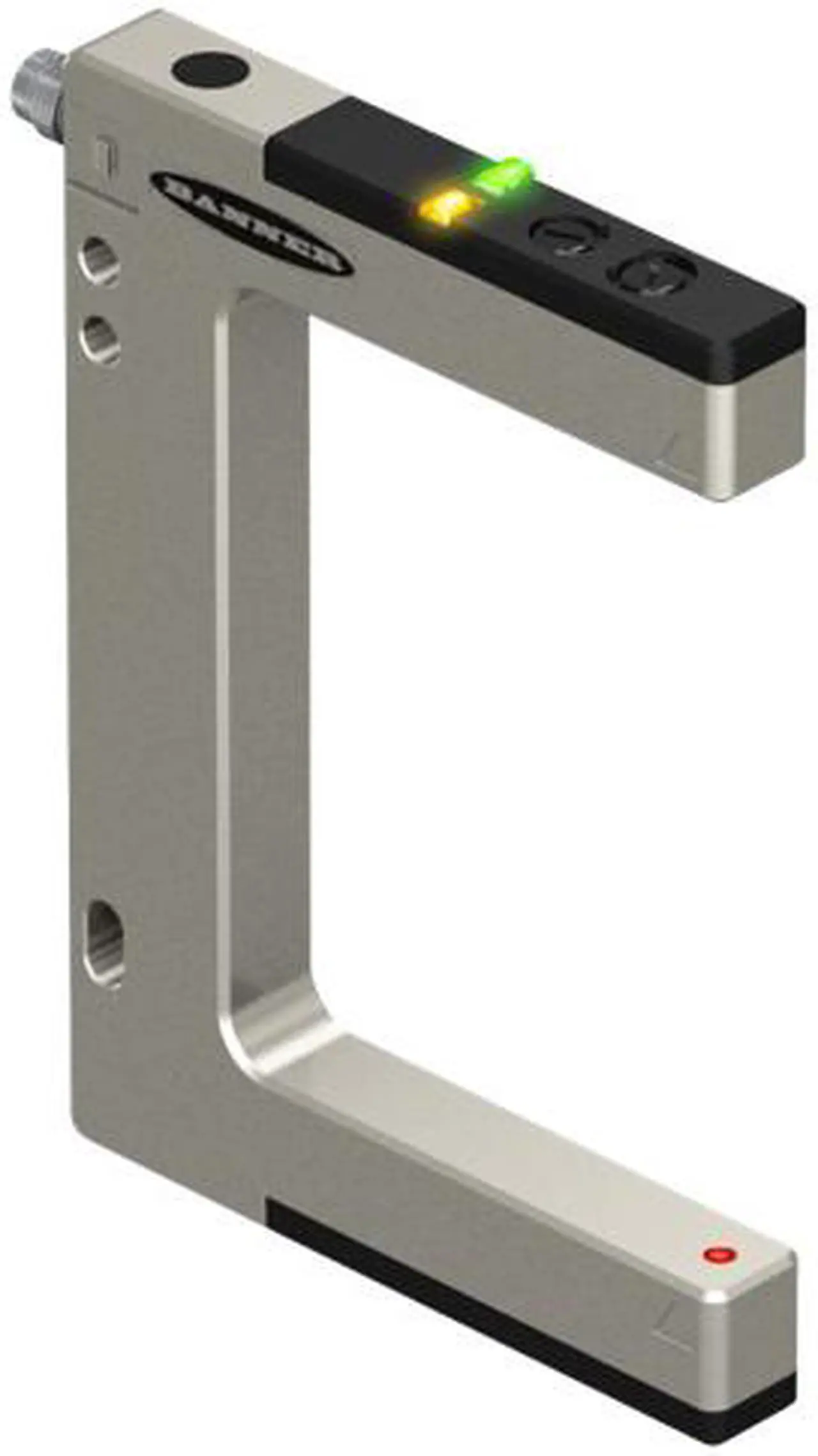

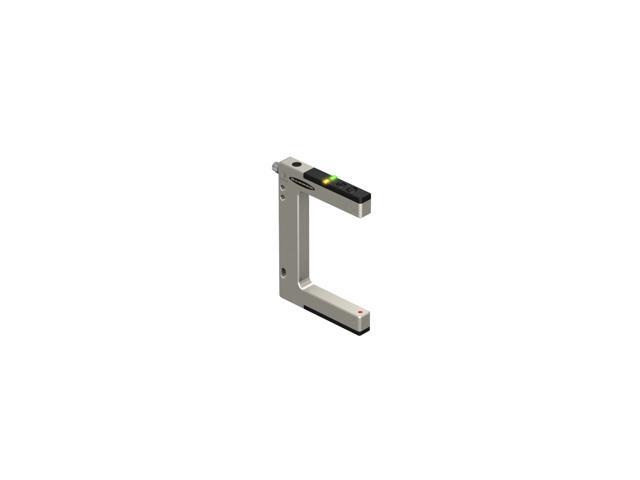

BANNER SLM80P6Q Rugged Metal Slot Sensor New
- BANNER SLM80P6Q Rugged Metal Slot Sensor New
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
SLM Series: Rugged Nickel Plated Metal Fixed-Distance Slot Sensor
Slot Width: 80 mm; Input 10-30 V dc
Output: PNP
Pico 3-pin Integral Quick-Disconnect
Part Number: 74982
Sensing Mode (Detailed) Emitter/Receiver Pair
Housing Style Slot
Primary Housing Material Zinc Die-Cast with Nickel-Plating
Max Sensing Range (mm) 80
Slot Depth/Array Length (mm) 60.8
Connection Integral QD
Minimum Object Detection (mm) .75
Quick Disconnect Type M8 (Pico)
Outputs PNP
Slot Overall Depth (mm) 112
Slot Overall Depth (mm) 80
Number of Pins 3
Power Supply/Supply Voltage 10-30 V dc
Output response time (ms) 0.5
Repeatability (µs) 95
Adjustments Potentiometer
Lens Material Acrylic
Special Feature: Remote Teach No
Delay at Power-up (ms) 100
Operation Light/Dark Operate
Indicator LEDs
Max Op. Temperature (°C) 60
Min Op. Temperature (°C) -20
Max Op. Relative Humidity (%) 95% @ 55°C
IP Rating IP67
NEMA Rating NEMA 6
Minimum Object Detection [mm] 0.75
Slot Width: 80 mm; Input 10-30 V dc
Output: PNP
Pico 3-pin Integral Quick-Disconnect
Part Number: 74982
Sensing Mode (Detailed) Emitter/Receiver Pair
Housing Style Slot
Primary Housing Material Zinc Die-Cast with Nickel-Plating
Max Sensing Range (mm) 80
Slot Depth/Array Length (mm) 60.8
Connection Integral QD
Minimum Object Detection (mm) .75
Quick Disconnect Type M8 (Pico)
Outputs PNP
Slot Overall Depth (mm) 112
Slot Overall Depth (mm) 80
Number of Pins 3
Power Supply/Supply Voltage 10-30 V dc
Output response time (ms) 0.5
Repeatability (µs) 95
Adjustments Potentiometer
Lens Material Acrylic
Special Feature: Remote Teach No
Delay at Power-up (ms) 100
Operation Light/Dark Operate
Indicator LEDs
Max Op. Temperature (°C) 60
Min Op. Temperature (°C) -20
Max Op. Relative Humidity (%) 95% @ 55°C
IP Rating IP67
NEMA Rating NEMA 6
Minimum Object Detection [mm] 0.75
