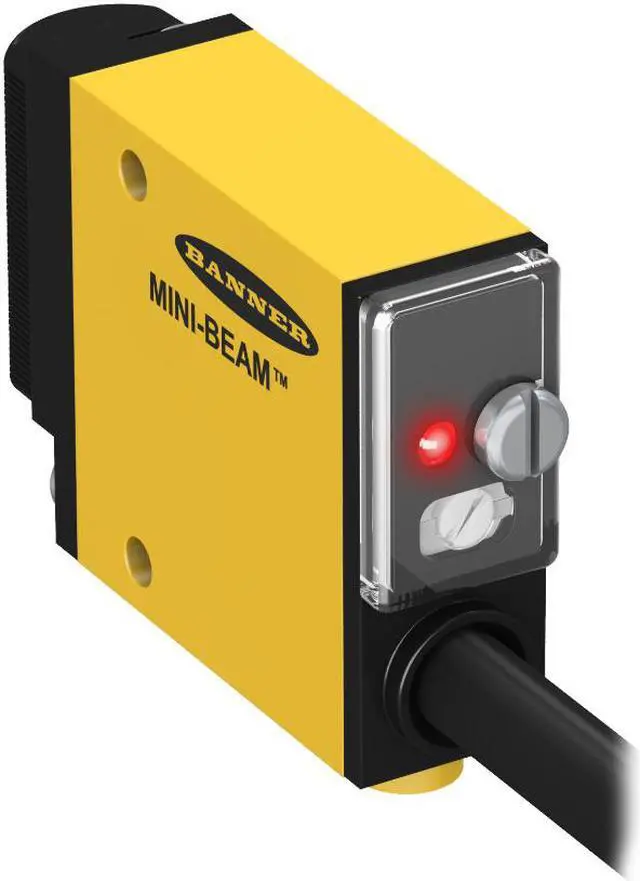

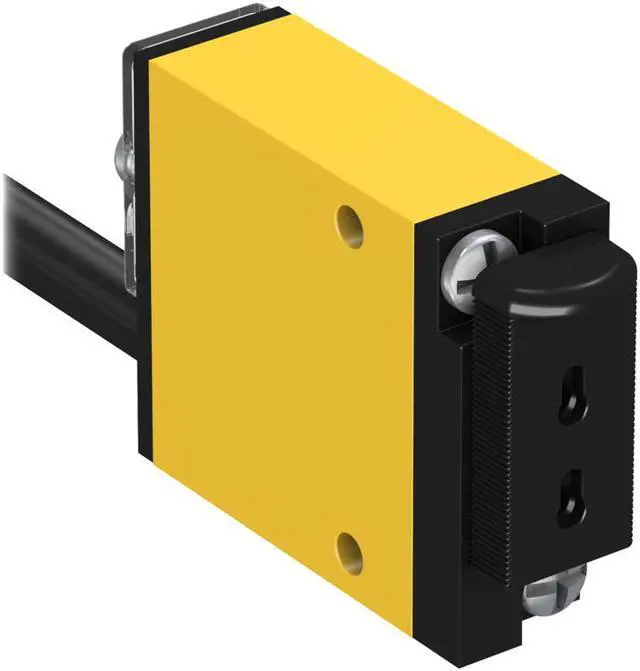

BANNER SM312FP Photoelectric Switch Sensor New
- BANNER SM312FP Photoelectric Switch Sensor New
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
MINI-BEAM: Plastic Fiber Optic
Range: depends on fiber; Input: 10-30 V dc
Output: Bipolar: 1 NPN; 1 PNP
2 m (6.5 ft) Cable
Part Number: 25916
Cable Length (m) 2
Housing Style Rectangular
Primary Housing Material Thermoplastic
Input/Output Discrete
Color LED - Amplifiers Red
Fiber Type Plastic and Glass
Output Bipolar (NPN & PNP)
Connection Cable
Quick Disconnect Type No QD
Output Type (Specific) Single Discrete
Repeatability (µs) 300
Number of Pins 4
IP Rating IP67
NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12
Max Op. Temperature (°C) 70
Min Op. Temperature (°C) -20
Max Op. Relative Humidity (%) 90% @ 50°C
Special Feature: Remote Teach No
Intrinsically Safe No
Adjustments Potentiometer
Power Supply/Supply Voltage 10-30 V dc
Delay at Power-up (ms) 100
Indicator Display Type Indicator LEDs
Minimum response time (ms) 1
Special Feature: Bussable Power No
Feature: Timing (Hold/Delay) No
Feature: Hazardous Area No
Feature: Audible No
IO Link No
Housing Material Thermoplastic
Range: depends on fiber; Input: 10-30 V dc
Output: Bipolar: 1 NPN; 1 PNP
2 m (6.5 ft) Cable
Part Number: 25916
Cable Length (m) 2
Housing Style Rectangular
Primary Housing Material Thermoplastic
Input/Output Discrete
Color LED - Amplifiers Red
Fiber Type Plastic and Glass
Output Bipolar (NPN & PNP)
Connection Cable
Quick Disconnect Type No QD
Output Type (Specific) Single Discrete
Repeatability (µs) 300
Number of Pins 4
IP Rating IP67
NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12
Max Op. Temperature (°C) 70
Min Op. Temperature (°C) -20
Max Op. Relative Humidity (%) 90% @ 50°C
Special Feature: Remote Teach No
Intrinsically Safe No
Adjustments Potentiometer
Power Supply/Supply Voltage 10-30 V dc
Delay at Power-up (ms) 100
Indicator Display Type Indicator LEDs
Minimum response time (ms) 1
Special Feature: Bussable Power No
Feature: Timing (Hold/Delay) No
Feature: Hazardous Area No
Feature: Audible No
IO Link No
Housing Material Thermoplastic
