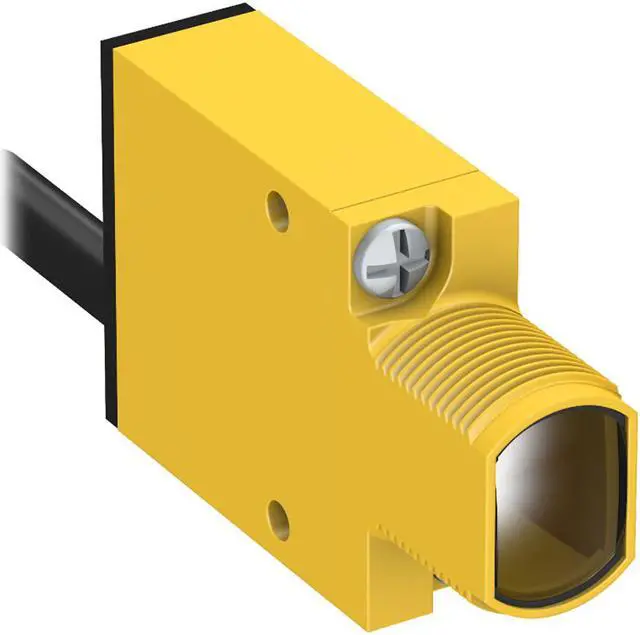

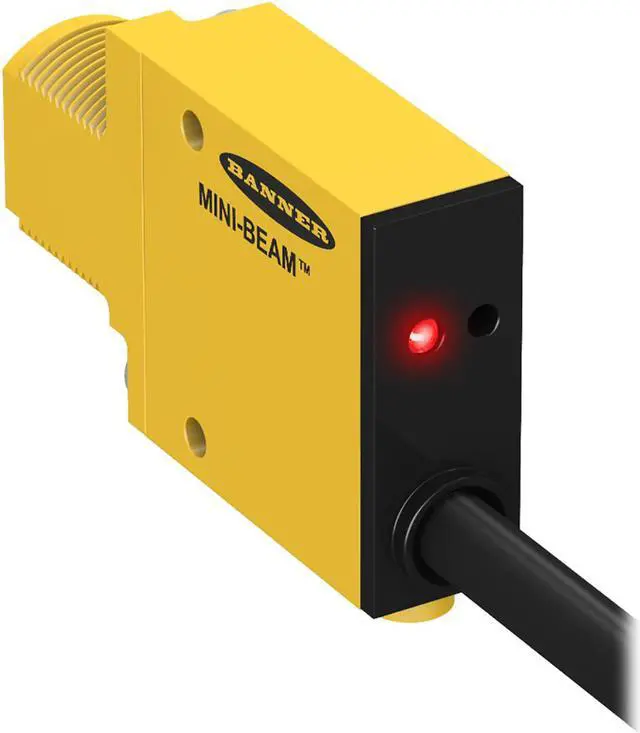

BANNER SM31EL Mini-Beam Series Industry Standard Sensor New
- BANNER SM31EL Mini-Beam Series Industry Standard Sensor New
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
MINI-BEAM: Emitter
Range: 30 m; Input: 10-30V dc
Output: Not applicable - No outputs
2 m (6.5 ft) cable
Part Number: 25724
Sensing Beam Infrared LED
Cable Length (m) 2
Sensing Mode (General) Opposed
Sensing Mode (Detailed) Emitter
Housing Style Rectangular w/M18 Mount
Primary Housing Material Thermoplastic
Max Sensing Distance (mm) 30000
Outputs N/A
Power Supply/Supply Voltage 10-30 V dc
Connection Cable
Quick Disconnect Type No QD
Operation N/A
Min Op. Temp. (°C) -20
Max Op. Temp. (°C) 70
Output response time (ms) 1
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Delay at Power-up (ms) 100
Repeatability (µs) 140
Number of Pins 2
NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12
IP Rating IP67
Max Op. Relative Humidity [%] 90% @ 50°C
Lens Material Acrylic
Adjustments Potentiometer
Barrel Diameter (mm) 18
Indicator LEDs
Opposed Mode Emitter/Receiver Emitter
Feature: Timing (Hold/Delay) No
Feature: Encapsulated Yes
Feature: Hazardous Area No
Feature: Audible No
Feature: Chemical Resistant No
DeviceNet No
IO Link No
Range: 30 m; Input: 10-30V dc
Output: Not applicable - No outputs
2 m (6.5 ft) cable
Part Number: 25724
Sensing Beam Infrared LED
Cable Length (m) 2
Sensing Mode (General) Opposed
Sensing Mode (Detailed) Emitter
Housing Style Rectangular w/M18 Mount
Primary Housing Material Thermoplastic
Max Sensing Distance (mm) 30000
Outputs N/A
Power Supply/Supply Voltage 10-30 V dc
Connection Cable
Quick Disconnect Type No QD
Operation N/A
Min Op. Temp. (°C) -20
Max Op. Temp. (°C) 70
Output response time (ms) 1
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Delay at Power-up (ms) 100
Repeatability (µs) 140
Number of Pins 2
NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12
IP Rating IP67
Max Op. Relative Humidity [%] 90% @ 50°C
Lens Material Acrylic
Adjustments Potentiometer
Barrel Diameter (mm) 18
Indicator LEDs
Opposed Mode Emitter/Receiver Emitter
Feature: Timing (Hold/Delay) No
Feature: Encapsulated Yes
Feature: Hazardous Area No
Feature: Audible No
Feature: Chemical Resistant No
DeviceNet No
IO Link No
