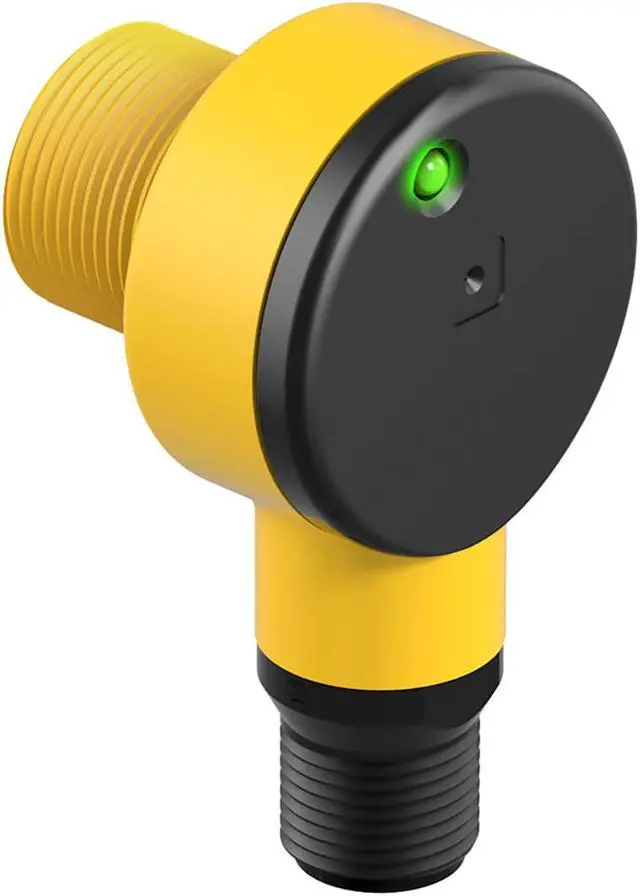

BANNER T186EQ Photoelectric Sensor New
- BANNER T186EQ Photoelectric Sensor New
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
EZ-BEAM T18 Series: Emitter
Range: 20 m; Input: 10-30 V dc
Output: Not applicable - No outputs
Euro M12 4-pin Integral QD
Part Number: 33420
Sensing Beam Infrared LED
Sensing Mode (General) Opposed
Sensing Mode (Detailed) Emitter
Housing Style Barrel
Primary Housing Material Thermoplastic
Max Sensing Distance (mm) 20000
Outputs N/A
Power Supply/Supply Voltage 10-30 V dc
Connection Integral QD
Quick Disconnect Type M12 (Euro)
Operation N/A
Min Op. Temp. (°C) -40
Max Op. Temp. (°C) 70
Output response time (ms) N/A
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Delay at Power-up (ms) 100
Repeatability (µs) 375
Number of Pins 4
NEMA Rating NEMA 6P
IP Rating IP67, IP69
Max Op. Relative Humidity [%] 90% @ 50°C
Lens Material Polycarbonate
Adjustments N/A
Barrel Diameter (mm) 18
Indicator LEDs
Opposed Mode Emitter/Receiver Emitter
Feature: Washdown Rated Yes
Feature: Timing (Hold/Delay) No
Feature: Ecolab Certified Yes
Feature: Encapsulated Yes
Feature: Hazardous Area No
Feature: Audible No
Feature: Chemical Resistant Yes
Feature: Health/ Marginal Signal Output Yes
DeviceNet No
IO Link No
Range: 20 m; Input: 10-30 V dc
Output: Not applicable - No outputs
Euro M12 4-pin Integral QD
Part Number: 33420
Sensing Beam Infrared LED
Sensing Mode (General) Opposed
Sensing Mode (Detailed) Emitter
Housing Style Barrel
Primary Housing Material Thermoplastic
Max Sensing Distance (mm) 20000
Outputs N/A
Power Supply/Supply Voltage 10-30 V dc
Connection Integral QD
Quick Disconnect Type M12 (Euro)
Operation N/A
Min Op. Temp. (°C) -40
Max Op. Temp. (°C) 70
Output response time (ms) N/A
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Delay at Power-up (ms) 100
Repeatability (µs) 375
Number of Pins 4
NEMA Rating NEMA 6P
IP Rating IP67, IP69
Max Op. Relative Humidity [%] 90% @ 50°C
Lens Material Polycarbonate
Adjustments N/A
Barrel Diameter (mm) 18
Indicator LEDs
Opposed Mode Emitter/Receiver Emitter
Feature: Washdown Rated Yes
Feature: Timing (Hold/Delay) No
Feature: Ecolab Certified Yes
Feature: Encapsulated Yes
Feature: Hazardous Area No
Feature: Audible No
Feature: Chemical Resistant Yes
Feature: Health/ Marginal Signal Output Yes
DeviceNet No
IO Link No
