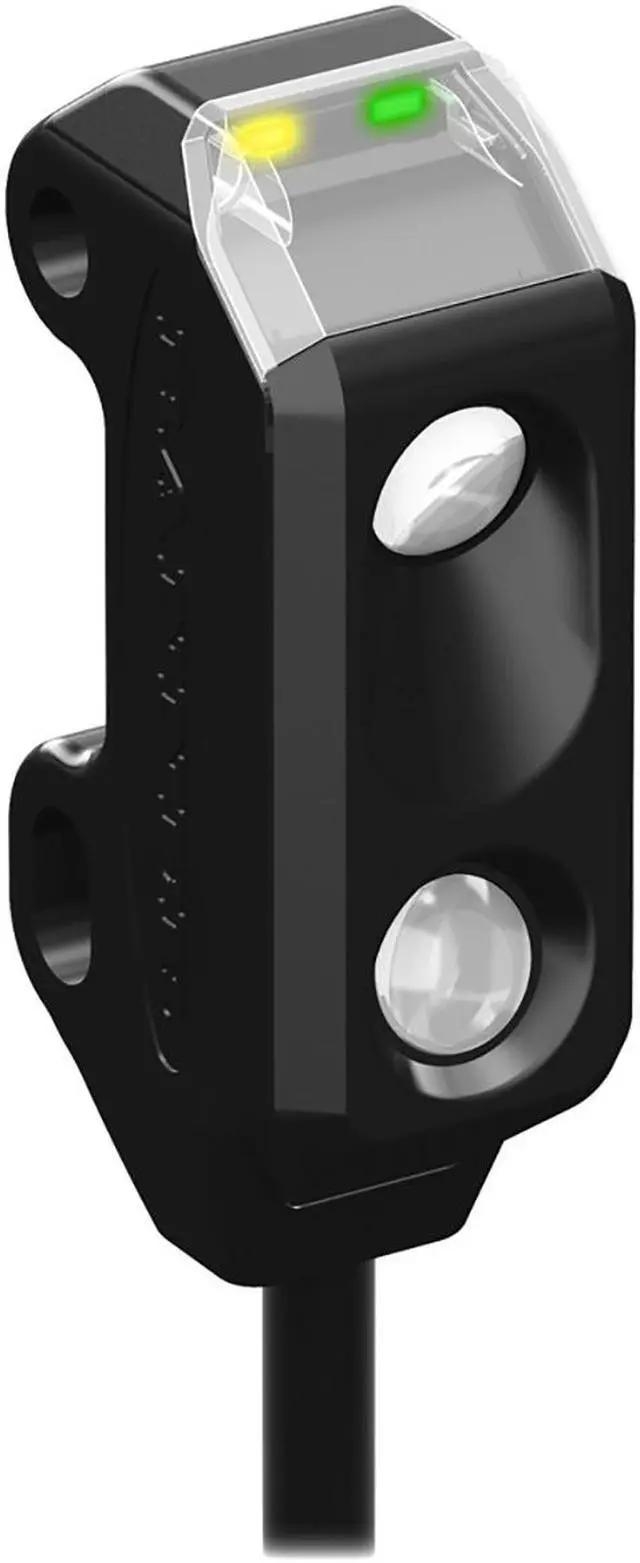

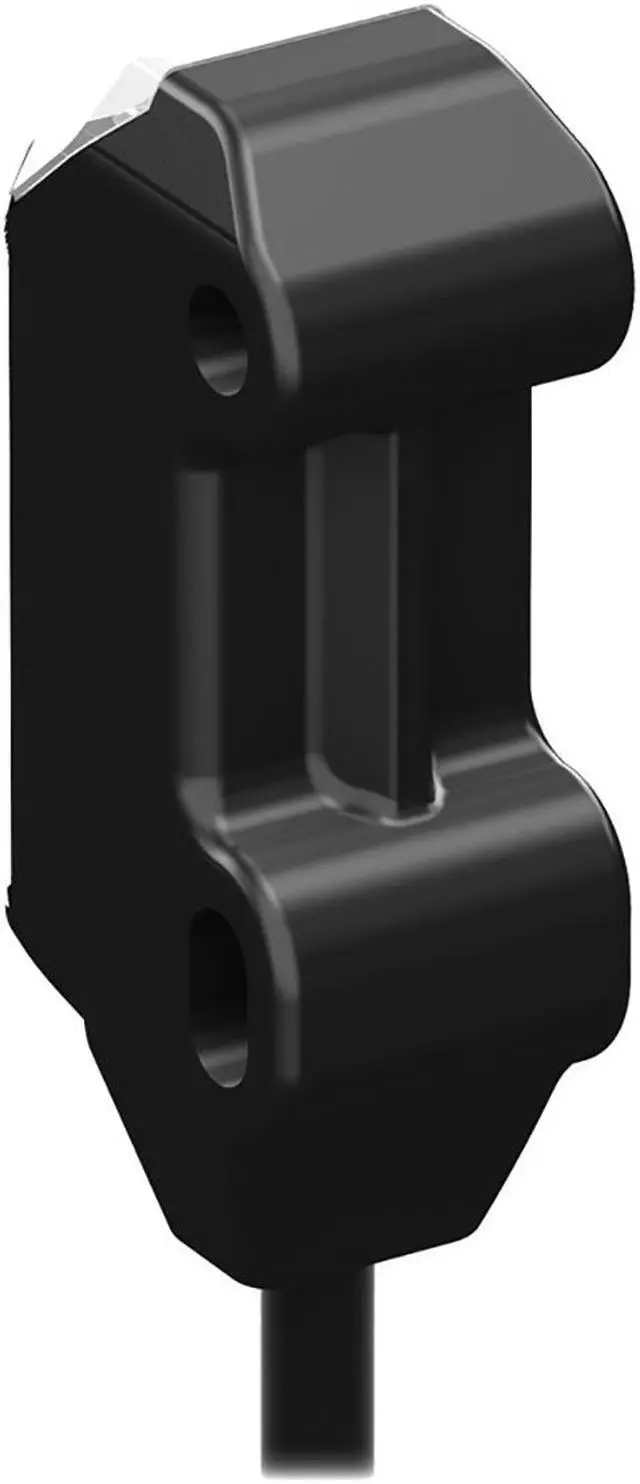

BANNER VS1AP5C20 Mini Self-Contained Convergent-Mode Sensor New
- BANNER VS1AP5C20 Mini Self-Contained Convergent-Mode Sensor New
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
VS1 Series: Infrared Convergent
Range: 20 mm; Input: 12-24V dc
Output: Complementary PNP Light Operate
2 m (6.5 ft) Cable
Part Number: 55299
Sensing Beam Infrared LED
Cable Length (m) 2
Sensing Mode (General) Proximity
Sensing Mode (Detailed) Convergent
Housing Style Rectangular
Primary Housing Material Thermoplastic
Input/Output Discrete
Max Sensing Distance (mm) 20
Outputs PNP
Power Supply/Supply Voltage 10-30 V dc
Connection Cable
Quick Disconnect Type No QD
Operation Light Operate
Min Op. Temp. (°C) -20
Max Op. Temp. (°C) 55
Output response time (ms) 1
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Sensing Beam Wavelength 865
Delay at Power-up (ms) N/A
Repeatability (µs) 250
Number of Pins 3
NEMA Rating NEMA 3
IP Rating IP54
Max Op. Relative Humidity [%] 80% @ 50°C
Lens Material Acrylic
Adjustments N/A
Barrel Diameter (mm) N/A
Indicator LEDs
Range: 20 mm; Input: 12-24V dc
Output: Complementary PNP Light Operate
2 m (6.5 ft) Cable
Part Number: 55299
Sensing Beam Infrared LED
Cable Length (m) 2
Sensing Mode (General) Proximity
Sensing Mode (Detailed) Convergent
Housing Style Rectangular
Primary Housing Material Thermoplastic
Input/Output Discrete
Max Sensing Distance (mm) 20
Outputs PNP
Power Supply/Supply Voltage 10-30 V dc
Connection Cable
Quick Disconnect Type No QD
Operation Light Operate
Min Op. Temp. (°C) -20
Max Op. Temp. (°C) 55
Output response time (ms) 1
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Sensing Beam Wavelength 865
Delay at Power-up (ms) N/A
Repeatability (µs) 250
Number of Pins 3
NEMA Rating NEMA 3
IP Rating IP54
Max Op. Relative Humidity [%] 80% @ 50°C
Lens Material Acrylic
Adjustments N/A
Barrel Diameter (mm) N/A
Indicator LEDs
