    Barrow G1/4" 90 Degree Male to Female Triple Rotary Snake Adapter - Black (TSWT903-V1)

    • The Barrow G1/4" Matte Black Triple Rotary Serpentine-Style Adapter is perfect for tight liquid cooling loops.
    • This male to female G1/4 thread adapter is perfect for making a quick U-turn or sneaking around internal components that always seems to be right in the way.
    • With the 360° rotary swivel you no longer have to account for tubing kinks and oddly angled tubing.
    • Fitting size: Threaded
    • Fitting type: 90° Adaptor Fitting
    +
    +
    Overview
    Specs
    Reviews

    Any questions? Ask CelesteSM will help you find out quickly.

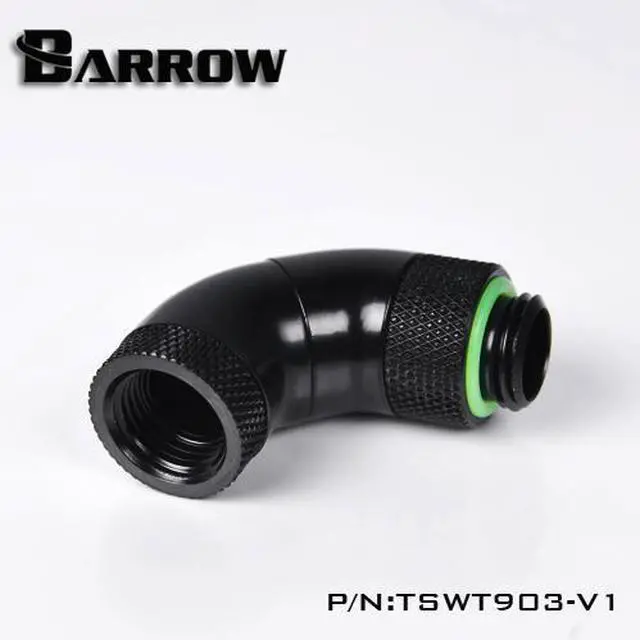

    The Barrow TSWT903-V1 is a 90° snake-style rotary adapter with a G1/4" male thread on one end and a G1/4" female thread on the other. It turns at three points, so you can shape the bend to fit around parts in a tight build. It is made of H59 brass and finished in black.

    Properties

    • Type: 90° snake-style rotary adapter, male to female
    • Thread: G1/4" male to G1/4" female
    • Ports: 2x G1/4"
    • Turning points: 3
    • Material: H59 brass, electroplated
    • Color: Black
    • Pieces in the pack: 1

    A bend you can shape

    Barrow makes this adapter for changing the connection direction in a water cooling loop where a straight run or a single elbow does not fit. Screw the male end into any G1/4" port, turn the segments until the female end points where your tube needs to go, and screw your tube fitting into the female end. Because the joints keep turning after the threads are tight, you can set the final shape last.

    Where it turns

    Barrow calls it a 3-way rotary adapter: it turns at three points. The two halves of the bend turn against each other, and the knurled collars at both ends turn as well. Barrow says the adapter gives 360° rotation.

    Brass with a double-protected finish

    Barrow uses H59 brass for the body and protects the surface with what it calls a double electroplating process, which it says gives a fine texture that is solid and durable.

    Non-slip diamond knurling

    The rotating collars have a diamond knurl pattern. Barrow says it gives a sure grip when you screw the adapter in by hand.

    Standard G1/4" connections

    Both ends use the standard G1/4" thread of PC water cooling, so the adapter works with blocks, radiators, reservoirs and fittings from other makers as well as Barrow's own. The male end is sealed by an O-ring.

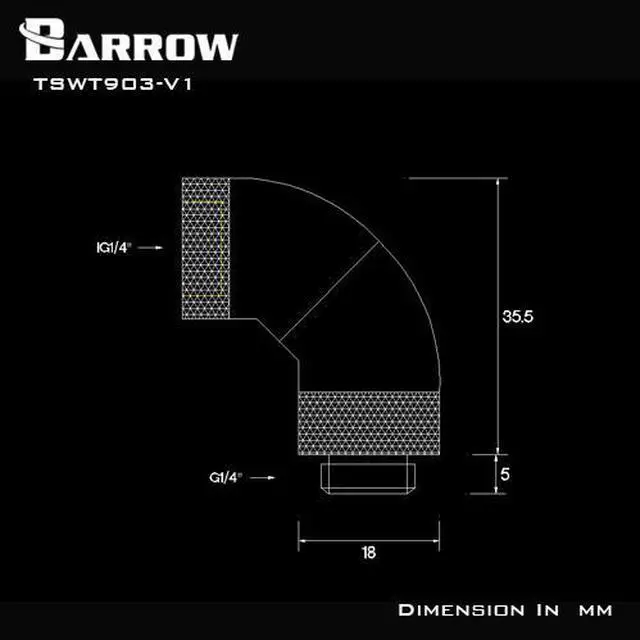

    Technical data

    • Model: TSWT903-V1
    • Type: 90° snake-style rotary adapter, male to female
    • Threads: G1/4" male | G1/4" female
    • Bend: 90°
    • Turning points: 3
    • Width: 33.4 mm
    • Height including male thread: 42.4 mm
    • Male-end collar height: 9 mm
    • Collar diameter: 18 mm
    • Male thread length: 5 mm
    • Material: H59 brass
    • Color: Black

    Notes

    • Barrow sells this adapter in black, white, shiny silver and gold. This listing is the black version.
    • Barrow notes that it may update the look or construction of the part without notice; the part you receive is the current version.

    In the box

    • 1x Barrow G1/4" 90 Degree Male to Female Triple Rotary Snake Adapter - Black
