Barrow G1/4" Thread 3/8" ID x 5/8" OD Compression Fitting - Silver (THKN-3/8-V4-Silver)
- This item is a compression fitting for use with water cooling products.
- Standard G1/4" thread with rubber o-ring allows it to screw securely into water cooling components with a tight leak proof seal.
- Compatible with 3/8"ID x 5/8"OD Tubing.
- Fitting type: Compression Fitting
- Color: Silver
Any questions? Ask CelesteSM will help you find out quickly.
The Barrow THKN-3/8-V4 is a compression fitting for soft tubing with a 3/8" (10 mm) inner and 5/8" (16 mm) outer diameter. It screws into any G1/4" port; the tube slides over the barb and the knurled compression ring screws down over it to hold the tube tight. It is machined from H59 brass and finished in shiny silver.
Properties
- Type: Compression fitting for soft tubing
- Thread: G1/4" male
- Tubing: 3/8" ID x 5/8" OD (10/16 mm)

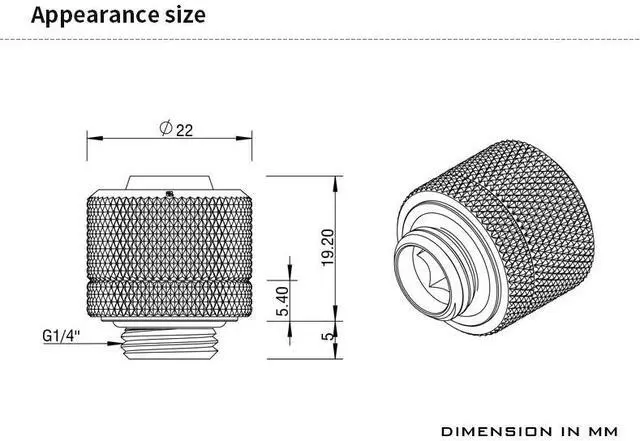

- Size: 22 mm diameter, 19.2 mm high without the thread
- Material: H59 brass, electroplated
- Color: Silver
- Pieces in the pack: 1
Holds the tube tight
A compression fitting has two parts: the base with the barb, which screws into the port, and a compression ring. Slide the ring over the tube, push the tube onto the barb, and screw the ring down onto the base. The ring presses the tube against the barb, so it cannot slip off, and the joint looks clean without a clamp.
Sized for 10/16 mm tubing
Barrow makes this fitting for thick-wall 3/8" soft tubing, that is 3/8" (10 mm) inside and 5/8" (16 mm) outside, one of the most common sizes in PC water cooling. Check both the inner and the outer size of your tube before ordering; the ring is sized for a 16 mm outer diameter.
Brass with a double-protected finish
Barrow uses H59 brass for the body and protects the surface with what it calls a double electroplating process, which it says gives a fine texture that is solid and durable.
Non-slip diamond knurling
The compression ring has a diamond knurl pattern. Barrow says it gives a sure grip when you tighten the ring by hand.
Standard G1/4" connection
The male thread is the standard G1/4" of PC water cooling and is sealed by an O-ring, so the fitting works with blocks, radiators, reservoirs and pumps from other makers as well as Barrow's own.
Technical data
- Model: THKN-3/8-V4
- Type: Soft tube compression fitting
- Thread: G1/4" male
- Tubing: 3/8" ID x 5/8" OD (10/16 mm)
- Diameter: 22 mm
- Height without thread: 19.2 mm
- Male thread length: 5 mm
- Material: H59 brass
- Color: Silver
Notes
- Barrow makes this fitting in black, white, shiny silver and gold. This listing is the shiny silver version.
- Barrow notes that it may update the look or construction of the part without notice; the part you receive is the current version.
In the box
- 1x Barrow G1/4" Thread 3/8" ID x 5/8" OD Compression Fitting - Silver
