    Barrow G1/4" Thread 3/8" ID x 1/2" OD 360 Degree Rotary Compression Fitting - Black, Brass (TXKN-3/8)

    • Black
    • Silver
    • Introducing the Barrow G1/4" Thread 3/8" ID x 1/2" OD 360 Degree Rotary Compression Fitting. Designed for water cooling enthusiasts, this high-quality compression fitting offers exceptional performance and versatility, making it an essential componen
    • Featuring a G1/4" thread and compatible with 3/8" inner diameter (ID) and 1/2" outer diameter (OD) tubing, this rotary compression fitting provides a secure and leak-free connection. The 360-degree rotary design adds flexibility, allowing you to easi
    • Not only does the Barrow G1/4" Thread 3/8" ID x 1/2" OD 360 Degree Rotary Compression Fitting deliver excellent functionality, but it also boasts a sleek and aesthetic design. The chrome-plated finish adds a touch of elegance to your system, while th
    +
    +
    Overview
    Specs
    Reviews

    Any questions? Ask CelesteSM will help you find out quickly.

    The Barrow TXKN-3/8 is a straight compression fitting for 3/8" ID x 1/2" OD (10/13 mm) soft tubing with a G1/4" male thread that turns through a full 360°. The rotary base lets the tube leave the fitting at any angle without twisting it, even after the fitting is screwed in tight. It is machined from H59 brass and finished in black.

    Properties

    • Type: Rotary compression fitting, straight
    • Thread: G1/4" male
    • Tube: 3/8" ID x 1/2" OD (10/13 mm) soft tubing
    • Rotation: 360°
    • Material: H59 brass, electroplated
    • Color: Black
    • Pieces in the pack: 1

    No more twisted tubing

    A normal compression fitting is fixed once it is screwed in, so the tube has to twist to follow the run. On this fitting the knurled base turns against the body through 360°, so the tube can be routed first and the fitting follows it.

    Compression nut for soft tubing

    Push the 3/8" ID x 1/2" OD tube over the barb and screw the knurled compression nut down over it to lock the tube in place.

    Brass with a double-protected finish

    Barrow uses H59 brass for the body and protects the surface with what it calls a double electroplating process, which it says gives a fine texture that is solid and durable.

    Standard G1/4" connections

    The male end uses the standard G1/4" thread of PC water cooling, so the fitting works with blocks, radiators, reservoirs and fittings from other makers as well as Barrow's own. It is sealed by an O-ring.

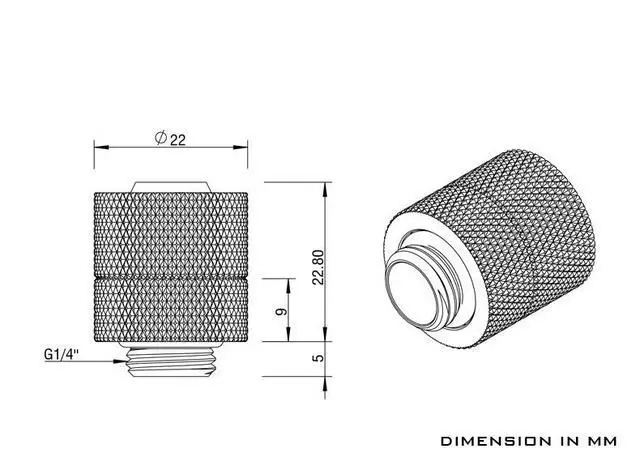

    Technical data

    • Model: TXKN-3/8
    • Type: Rotary compression fitting, straight
    • Thread: G1/4" male
    • Tube size: 3/8" ID x 1/2" OD (10/13 mm)
    • Possible rotation: 360°
    • Outside diameter: 22 mm
    • Height without male thread: 22.8 mm
    • Rotary base height: 9 mm
    • Male thread length: 5 mm
    • Material: H59 brass
    • Color: Black

    Notes

    • This fitting fits 3/8" ID x 1/2" OD (10/13 mm) soft tubing only. It does not fit rigid tube or soft tubing of other sizes.
    • Barrow lists this fitting as multicolor; its pictures show black and shiny silver. This listing is the black version.
    • Barrow notes that it may update the look or construction of the part without notice; the part you receive is the current version.

    In the box

    • 1x Barrow G1/4" Thread 3/8" ID x 1/2" OD 360 Degree Rotary Compression Fitting - Black
